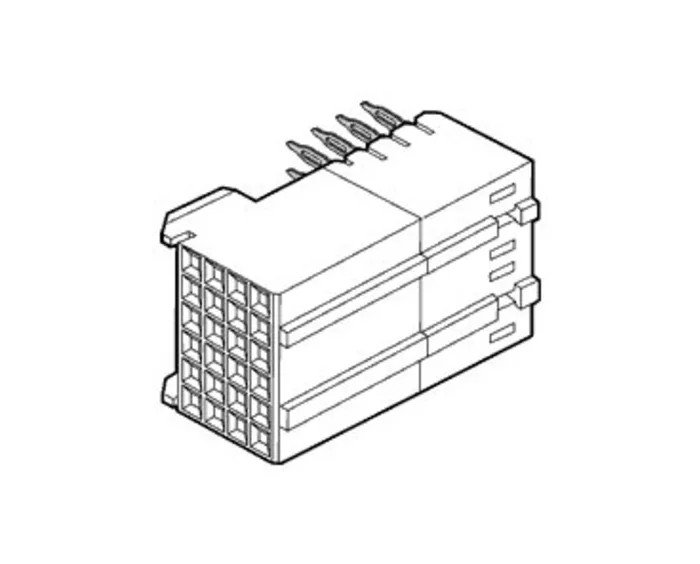

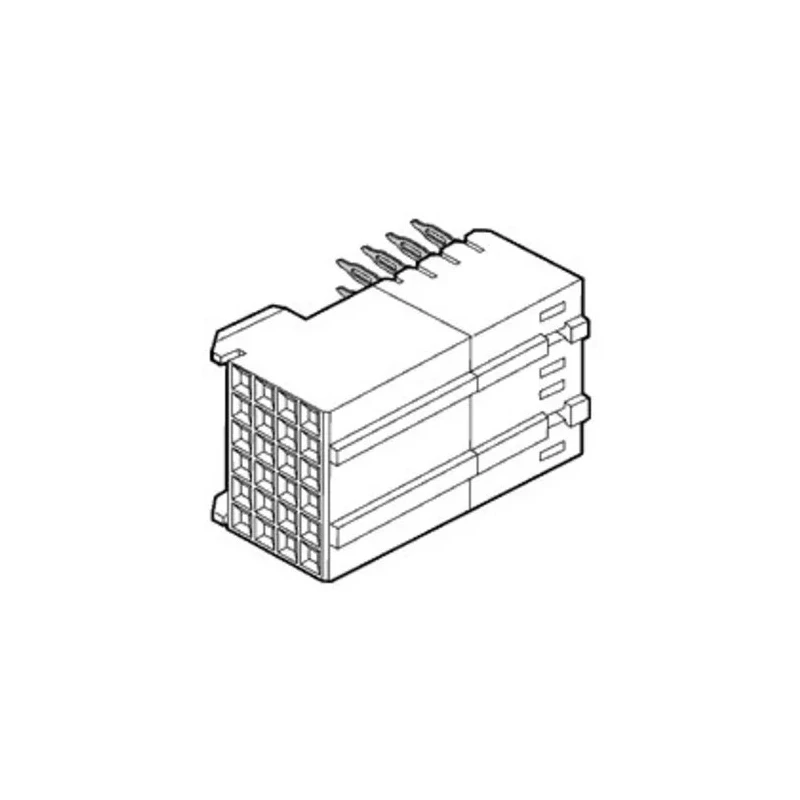

Amphenol Communications Solutions 2 mm Pitch Right Angle Female Receptacle Backplane Connector, 30 Contacts 89047-102LF

Amphenol Communications Solutions 89047-102LF is a precision-engineered right angle female receptacle backplane connector featuring a 2 mm pitch configuration. With 30 contacts arranged over 5 rows, this connector supports high signal density for advanced electronic and power applications.

The connector employs a liquid crystal polymer (LCP) housing, which offers exceptional mechanical strength and thermal stability up to 125°C, making it suitable for demanding industrial environments. The contacts are fabricated from copper alloy with gold plating, providing excellent electrical conductivity and protection against corrosion.

Designed for through hole PCB mounting with solder termination, the connector ensures robust mechanical retention and electrical connections. It supports a current rating of 1.5 amps and withstands voltage up to 1 kilovolt (kV), suitable for a variety of signal and power distribution applications.

The modular and scalable design of the 89047 series allows for configurations in 1, 2, 4, and 8 modules, offering flexibility to meet diverse design requirements. Specific features include varying pin lengths for first-mate, last-break capability, dual beam contact design for reliable engagement, and options for locating pegs to secure connector positioning on the PCB.

This connector series complies with stringent UL94 V-0 flammability rating, UL and CSA electrical approvals, and RoHS environmental standards, ensuring high reliability and regulatory compliance essential for commercial, industrial, telecommunications, and computing equipment.

Compact 2 mm pitch and right angle orientation optimize board space usage. Supports high signal density configurations with 30 female contacts in 5 rows. Gold-plated copper alloy contacts ensure durable and low-resistance connections.

Robust LCP housing withstands temperatures from -55°C to 125°C with flame retardance. Through-hole solder termination for secure attachment to printed circuit boards. Compliant with UL and CSA safety approvals and RoHS directives.

Ideal for modular backplane and rack connector systems in electronic components. Explore the diverse range of high-quality Backplane Connectors available on EnvMart for industrial and electronic system integration.
