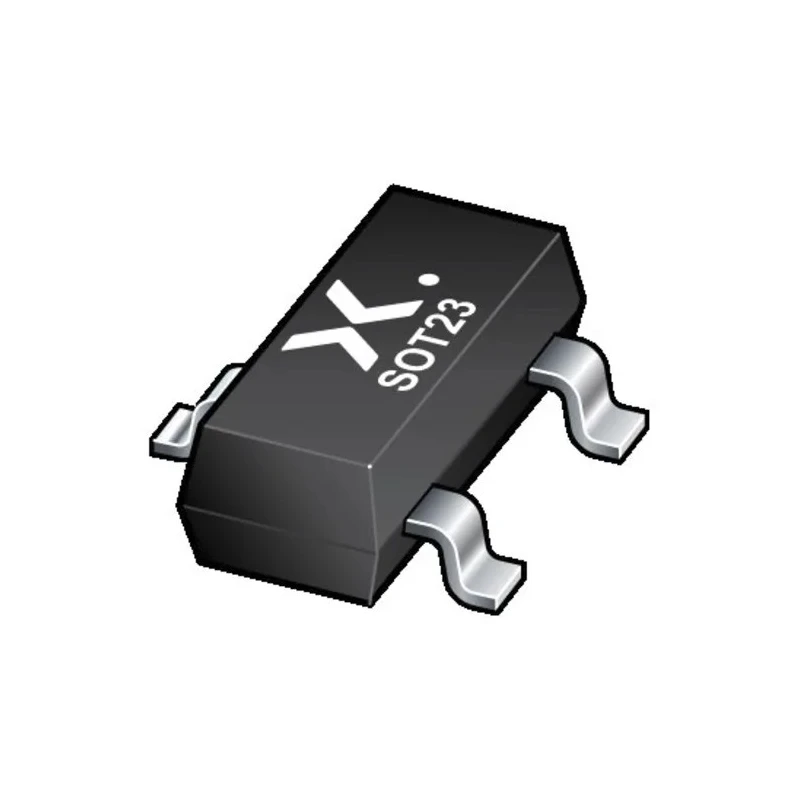

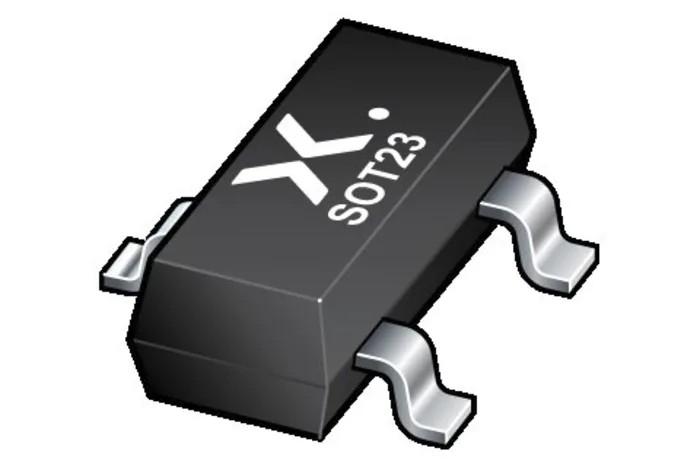

Nexperia Transistor 100 mA NPN 50 V 3-Pin SOT-23 PDTC114TT,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Transistor 100 mA NPN 50 V 3-Pin SOT-23 PDTC114TT,215

Name: Nexperia Transistor 100 mA NPN 50 V 3-Pin SOT-23 PDTC114TT,215
Brand: Nexperia
SKU: 155571
Price: 0.03 USD
Availability: InStock



Category Bipolar Transistor Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	PDTC114TT,215
Width	1.4mm
Mount Type	Surface
Series	PDTC114T
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	200
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	1MHz

Key Features

This transistor features built-in bias resistors, reducing component count and simplifying circuit design.
It supports a maximum collector current of 100 mA and maximum power dissipation of 250 mW.
The device operates reliably within a temperature range of -65°C to 150°C.
The low-profile SOT-23 package dimensions are 3 mm length, 1.4 mm width, and 1.1 mm height.
It offers a minimum DC current gain (hFE) of 200 and a maximum transition frequency of 1 MHz.
This transistor is RoHS compliant and meets the automotive standard AEC-Q101, ensuring quality and reliability.
It is ideally used for controlling IC inputs, switching loads, and digital system applications.

Product Description

Nexperia PDTC114TT,215 is a bipolar NPN transistor with a maximum collector current of 100 mA and a maximum collector-emitter voltage of 50 V, housed in a 3-pin SOT-23 surface-mount package. It is designed for compact, space-saving circuit applications requiring integrated bias resistors to reduce component count and simplify layout.

This transistor features a maximum power dissipation of 250 mW and a wide operating temperature range from -65°C to 150°C, suitable for demanding industrial and automotive environments. Its low profile (3 mm length, 1.4 mm width, 1.1 mm height) supports miniaturized electronic designs.

The device exhibits a minimum DC current gain of 200 and a transition frequency up to 1 MHz, providing effective switching and amplification in digital and analog circuits. It complies with RoHS and automotive standard AEC-Q101, ensuring environmental compliance and high reliability.

Common applications include digital systems, controlling integrated circuit inputs, and switching loads in industrial, automotive, and commercial electronics. The built-in bias resistors make it an efficient cost-saving solution, reducing pick and place costs while improving overall circuit performance.

Built-in bias resistors reduce component count and simplify circuit design. Maximum collector current of 100 mA and maximum power dissipation of 250 mW. Wide operating temperature range from -65°C to 150°C. Compact SOT-23 package suitable for surface mount assembly.

Minimum DC current gain of 200 and transition frequency up to 1 MHz. RoHS compliant and meets automotive standard AEC-Q101. Ideal for digital systems, IC input control, and load switching in industrial and automotive applications.

This transistor belongs to the PDTC114T series by Nexperia, manufactured in Malaysia. It is a reliable choice for engineers seeking efficient, compact bipolar transistors for diverse electronic applications.

Explore more Nexperia semiconductors and Bipolar Transistors on EnvMart for comprehensive electronic components solutions.
