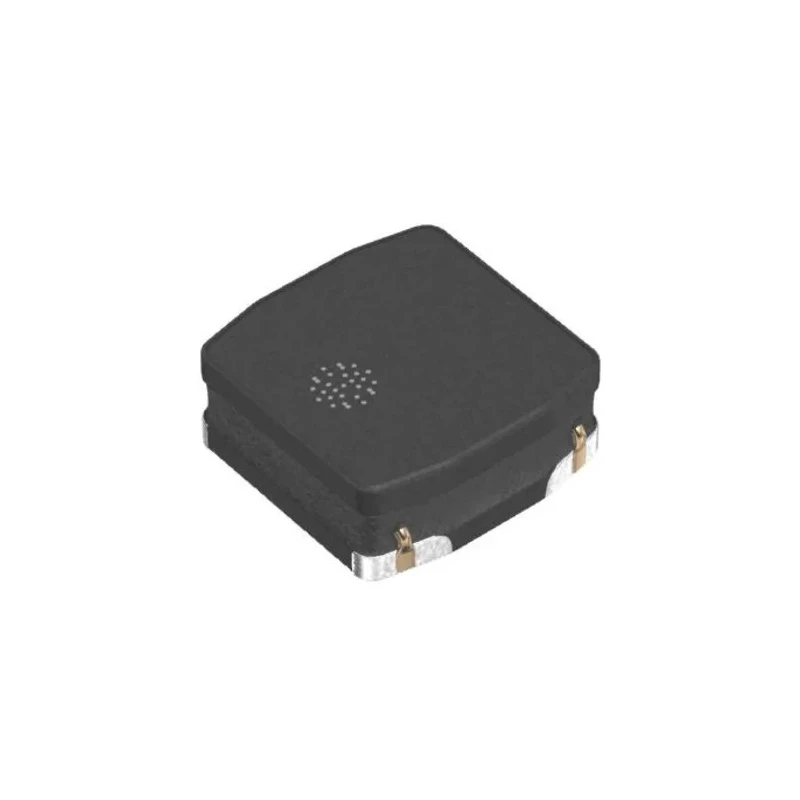

TDK Shielded Wirewound Surface Mount Inductor 2.2μH ±30/±20% 2.84A IDC Metal Core 3012 Package VLS3012HBX-2R2M

TDK VLS3012HBX-2R2M is a shielded wirewound Surface Mount Inductor designed with a metal core and magnetic shielding to optimize performance in power circuits requiring compact and reliable inductors. This model delivers an inductance of 2.2μH with tolerances of ±30/±20% and supports a maximum DC current of 2.84A.

The inductor is housed in a 3012 package measuring 3mm in length and depth, and 1.2mm in height, making it suitable for high-density mounting on circuit boards. It maintains a low DC resistance of 106mΩ, contributing to efficient current conduction and minimal power loss.

Operating reliably within a temperature range of -40°C to 105°C, this component complies with industry regulations, including RoHS, REACH SVHC-Free, Lead Free, and Halogen Free, underscoring its environmental compliance and safety standards.

Its surface mount termination style facilitates automated assembly in manufacturing processes, enhancing production efficiency.

Applications for this inductor include hard disk drives (HDD), solid-state drives (SSD), digital video cameras (DVC), digital still cameras (DSC), mobile display panels, smartphones, tablets, portable game devices, compact power supply modules, and similar electronic devices requiring stable power inductance with shielding.

Features a metal core with magnetic shielding for improved electromagnetic compatibility. Compact size suitable for high-density PCB assembly. Low DC resistance ensures efficient current handling. Wide operating temperature range supports diverse environmental conditions.

Certified environmentally compliant with RoHS and REACH standards. Surface mount design for streamlined manufacturing integration. Versatile applications in consumer electronics and power supply modules. Explore more TDK electronic components and inductors for your industrial and commercial applications on EnvMart.
