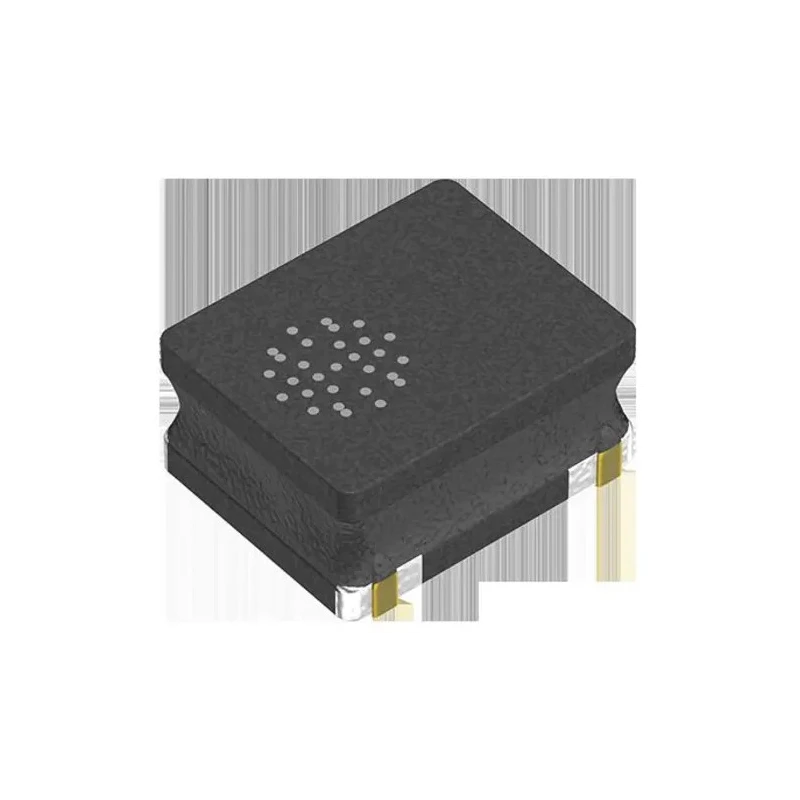

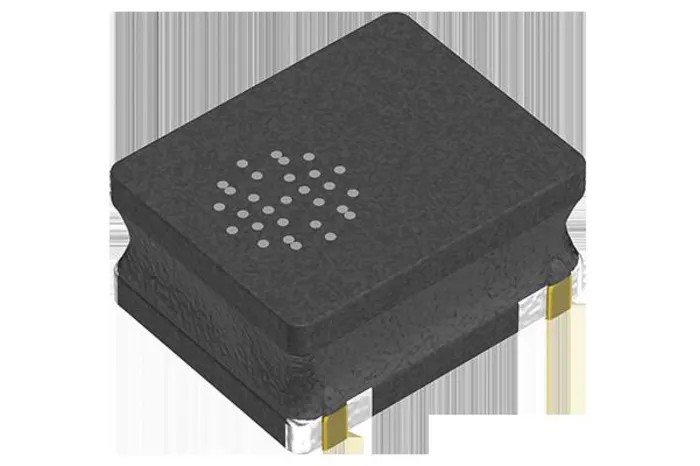

TDK Wirewound Surface Mount Inductor 1 μH ±20% 2.14 A Dc Current 201610 Package with Ferrite Core VLS201610CX-1R0M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 2mm |
| Model | VLS201610CX-1R0M-1 |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 201610 |
| Maximum DC Current | 2.14A |
| Maximum DC Resistance | 79mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Magnetic shield type wound inductor suitable for power circuits.
- Inductance of 1 μH with tolerance of ±20% for precision usage.
- Maximum DC current rating of 2.14 A ensures efficient current handling.
- Constructed with ferrite core material and wirewound inductor design.
- Compact 201610 package and surface mount termination style enable high-density PCB mounting.
- Wide operating temperature range from -40°C to 105°C.
- RoHS compliant meeting environmental standards for electronic components.
- Shielding provided for reduced electromagnetic interference.
Product Description
The TDK VLS201610CX-1R0M-1 is a precision wirewound surface mount inductor with a ferrite core, designed for power circuits requiring magnetic shielding and compact size. Featuring an inductance of 1 μH with ±20% tolerance, this component supports a maximum DC current of 2.14 A while maintaining a low DC resistance of 79 mΩ, which minimizes power loss and heat generation.
This inductor comes in a 201610 package with dimensions of 2 mm length, 1 mm height, and 1.6 mm depth, making it suitable for high-density mounting on modern printed circuit boards. The ferrite core combined with wirewound construction delivers high magnetic performance and stability across a wide temperature range from -40°C to 105°C.
Shielded design reduces electromagnetic interference, ensuring reliable operation in sensitive electronics. It is supplied in tape and reel packaging, facilitating efficient automated manufacturing processes in electronics assembly.
Applications for this inductor include use in smartphones, tablet terminals, hard disk drives, solid state drives, digital video cameras, digital still cameras, mobile display panels, portable game devices, and compact power supply modules. The product is fully RoHS compliant, supporting environmentally responsible manufacturing.
Magnetic shield type wirewound inductor suitable for power circuits requiring shielding. Compact size with 201610 package suitable for surface mounting. Inductance rated at 1 μH ±20% ensuring design precision. Maximum DC current rating of 2.14 A supports demanding power applications.
Ferrite core construction offers strong magnetic performance and stability. Wide temperature operating range from -40°C to 105°C ensures versatility. Low DC resistance of 79 mΩ minimizes power losses and heat. RoHS compliant for environmentally friendly applications.
Packaging in tape and reel suitable for automated assembly lines. Ideal for use in a variety of consumer electronics and compact power supplies. Explore more Surface Mount Inductors and electronic components on EnvMart for industrial, consumer electronics, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 1 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 2.14 A, which supports demanding power applications.
The dimensions of the 201610 package are 2 mm in length, 1 mm in height, and 1.6 mm in depth.
It operates within a temperature range of -40°C to 105°C, making it suitable for various applications.
The ferrite core material provides strong magnetic performance and stability, which is essential for efficient operation in power circuits.
This unit uses a surface mount termination style, allowing for high-density PCB mounting.
The maximum DC resistance of this inductor is 79 mΩ, which helps minimize power loss and heat generation.
It is supplied in tape and reel packaging, facilitating efficient automated manufacturing processes.
This inductor is suitable for applications in smartphones, tablet terminals, hard disk drives, and compact power supply modules.
Yes, this model is RoHS compliant, meeting environmental standards for electronic components.
This inductor belongs to the VLS-CX-1 series, which is designed for power circuits requiring magnetic shielding.
It features a wirewound construction, which contributes to its performance in power applications.
