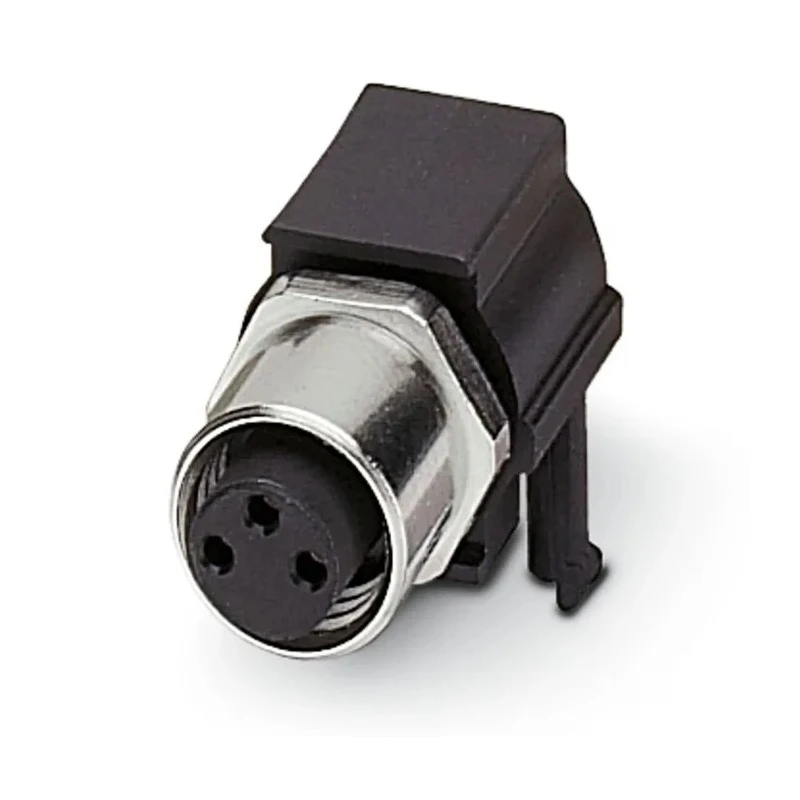

Phoenix Contact Circular Connector Panel Mount M8 Socket Female 3 Contacts 4A IP67 SACC Series 1524788
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60.0V |
| Brand | Phoenix Contact |
| Orientation | Right Angle |
| Current | 4A |
| Model | 1524788 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Polymer |
| Contact Material | Copper Tin |
| Series | SACC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | GOST, M8 connector IEC 61076-2-104, RoHS |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | M8 |
| Connector Size | M8 |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- The 3 contact socket facilitates secure connections in control and automation systems.
- Rated for 4A current and 60V voltage, ensuring reliable low power performance.
- Constructed with gold-plated copper tin contacts for excellent conductivity and corrosion resistance.
- Features polymer housing and NBR seal for dust-tight and waterproof operation (IP67 rated).
- Designed for panel mount installation with solder termination for secure contact mounting.
- Operates across a temperature range from -25°C to +85°C to withstand harsh environments.
- Complies with GOST, IEC 61076-2-104 standards and RoHS directive.
- Includes a right angle orientation and coding type A for system compatibility.
Product Description
Phoenix Contact 1524788 Circular Connector is a panel mount M8 socket female connector designed for robust industrial applications requiring secure and reliable electrical connections with 3 contacts rated at 4A and a voltage rating of 60V. Its polymer housing combined with an NBR seal provides excellent resistance against contaminants including dust and moisture, evidenced by its IP67 rating, making it suitable for harsh industrial settings.
The gold-plated copper tin contacts ensure high conductivity and superior resistance to corrosion, maintaining signal integrity in demanding environments. Installation is straightforward with solder termination pins and the connector mounts easily to panels using a locking nut for vibration-proof securing.
Operating effectively within -25°C to +85°C, this connector meets the thermal demands of many industrial, manufacturing, and automation systems. The right-angle orientation and coding A support a range of system configurations, enhancing flexibility for engineering designs.
Compliance with GOST and IEC 61076-2-104 standards along with RoHS conformity ensures this connector meets global quality and environmental regulations. The 3 contact socket enables multi-wire connection in control systems.
Current rating of 4A supports low-power industrial signal transmission. Gold plating on contacts delivers corrosion resistance for long service life. IP67 rating ensures dust tightness and water resistance for up to 1m submersion.
Robust polymer housing withstands mechanical stress and environmental exposure. Solder termination provides secure and vibration-proof electrical contacts. Wide operating temperature rating accommodates harsh industrial climates.
Right angle, panel mount design facilitates compact and efficient system assembly. Manufactured in Germany, guaranteeing quality and reliability.
This circular connector is ideal for industrial automation, manufacturing controls, and electrical systems requiring dependable panel mount connections with environmental protection.
Explore more products within Industrial Circular Connectors and Phoenix Contact offerings on EnvMart to find compatible components and accessories for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a current of 4A, making it suitable for low-power applications.
It has a voltage rating of 60V, ensuring it can handle various industrial applications effectively.
This connector has an IP67 rating, indicating it is dust-tight and can withstand water immersion up to 1 meter.
The contacts are made of gold-plated copper tin, which provides excellent conductivity and corrosion resistance.
It operates effectively within a temperature range of -25°C to +85°C, suitable for harsh environments.
This model features solder termination, providing secure and vibration-proof electrical contacts.
It is designed for panel mount installation, allowing for easy integration into various systems.
It complies with GOST, IEC 61076-2-104 standards, and is RoHS compliant, ensuring it meets global quality regulations.
The shell size for this connector is M8, which is standard for many industrial applications.
This model features a right angle orientation, enhancing flexibility for system configurations.
This connector has 3 contacts, enabling multi-wire connections in control systems.
The housing is made of polymer, providing durability and resistance to environmental exposure.
