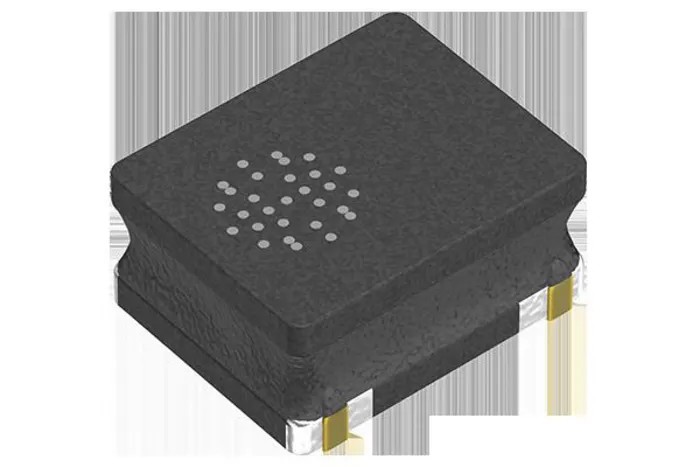

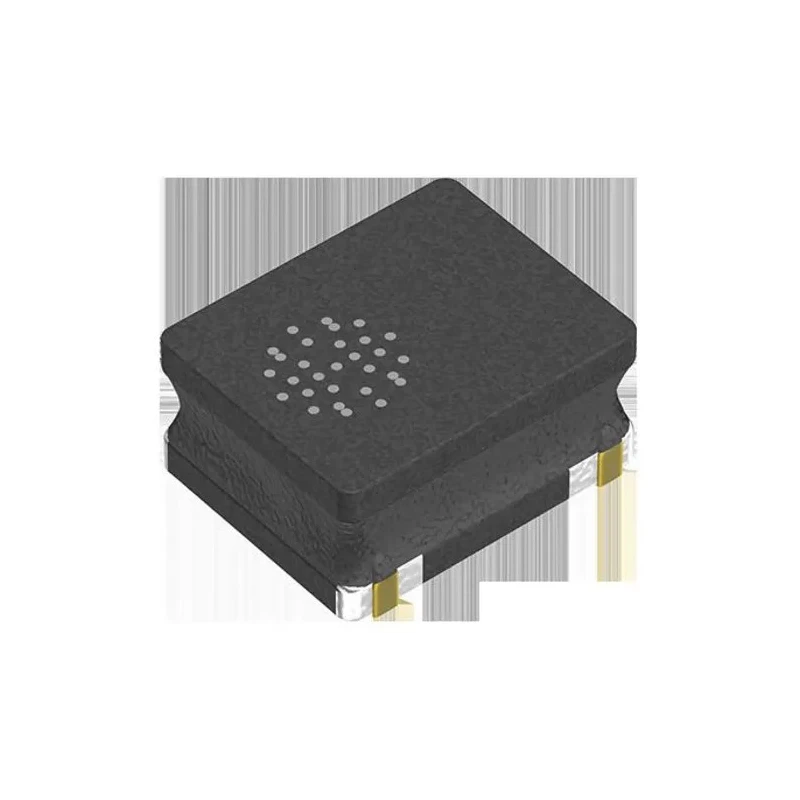

TDK Wirewound Shielded Surface Mount Inductor 10 μH ±20% 710 mA 201610 Ferrite Core VLS201610CX-100M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 2mm |
| Model | VLS201610CX-100M-1 |
| Depth | 1.6mm |
| Series | VLS-CX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | Halogen Free, Lead Free, REACH, SVHC-free, RoHS |
| Package/Case | 201610 |
| Maximum DC Current | 710mA |
| Maximum DC Resistance | 732mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Features high magnetic shield construction ideal for high-density mounting.
- Provides a maximum DC current rating of 710 mA for reliable performance.
- Compact 201610 package with dimensions 2 mm length, 1.6 mm depth, and 1 mm height.
- Constructed with ferrite core material and wirewound inductor design.
- Wide operating temperature range from -40°C to 105°C suitable for varied environments.
- Compliant with Halogen Free, Lead Free, REACH, SVHC-free, and RoHS standards.
- Optimized to achieve larger current capacity and lower DC resistance of 732 mΩ.
- Surface mount termination style facilitates easy PCB integration.
Product Description
TDK VLS201610CX-100M-1 is a wirewound shielded surface mount inductor featuring a ferrite core, offering an inductance of 10 μH with ±20% tolerance and a maximum DC current of 710 mA. Its compact 201610 package (2 mm length, 1.6 mm depth, 1 mm height) is designed for power circuits requiring high magnetic shielding and compatibility with high-density mounting.
This inductor employs a ferrite core magnetic material which optimizes current handling and reduces DC resistance to 732 mΩ. It supports an operating temperature range from -40°C up to 105°C, ensuring stable functionality in diverse industrial and electronic applications.
Compliant with industry environmental standards including Halogen Free, Lead Free, REACH, SVHC-free, and RoHS, the VLS201610CX-100M-1 is suitable for use in sensitive and eco-conscious manufacturing environments.
Its surface mount termination style enables efficient PCB assembly. The product is optimized for modern electronics such as smartphones, tablet terminals, hard disk drives (HDDs), solid-state drives (SSDs), digital video cameras (DVCs), digital still cameras (DSCs), mobile display panels, portable game devices, and compact power supply modules.
Features high magnetic shield construction ideal for high-density mounting. Provides a maximum DC current rating of 710 mA for reliable performance. Compact 201610 package with dimensions 2 mm length, 1.6 mm depth, and 1 mm height.
Constructed with ferrite core material and wirewound inductor design. Wide operating temperature range from -40°C to 105°C suitable for varied environments. Compliant with Halogen Free, Lead Free, REACH, SVHC-free, and RoHS standards.
Optimized to achieve larger current capacity and lower DC resistance of 732 mΩ. Surface mount termination style facilitates easy PCB integration. Applications include smartphones, tablets, HDDs, SSDs, portable devices, and compact power supply modules.
This surface mount inductor is an essential component in electronic component manufacturing, industrial automation, telecommunications, consumer electronics, and computing devices. It supports advanced power management in compact spaces.
Explore the complete range of Surface Mount Inductors at EnvMart for reliable electronic circuit designs and innovations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 710 mA.
The dimensions of the 201610 package are 2 mm in length, 1.6 mm in depth, and 1 mm in height.
It operates within a temperature range of -40°C to 105°C.
The inductor is constructed with a ferrite core and features a wirewound design.
It is compliant with Halogen Free, Lead Free, REACH, SVHC-free, and RoHS standards.
The maximum DC resistance is 732 mΩ.
This inductor features a surface mount termination style, facilitating easy PCB integration.
It is suitable for applications in smartphones, tablets, hard disk drives (HDDs), solid-state drives (SSDs), and portable devices.
This model belongs to the VLS-CX-1 series.
The high magnetic shield construction is designed for high-density mounting, optimizing performance in compact spaces.
The country of origin for this inductor is China.
