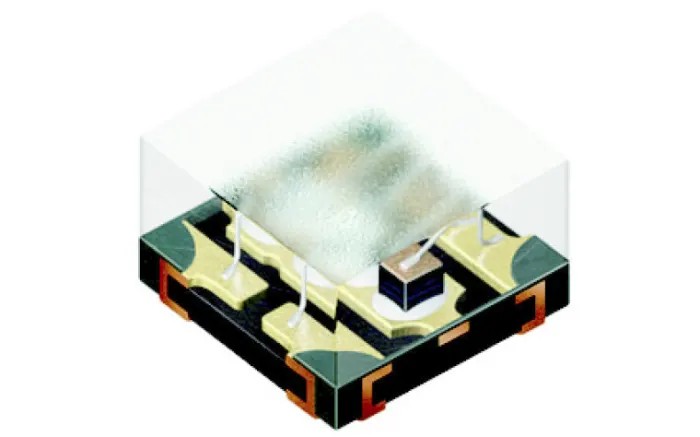

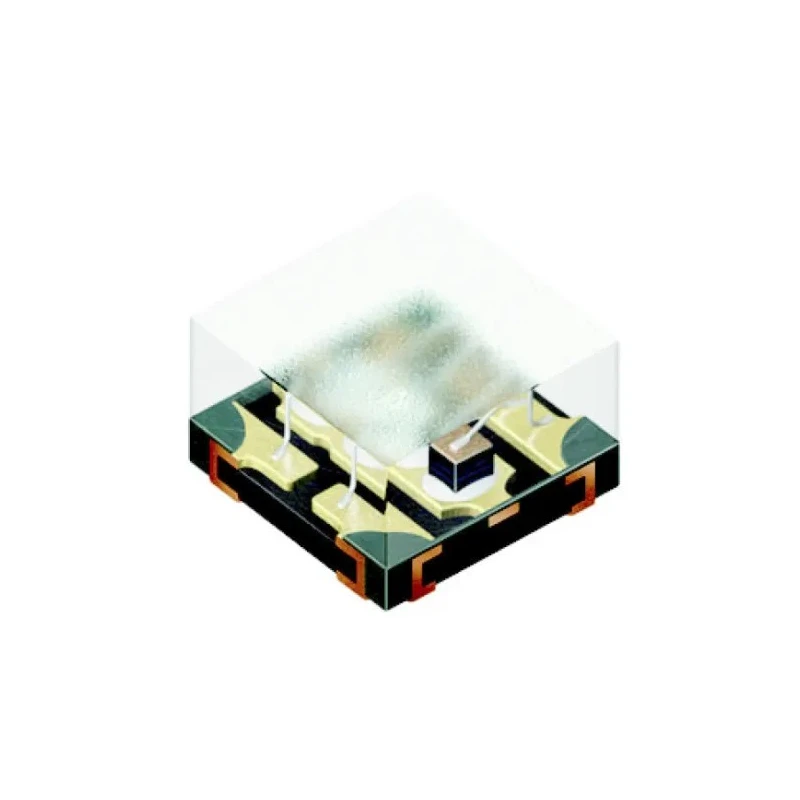

ams OSRAM 3.4 V Green, Red Surface Multi CHIP LED LRTBR48G-P9Q7-1+R7S5-26+NP-68
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ams OSRAM |
| Model | LRTBR48G-P9Q7-1+R7S5-26+NP-68 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Multi CHIP LED |
| Maximum forward current | 10mA |
| Viewing angle | 120 ° |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red |
| Dominant Wavelength | 475, 539, 627nm |
| Forward Voltage | 3.4V |
| Number of Pins | 2 |
| LED Luminosity | 140 (Red) mcd, 315 (True Green) mcd, 71 (Blue) mcd |
| Lens Dimensions | 1 x 0.65 x 1 mm |
| Lens Shape | Square |
Key Features
- This LED features a 120° viewing angle for wide light dispersion.
- The package includes a compact SMT epoxy resin design with square lens shape.
- LED luminosity is 140 mcd for red and 315 mcd for true green colors.
- The device is RoHS compliant and designed with 2 pins for surface mounting.
- The dominant wavelengths are 475 nm (blue), 539 nm (true green), and 627 nm (red).
- Technology uses InGaAlP for red and InGaN for green and blue chips.
- Designed specifically for full-color indoor video walls and advanced display uses.
- Soldering method is reflow compatible with JEDEC level 4 preconditioning.
Product Description
ams OSRAM LRTBR48G-P9Q7-1+R7S5-26+NP-68 is a high-performance surface mount Multi CHIP LED operating at 3.4 V with green and red colors. This compact device is engineered to meet the demanding requirements of full-color video walls, delivering vivid and uniform illumination.
The LED package features a SMT epoxy resin material with a clear square lens, measuring 1 mm in length, 1 mm in width, and 0.65 mm in height. It supports a wide viewing angle of 120°, ensuring broad visibility and excellent light distribution across display surfaces. The device incorporates 2 pins for reliable surface mounting.
The luminous intensities are 140 mcd for the red LED and 315 mcd for the true green LED, providing bright and consistent light output suitable for indoor video wall applications. The dominant wavelengths at 627 nm (red) and 539 nm (true green) correspond to vibrant color rendering.
The LED chips utilize InGaAlP (Indium Gallium Aluminum Phosphide) for red and InGaN (Indium Gallium Nitride) technology for green and blue, optimizing efficiency and color quality. The device is RoHS compliant, ensuring adherence to environmental standards. It supports reflow soldering methods and meets JEDEC level 4 preconditioning standards, making it suitable for modern automated assembly processes.
Applications include indoor full-color LED display modules in commercial, entertainment, and broadcast industries requiring high reliability and color accuracy. The product is manufactured in Taiwan, Province Of China, reflecting consistent electronic component quality.
This SMT LED package is epoxy resin encapsulated for durability. The 120° lambertian viewing angle provides extensive light coverage. Multi-chip design allows additive color mixing via common anode with independent chip driving.
Designed primarily for high-resolution narrow pitch video walls. Compatible with surface mount technology assembly processes. Explore more in the LED category for advanced displays and optoelectronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this model is 3.4 V.
The dominant wavelengths are 475 nm for blue, 539 nm for true green, and 627 nm for red.
It features a wide viewing angle of 120° for extensive light coverage.
The luminous intensity is 140 mcd for red and 315 mcd for true green.
This model has 2 pins for reliable surface mounting.
The LED is packaged in Tape & Reel format.
The LED chips utilize InGaAlP for red and InGaN for green and blue.
Yes, this LED is RoHS compliant, adhering to environmental standards.
The lens dimensions are 1 mm in length, 1 mm in width, and 0.65 mm in height.
It is designed specifically for full-color indoor video walls and advanced display applications.
The device supports reflow soldering methods and meets JEDEC level 4 preconditioning standards.
This LED is manufactured in Taiwan, Province Of China.
