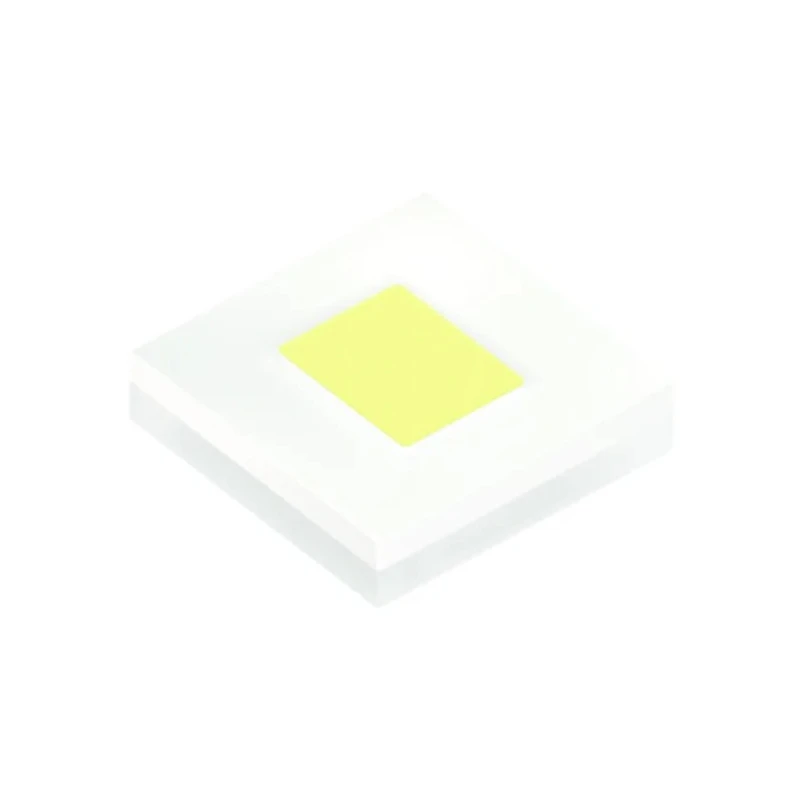

ams OSRAM 3.5 V White LED SMD Ceramic Surface Mount KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Model | KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KW CSLPM1.TG |
| Number Of Leds | 1 |
| Maximum forward current | 5000mA |
| Viewing angle | 120 ° |
| Package Type | SMD Ceramic |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Forward Voltage | 3.5V |
| Number of Pins | 2 |
| Lens Dimensions | 1.59 x 1.25 mm |
| LED Luminous Flux | 400 to 630 lm |
| Chip technology UX | 3 |
Key Features
- This LED features a high luminous flux range from 400 to 630 lm.
- The LED has a 120° viewing angle with a Lambertian emission pattern.
- Its package type is a white molded SMD ceramic with tape and reel packaging.
- Designed for surface mount applications with 2 pins for mounting.
- Maximum forward current rating is 5000 mA to support high-power usage.
- Features excellent corrosion robustness and meets RoHS compliance standards.
- Equipped with AESD 8 kV protection according to ANSI/ESDA/JEDEC JS-001 standards.
- Suitable for stage lighting and other high-brightness lighting applications.
Product Description
The ams OSRAM KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5 is a high-quality white LED designed with an SMD ceramic surface mount package, delivering a forward voltage of 3.5 V. This LED utilizes OSRAM's innovative OSTAR® projection compact light source technology combined with an isolated heat sink, enhancing heat dissipation for increased light output and reliability. The advanced chip technology UX:3 provides high luminous efficacy with a flux ranging between 400 and 630 lumens.
Featuring a wide 120° typical radiation angle with a Lambertian emitter pattern, this LED is ideal for applications demanding broad light diffusion such as stage lighting and other commercial lighting solutions. Its tape and reel packaging format allows efficient automated assembly in manufacturing processes. The device comprises two pins for reliable surface mount attachment ensuring robustness in installations.
Designed with corrosion robustness Class 3 and electrostatic discharge protection at 8 kV AESD (ANSI/ESDA/JEDEC JS-001 HB Model Class 3B), this LED meets stringent reliability and safety standards. The compact lens dimension of 1.59 x 1.25 mm and single LED configuration allows for flexible integration in electronic components and advanced lighting modules.
High luminous flux output between 400 to 630 lumens for bright white light. Advanced UX:3 chip technology for superior performance and efficiency. Wide 120° viewing angle with uniform light distribution. Robust white SMD ceramic package ensuring thermal management and durability.
Maximum forward current rating of 5000 mA for high power applications. Adheres to RoHS standards and corrosion class 3 for extended life. Equipped with AESD 8 kV protection to prevent ESD damage. Tape & reel packaging facilitates automated manufacturing installation.
Compact lens size (1.59 x 1.25 mm) suitable for precise mounting.
This LED component is widely used in industrial, electronic, commercial, and stage lighting applications where reliable, high-output white light is essential. The ams OSRAM KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5 ensures enhanced heat dissipation and performance consistency, making it an excellent choice for complex lighting designs and high-efficiency LED modules.
Explore the full range of ams OSRAM LEDs and components on EnvMart to meet diverse electronics manufacturing and lighting needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous flux range of this LED is between 400 to 630 lumens.
The maximum forward current rating for this model is 5000 mA.
This LED has a viewing angle of 120°.
It comes in tape and reel packaging, suitable for automated assembly.
The forward voltage of this LED is 3.5 V.
The lens dimensions are 1.59 x 1.25 mm.
This LED has 2 pins for mounting.
This model is designed for surface mount applications.
This LED complies with RoHS standards and has corrosion robustness Class 3.
This LED utilizes advanced UX:3 chip technology for high luminous efficacy.
It is suitable for stage lighting and other high-brightness lighting applications.
It is equipped with AESD 8 kV protection according to ANSI/ESDA/JEDEC JS-001 standards.
