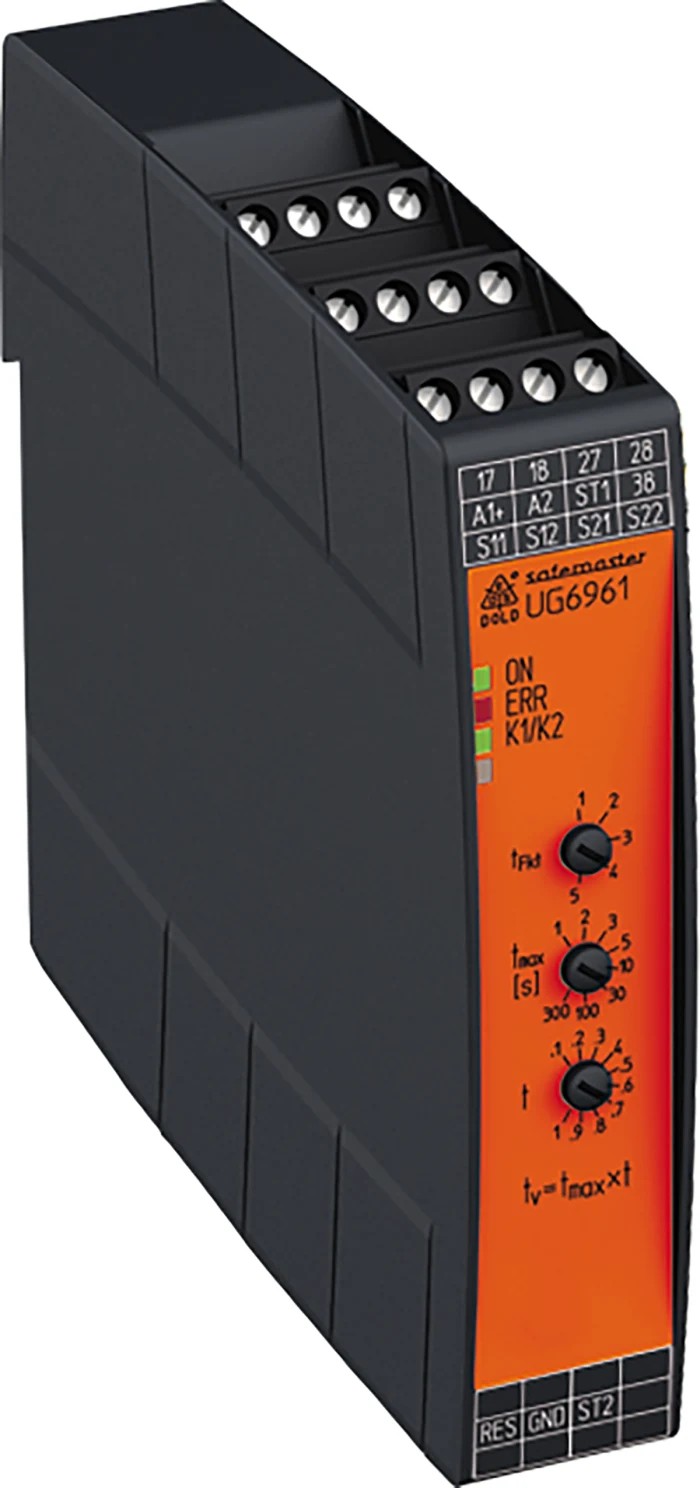

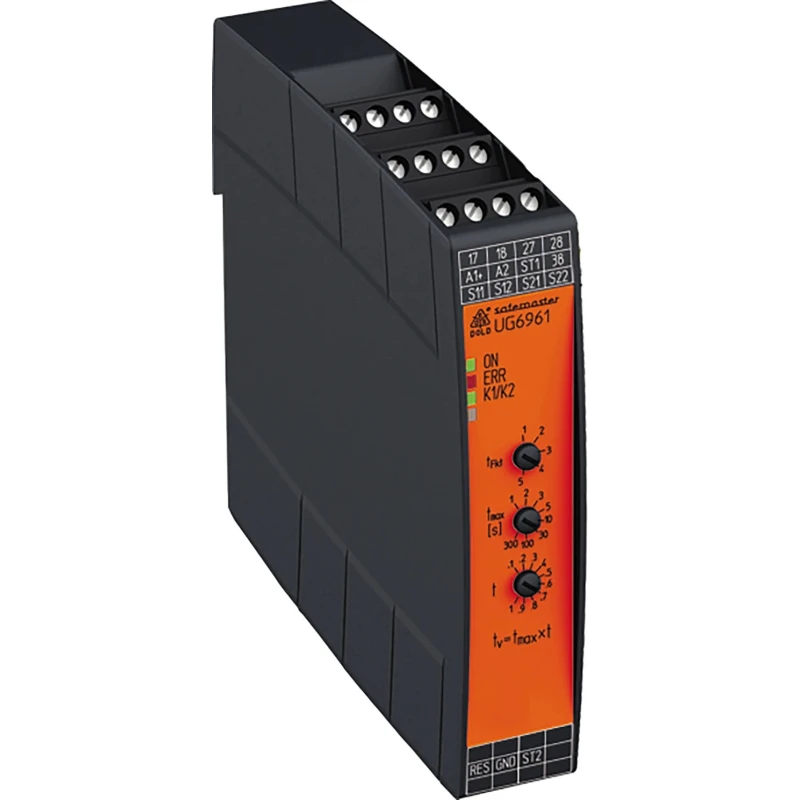

Dold DIN Rail Timer Relay 2-Contact 24 V dc 300 s 5-Function DPST Switch Configuration UG6961
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Function | Stillson Pipe |
| Length | 22.5mm |
| Model | UG6961 |
| IP Rating | IP20, IP40 |
| Mode | Continuous Operation |
| Width | 120.3mm |
| Mount Type | DIN Rail |
| Series | UG6961 |
| Maximum Operating Temperature | +55°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Time Range | 300 s |
| Terminal type | Screw |
| Number of Contacts | 2 |
| Number of Timer Functions | 5 |
| Switching Voltage | 230, 24V ac |
| Supply DC Voltage | 24 V dc |
Key Features
- Designed for DIN rail mounting with screw terminals.
- Time range programmable up to 300 seconds with continuous operation mode.
- Dual changeover contacts ensure reliable DPST switching.
- Wide operating temperature range from -25°C to +55°C.
- Complies with international standards including IEC, EN, and UL series.
- IP20 and IP40 rated for protection against solid objects.
- Compact dimensions with 22.5 mm length and 120.3 mm width.
- Features LED indicators for auxiliary voltage and output status.
Product Description
Dold UG6961 DIN Rail Timer Relay is a high-quality electrical component designed for industrial automation and control systems. It features a 2-contact DPST switch configuration operating at 24 V dc with a programmable time range of up to 300 seconds across five distinct timer functions, providing versatile timing solutions for complex control tasks.
This timer relay mounts easily on standard DIN rails, utilizing secure screw terminals for reliable electrical connections. The device supports continuous operation and includes dual changeover contacts enabling dual pole single throw switching for flexible application needs.
The unit is engineered for robust industrial environments, with an operating temperature range from -25°C to +55°C and IP20/IP40 ingress protection ratings, ensuring durability against dust and limited moisture exposure. Compliance with numerous international standards such as EN 50005, IEC/EN 60529, UL508, and more demonstrate high safety and performance benchmarks.
Additional features include LED status indicators for auxiliary voltage presence, measuring input activity, and output relay states, along with options for sensor input monitoring with protection. The compact design measures 22.5 mm in length and 120.3 mm in width, allowing for efficient panel space usage.
Manufactured in Germany, this Timer Relay is ideal for use in electrical automation, manufacturing control panels, machinery operations, HVAC systems, and other commercial or industrial installations requiring precise time-delayed switching functions.
Designed for DIN rail mounting with screw terminals. Programmable 300 second time range with 5 timer functions. DPST switch configuration with dual changeover contacts. Wide operating temperature range between -25°C and +55°C.
LED indicators for voltage and output status monitoring. IP20 and IP40 protection ratings for industrial use. Compact dimensions enable easy panel integration. Meets multiple international safety and performance standards.
Product of Germany, ensuring premium quality and reliability. Explore the Electronics & Electricals category on EnvMart for more advanced relays and timer solutions from top manufacturers like Dold.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum programmable time range for this model is 300 seconds.
This timer relay features a dual pole single throw (DPST) switch configuration with two contacts.
The compact design of this unit measures 22.5 mm in length and 120.3 mm in width.
It operates within a temperature range of -25°C to +55°C.
This timer relay utilizes screw terminals for secure electrical connections.
Yes, it is designed for easy mounting on standard DIN rails.
The unit has IP20 and IP40 protection ratings against solid objects and limited moisture exposure.
This model offers five distinct timer functions for versatile timing solutions.
It operates on a supply voltage of 24 V dc.
It complies with several international standards including IEC, EN, and UL series.
This unit includes LED indicators for monitoring auxiliary voltage presence and output relay states.
This timer relay is manufactured in Germany.
