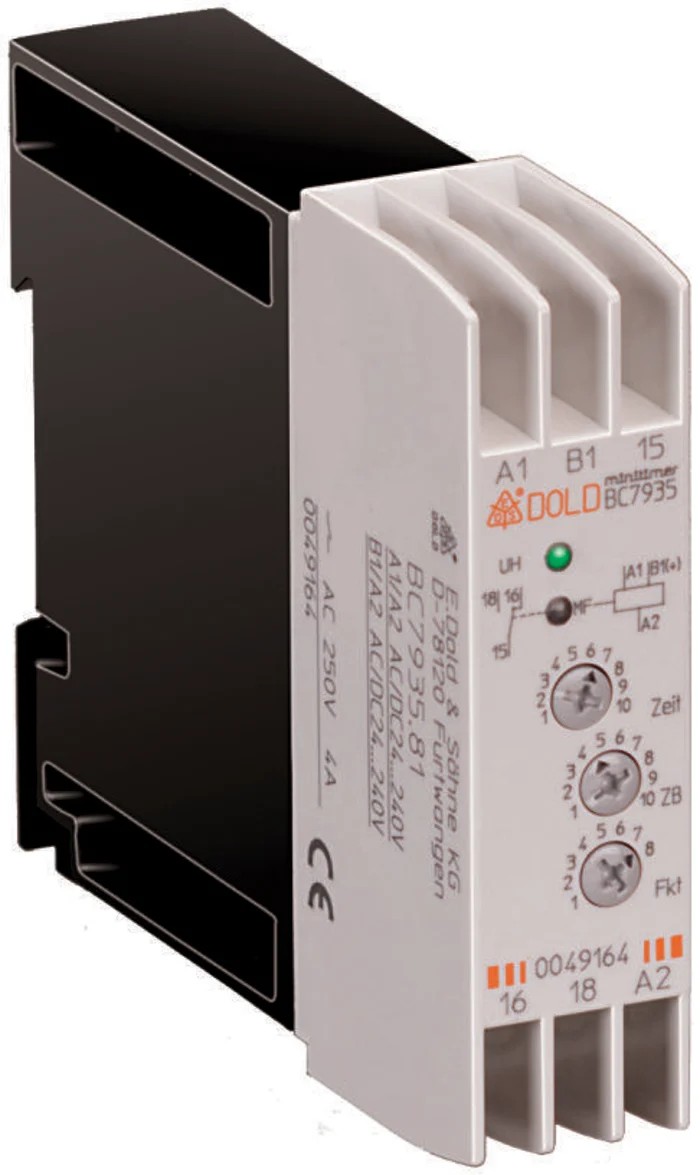

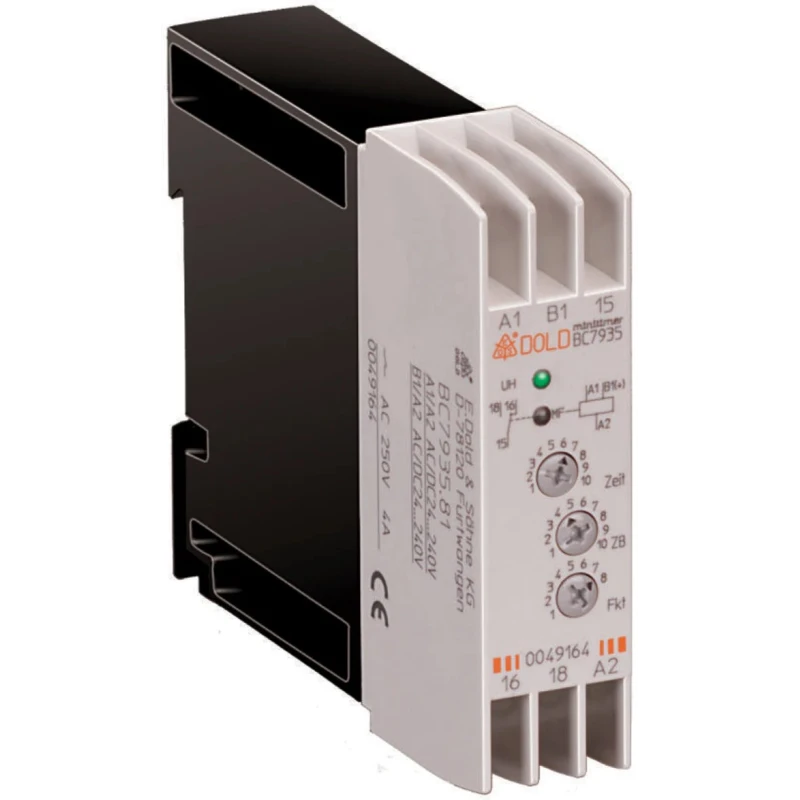

Dold BC7935N Series Multifunction DIN Rail Timer Relay 1-Contact SPDT 240V AC 0.5 to 10 s BC7935N.81 AC/DC24-240V 0.05S-300H

Free Delivery in India | Lowest Global Shipping Charges

Dold BC7935N Series Multifunction DIN Rail Timer Relay 1-Contact SPDT 240V AC 0.5 to 10 s BC7935N.81 AC/DC24-240V 0.05S-300H

Name: Dold BC7935N Series Multifunction DIN Rail Timer Relay 1-Contact SPDT 240V AC 0.5 to 10 s BC7935N.81 AC/DC24-240V 0.05S-300H
Brand: Dold
SKU: 119701
Price: 178.84 USD
Availability: InStock



Category Timer Relay Brand Dold Condition New

Specifications

Country of Origin	Germany
Brand	Dold
Height	84mm
Function	Offset Double Ring End
Length	84mm
Model	BC7935N.81 AC/DC24-240V 0.05S-300H
IP Rating	IP40
Mode	Multifunction
Width	22.5mm
Mount Type	DIN Rail
Series	BC7935N
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	-20°C
Time Range	0.5 → 10 s
Terminal type	Screw
Standards/Approvals	CE
Number of Contacts	1
Switching Voltage	230V
Contact Current	3A
Timing Adjustment	Screwdriver Slot
Supply AC Voltage	240V ac
3 LED indicators	voltage supply, contact position, flashing indicator for time lapse

Key Features

Multi-voltage input range from 24 to 240 Vac/Vdc supports versatile industrial applications.
Offers eight selectable timing functions including delay, pulse, and timed modes for flexible control.
Compact DIN rail mount design with dimensions 84mm length, 22.5mm width, and 84mm height.
Includes three LED indicators for voltage supply, contact position, and time lapse monitoring.
Supports contact current rating of 3A with switching voltage up to 230V and SPDT contact configuration.
Operating temperature ranges from -20°C to 60°C suitable for harsh environments.
Terminal type is screw for secure installation.
Complies with CE standards and manufactured in Germany, ensuring high quality and safety.

Product Description

Dold BC7935N.81 AC/DC24-240V 0.05S-300H series multifunction DIN rail timer relay is designed for precise timing control in industrial automation, electrical, and HVAC systems. It features a single SPDT contact and supports a wide multi-voltage input ranging from 24 to 240 Vac or Vdc, allowing compatibility with various power sources.

The timer relay offers an adjustable time range of 0.05 seconds up to 300 hours, with 10 selectable time ranges, providing versatile timing options for different automation needs. The timing adjustment is facilitated through a screwdriver slot, making fine-tuning straightforward.

Equipped with eight configurable functions such as response delay, fallback delay, pulse on/off, and timed operations, it enables complex control schemes in industrial equipment. The relay includes three LED indicators that display voltage supply status, contact position, and a flashing time lapse indicator for real-time operation monitoring.

Designed for DIN rail mounting, the compact form factor measures 84mm x 22.5mm x 84mm, ensuring easy integration into control panels. The terminal connections use screw type terminals for secure wiring. The SPDT contact supports a switching voltage of 230V and a contact current of 3A, suitable for switching moderate loads.

The device operates reliably within an ambient temperature range of -20°C to 60°C and has an IP40 rating, protecting against solid particles. It fulfills CE safety requirements and is manufactured in Germany, indicating robust standards and quality assurance.

This timer relay is ideal for use in industrial automation systems, manufacturing processes, electrical equipment, HVAC control, and process control applications requiring precise and multifunctional timing control.

Multi-voltage input from 24 to 240 Vac/Vdc for flexible applications. Multiple timing functions for response, fallback, pulse, and timed operations. Compact DIN rail mount design with secure screw terminals. Three LED indicators facilitate operation monitoring.

CE certified and German made for high reliability and quality. Discover more industrial control components and Timer Relays at EnvMart for reliable automation solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It supports a multi-voltage input range from 24 to 240 Vac/Vdc, making it versatile for various industrial applications.

This model has a compact design with dimensions of 84mm in length, 22.5mm in width, and 84mm in height.

The relay supports a maximum switching voltage of 230V and a contact current rating of 3A.

It offers eight selectable timing functions, including delay, pulse, and timed modes for flexible control.

The timer relay operates reliably within an ambient temperature range of -20°C to 60°C.

Timing adjustment is facilitated through a screwdriver slot, allowing for straightforward fine-tuning.

It is designed for DIN rail mounting, ensuring easy integration into control panels.

The timer relay features screw type terminals for secure wiring connections.

It has an IP40 rating, which protects against solid particles, making it suitable for various environments.

Yes, it complies with CE standards, ensuring safety and quality assurance.

It is ideal for use in industrial automation systems, electrical equipment, HVAC control, and process control applications requiring precise timing control.

It includes three LED indicators that display the voltage supply status, contact position, and a flashing time lapse indicator for real-time operation monitoring.
