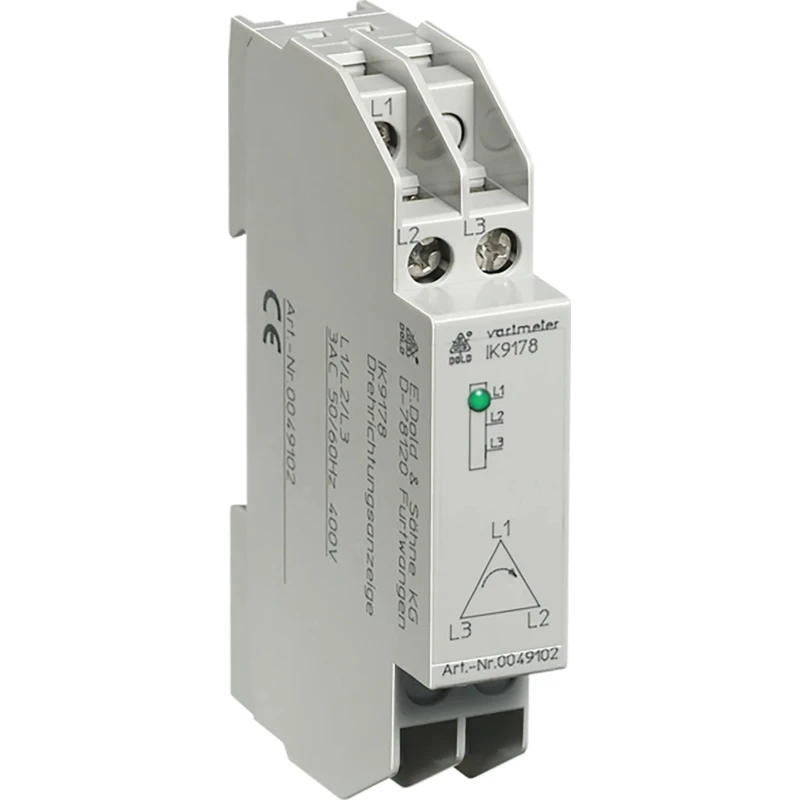

Dold 3 Phase Monitoring Relay 0.8 to 1.1 UN Monitor Range 400V AC DIN Rail Mount IK9178 3AC50/60Hz 400V

Free Delivery in India | Lowest Global Shipping Charges

Dold 3 Phase Monitoring Relay 0.8 to 1.1 UN Monitor Range 400V AC DIN Rail Mount IK9178 3AC50/60Hz 400V

Name: Dold 3 Phase Monitoring Relay 0.8 to 1.1 UN Monitor Range 400V AC DIN Rail Mount IK9178 3AC50/60Hz 400V
Brand: Dold
SKU: 166645
Price: 101.29 USD
Availability: InStock



Category Monitoring Relay Brand Dold Condition New

Specifications

Country of Origin	Germany
Brand	Dold
Height	90mm
Length	59mm
Model	IK9178 3AC50/60Hz 400V
IP Rating	IP20, IP40
Width	17.5mm
Mount Type	DIN Rail
Series	IK 9178
Maximum Operating Temperature	60°C
Minimum Operating Temperature	+60°C
Electrical Phase	3
Contact Current	3A
Supply AC Voltage	400V ac

Key Features

Monitors three-phase systems ensuring correct phase sequence and rotation direction.
Supports supply voltage of 400V AC for industrial applications.
Compact DIN rail mounting with a slim 17.5mm width.
Equipped with LED display indicating clockwise rotation.
Operates reliably from -60°C to +60°C temperature range.
Contact current rating of 3A suitable for control circuits.
Meets multiple industrial standards including IEC, EN, UL, and VDE certifications.
Durable orange housing compliant with DIN 43 880 standard.

Product Description

Dold IK9178 3AC50/60Hz 400V monitoring relay is a high precision device for monitoring three-phase electrical systems. Suitable for industrial and automation applications, it monitors direction of rotation and phase sequence within the voltage range of 0.8 to 1.1 UN at 400V AC supply. This relay mounts easily on a DIN rail and has a compact design with a width of 17.5 mm to fit in control panels.

The device includes an LED indicator that lights up when a clockwise rotation field is detected, assisting with quick diagnostics and safety checks. It can handle a contact current of 3A, making it reliable for control purposes in manufacturing, electrical substations, and HVAC systems. Operating temperature ranges from -60°C to +60°C ensure stable operation under harsh environmental conditions.

Constructed to meet rigorous standards such as IEC 60664-1, IEC/EN 61000 series, UL 94 V0 flammability, and DIN 46228, the IK9178 series guarantees performance and safety compliance. Its robust orange housing and DIN rail mounting conform to DIN 43 880, securing the relay firmly within industrial racks.

Monitors three-phase systems for phase sequence and rotation direction. Voltage monitoring range from 0.8 to 1.1 UN under 400V AC supply. DIN rail mount for simple integration in control panels. LED display for visual indication of clockwise rotation condition.

Contact current rated at 3A for control applications. Wide operating temperature range from -60°C to +60°C. Compliance with multiple IEC, EN, and UL standards. Durable orange housing manufactured to DIN 43 880 standard.

This monitoring relay is ideal for industrial, automation, safety, and electrical control applications where reliable three-phase system monitoring is critical. It supports preventive maintenance and protects equipment from phase failure or incorrect rotation.
