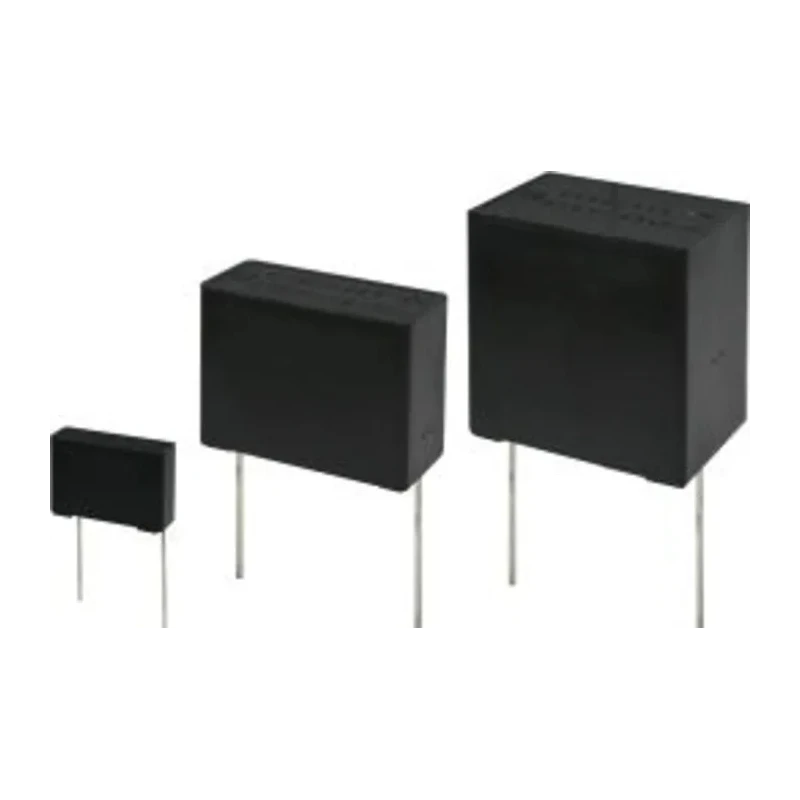

Panasonic ECQUA Film Capacitor X2, ±20%, 100 nF, 275V AC, Through Hole Mount ECQUAAF104SA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 12mm |
| Length | 17.5mm |
| Model | ECQUAAF104SA |
| Packaging | Bag |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±20 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Dissipation Factor | 0.1% |
| Lead Length | 4mm |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| High humidity resistance (THB test | 85 °C, 85 %, 240 V.AC, 1000 h ) |
Key Features
- Designed for interference suppression in automotive applications.
- Operates reliably from -40°C up to 110°C.
- 15mm lead pitch and 4mm lead length for secure solder mounting.
- Constructed with flame-retardant plastic case and non-combustible resin.
- Complies with automotive standard AEC-Q200 and safety standards CSA, EN, UL 60384-14.
- Highly resistant to humidity and thermal shock, suitable for harsh environments.
- Lead diameter is 0.6mm ensuring robustness in connections.
- Dissipation factor is low at 0.1%, enhancing performance in AC circuits.
Product Description
Panasonic ECQUAAF104SA Film Capacitor X2 is a high safety, high humidity resistant capacitor designed for automotive and industrial interference suppression applications. With a capacitance of 100 nF and rated AC voltage of 275V, this capacitor is constructed using flame-retardant plastic case and non-combustible resin ensuring reliable performance and safety.
This component features a ±20% tolerance and is mounted through hole with a 15mm lead pitch enabling stable connections. It operates efficiently across a temperature range from -40°C to 110°C, suitable for demanding environmental conditions, tested for thermal shock resistance over 1000 cycles.
Certified to automotive standard AEC-Q200 and meeting CSA, EN, UL safety standards, it assures quality compliance. The capacitor's design supports high humidity resistance withstanding 85°C and 85% humidity for extended durations, as well as excellent dissipation factor at 0.1% minimizing energy loss.
The 0.6mm diameter solder terminals and 4mm lead length facilitate easy and secure PCB assembly. Its compact dimensions of 17.5mm length, 12mm height, and 5mm width allow integration in compact electronic systems.
This capacitor is ideal for automotive interference suppression as well as other industrial electronic component applications where reliability, safety, and performance are critical. It is supplied in a bag packaging format, suitable for volume assembly processes.
Designed for interference suppression in automotive applications. Operates reliably from -40°C up to 110°C. 15mm lead pitch and 4mm lead length for secure solder mounting. Constructed with flame-retardant plastic case and non-combustible resin.
Complies with automotive standard AEC-Q200 and safety standards CSA, EN, UL 60384-14. Highly resistant to humidity and thermal shock, suitable for harsh environments. Lead diameter is 0.6mm ensuring robustness in connections.
Dissipation factor is low at 0.1%, enhancing performance in AC circuits. Explore more Film Capacitors and electronic components at EnvMart for industrial and automotive use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100 nF.
It has a rated AC voltage of 275V.
This unit operates reliably within a temperature range from -40°C to 110°C.
The tolerance level is ±20%.
The dimensions are 17.5mm in length, 12mm in height, and 5mm in width.
The lead pitch is 15mm and the lead length is 4mm.
It uses through hole mounting.
It is constructed with a flame-retardant plastic case and non-combustible resin.
It complies with the automotive standard AEC-Q200.
The dissipation factor is low at 0.1%.
Yes, it is highly resistant to humidity, tested at 85°C and 85% humidity for 1000 hours.
It is supplied in a bag packaging format, suitable for volume assembly processes.
