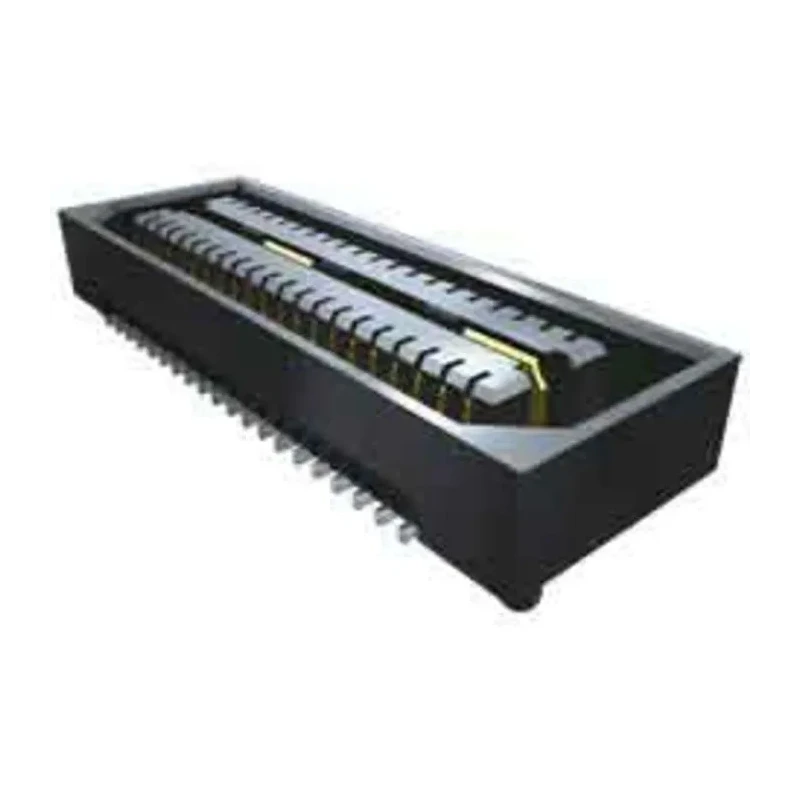

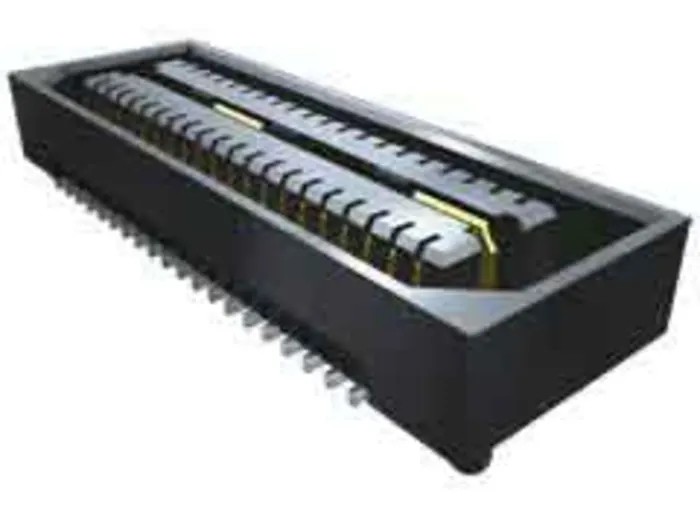

Samtec QSE Series Straight Surface Mount PCB Socket, 40-Contact, 2 Row, 0.8 mm Pitch, 225V, Bronze QSE-020-01-L-D-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 225V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 23A |
| Model | QSE-020-01-L-D-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | QSE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Speed Ground Plane Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Stacking Height | 5mm |
| Row Pitch | 5.73mm |
Key Features
- The socket features high-speed ground plane socket design for optimal performance.
- It has a 0.8 mm pitch suitable for fine-pitch PCB layouts.
- Constructed with bronze contact material plated with gold for durability and conductivity.
- Supports a current rating of up to 23 A for high power applications.
- Designed for surface mount technology with straight orientation for ease of installation.
- Stacking height is 5 mm, ideal for compact assemblies.
- Operating temperature range is from -55°C to 125°C for robust environmental tolerance.
- Connector system is board-to-board, suitable for reliable interconnections.
Product Description
Samtec QSE-020-01-L-D-A-K-TR PCB Socket is a high-performance, straight body orientation surface mount socket designed for use in electronic and electrical industries. It features 40 contacts arranged in 2 rows with a pitch of 0.8 mm, allowing for fine-pitch PCB applications. The socket is suited for board-to-board connections and supports a voltage rating of 225 V.
The contact material is bronze, plated with gold to ensure excellent conductivity and corrosion resistance. This design supports a current rating of up to 23 A, making it suitable for high power and demanding electronic applications. The stacking height of 5 mm allows for compact PCB assemblies, while the straight orientation simplifies installation.
Its construction uses liquid crystal polymer housing which offers durability across a broad temperature range from -55°C to 125°C, making it viable for industrial, manufacturing, and high-frequency electronic sectors. The row pitch of 5.73 mm enables multi-row applications maintaining signal integrity.
This QSE series PCB socket is widely utilized in electronic devices that require reliable surface mount sockets with high-speed ground plane characteristics. It is commonly employed in commercial electronic assemblies, telecommunications equipment, and industrial control devices.
High-speed ground plane socket design ensures efficient signal transmission. Gold-plated bronze contacts provide excellent conductivity and long life. Suitable for surface mount technology and straight orientation for ease of PCB layout.
Rated for 23 A current and 225 V voltage applications. Temperature range from -55°C to 125°C for varied operating environments. Board-to-board connector system ideal for electronic components interconnection. Compact 5 mm stacking height supports dense PCB designs.
Robust liquid crystal polymer housing ensures mechanical strength and stability. Explore the Electronics & Electricals category at EnvMart for more PCB Sockets and related components from Samtec and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 23 A, making it suitable for high power applications.
The voltage rating for this socket is 225 V, suitable for various electronic applications.
It features a pitch of 0.8 mm and has 40 contacts arranged in 2 rows.
The contact material is bronze, plated with gold for conductivity, and the housing is made from liquid crystal polymer.
The stacking height of this socket is 5 mm, which is ideal for compact PCB assemblies.
The operating temperature range is from -55°C to 125°C, allowing it to function in various environmental conditions.
This model uses solder termination, which is common for surface mount applications.
The orientation of this socket is straight, facilitating ease of installation on PCBs.
It utilizes a board-to-board connector system, suitable for reliable interconnections between electronic components.
It features a high-speed ground plane socket design, ensuring efficient signal transmission for demanding electronic applications.
The row pitch is 5.73 mm, which supports multi-row applications while maintaining signal integrity.
The country of origin for this socket is India.
