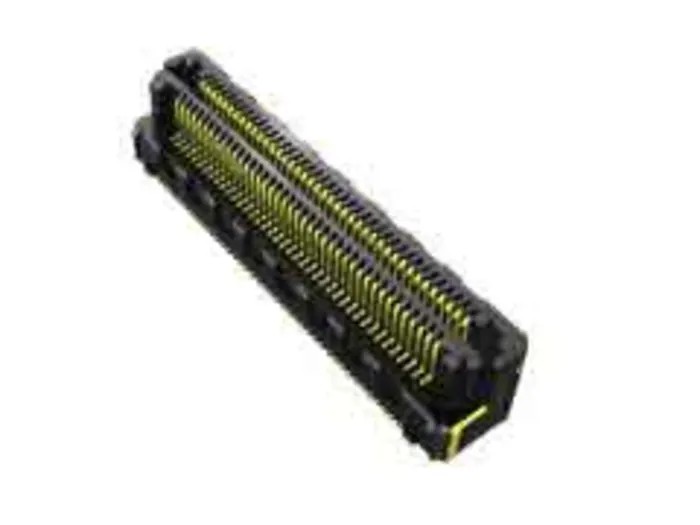

Samtec LSHM Series Straight Surface PCB Header 40 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-120-06.0-L-DV-A-S-K-TR

Samtec LSHM-120-06.0-L-DV-A-S-K-TR Straight Surface PCB Header is designed for dense, reliable wire-to-board connections in industrial and electronic applications. This 40-contact, 2-row connector features a fine 0.5 mm pitch and a shrouded housing for improved protection and connection security. Its Liquid Crystal Polymer construction offers excellent thermal stability and robustness, suitable for demanding operating conditions ranging from -55°C to 125°C.

The connector uses phosphor bronze contacts with gold plating to ensure superior conductivity and corrosion resistance, supporting currents up to 2 amperes and voltage ratings up to 160 and 226V AC. The surface mount design with solder termination ensures compatibility with automated PCB assembly processes, while the male contact gender matches corresponding connectors efficiently.

This PCB header provides enhanced mating reliability with audible click feedback that confirms secure connections. It supports various mounting orientations including parallel, perpendicular, and coplanar systems, making it versatile for multiple industrial, commercial, and electronic manufacturing uses.

Ideal for use in telecommunications, computing, instrumentation, and other demanding fields, this connector reduces inventory costs with self-mating systems and offers optional shield and lubrication features for specialized applications. The precise 0.5 mm pitch allows high-density I/O configurations, essential for modern compact electronics design.

Features 40 contacts arranged in 2 rows with 0.5 mm pitch for dense PCB mounting. Constructed with Liquid Crystal Polymer housing for high durability and temperature resistance. Phosphor Bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.

Supports current rating of 2A and can operate between -55°C to 125°C. Surface mount design with male contact gender and solder termination type. Shrouded housing improves connection protection and reliability. Suitable for applications requiring up to 160/226V AC voltage rating.

Mating and unmating forces approximately 4-6 times greater than typical micro pitch connectors. Offers parallel, perpendicular, and coplanar system mounting configurations. Includes audible click feedback when mated for secure connections.

This Samtec LSHM Series PCB Header serves critical industrial and electronic component manufacturing needs, offering robust performance and design flexibility. Browse more PCB Headers and connectors at EnvMart to find compatible and high-quality components.
