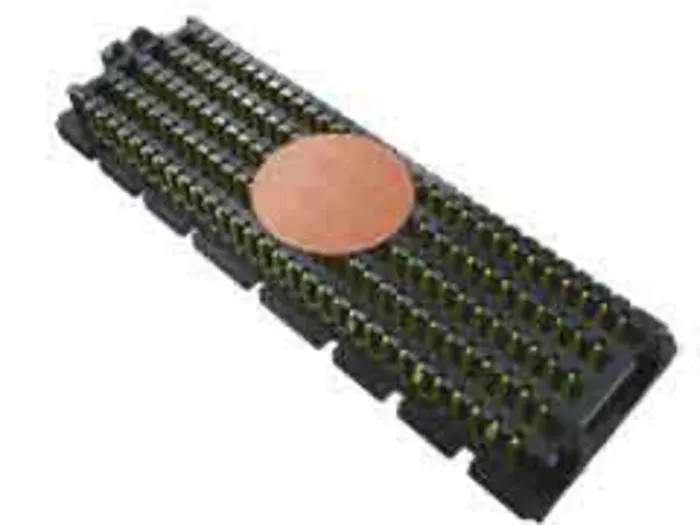

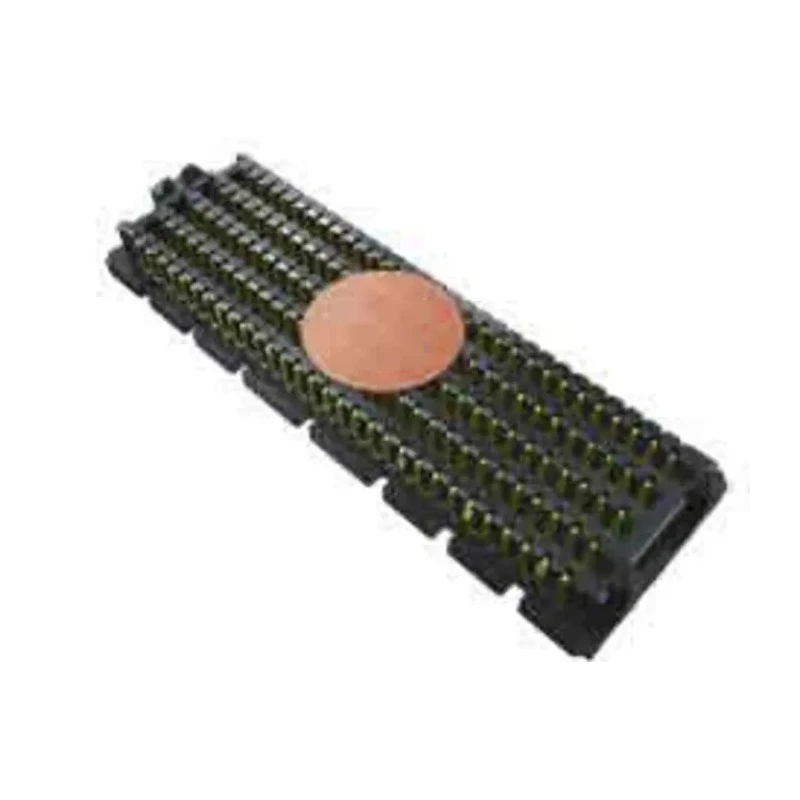

Samtec SEAM Series Straight Surface PCB Header 120 Contacts 1.27 mm Pitch 6 Row Shrouded SEAM-20-02.0-S-06-2-A-K-TR

Samtec SEAM-20-02.0-S-06-2-A-K-TR is a high-performance PCB header from the SEAM Series featuring 120 contacts arranged in 6 rows with a precise 1.27 mm pitch. This shrouded, straight surface mount header is constructed with Liquid Crystal Polymer housing that delivers strength and thermal stability for demanding industrial and electronic applications.

The contacts are made from a copper alloy and plated with gold to provide excellent electrical conductivity and corrosion resistance, ensuring long-lasting performance. This header supports a current rating of 2.7A per contact and is engineered to operate reliably across a wide temperature range from -55°C up to 125°C.

Designed for surface mount board-to-board connection systems, this PCB header utilizes solder terminations and offers rugged edge rate contact technology for reduced insertion and withdrawal forces. The header accommodates stack heights from 7 mm to 17.5 mm, making it suitable for compact and multi-layer PCB assemblies.

With support for high-speed data transmission up to 28+ Gbps, the SEAM-20-02.0-S-06-2-A-K-TR is ideal for advanced electronic equipment requiring reliable, high-density interconnects. Its 1.27 mm pitch and 6-row configuration provide an efficient layout for high I/O counts up to 500 signals.

This product is suited for various industrial sectors including telecommunications, computing, consumer electronics, and instrumentation, offering dependable performance for precise and high-frequency signal applications.

Supports up to 2.7A current per contact. Constructed with Liquid Crystal Polymer housing for high durability. Copper alloy contacts plated in gold ensure optimal conductivity and corrosion resistance. Operates reliably between -55°C to 125°C temperature range.

Designed for board-to-board connector systems and solder termination. Features a rugged design for lower insertion and withdrawal forces. Terminations accommodate stack heights ranging from 7 mm to 17.5 mm. Ideal for high-speed data rates with up to 28+ Gbps signal integrity.

Meets standard voltages of up to 240V for versatile applications. Explore more premium PCB Headers and connectors at EnvMart to enhance your electronic assemblies with reliable and high-quality components.
