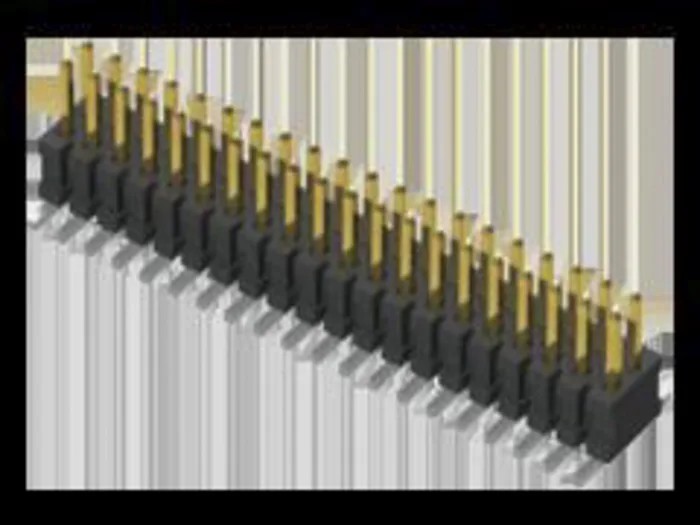

Samtec FTSH Series Straight Surface Pin Header 40 Contacts 1.27 mm Pitch 2 Row Unshrouded FTSH-120-01-L-DV-K

Samtec FTSH-120-01-L-DV-K is a high-quality straight surface mount pin header designed for electronic circuit board connections. With 40 male contacts arranged in 2 rows and a 1.27 mm pitch, this unshrouded connector is built with robust Liquid Crystal Polymer housing, ensuring excellent mechanical stability and durability in demanding industrial environments.

The gold-plated phosphor bronze contacts provide superior electrical conductivity and corrosion resistance, suitable for applications requiring reliable wire-to-board connectivity. The device supports solder termination, enabling efficient assembly on PCBs with stable mechanical and electrical performance.

Operating efficiently in temperatures ranging from -55°C to 125°C, this pin header is ideal for use in industrial, manufacturing, communications, and electronic assembly environments. The 0.1 mm tail pin length and 3.05 mm mating pin length enhance connection security and compatibility with various mating connectors.

This product series includes micro headers with multiple post heights and configurations, featuring options for both surface mount and through-hole tails. The FTSH series also offers cost-effective flash gold plating and extended life features, including hot-pluggable variants in the HPT series.

Features a 1.27 mm pitch for precise PCB connections. Equipped with 40 male contacts for robust signal transmission. Constructed with Liquid Crystal Polymer housing ensuring durability. Phosphor Bronze contacts plated with gold for corrosion resistance.

Suitable for surface mount applications with solder termination. Operates reliably within temperature range of -55°C to 125°C. Connector system supports wire-to-board configurations. Tail pin length of 0.1 mm and mating pin length of 3.05 mm for secure connections.

Designed as an Extended Life Product (E.L.P.) with hot-pluggable options available. Unshrouded, straight orientation to accommodate various PCB layouts.

This pin header is widely used in electronic assembly for industrial, telecommunications, manufacturing, and laboratory equipment. It is compatible with various PCB designs requiring surface mount connectors with high reliability and long service life.
