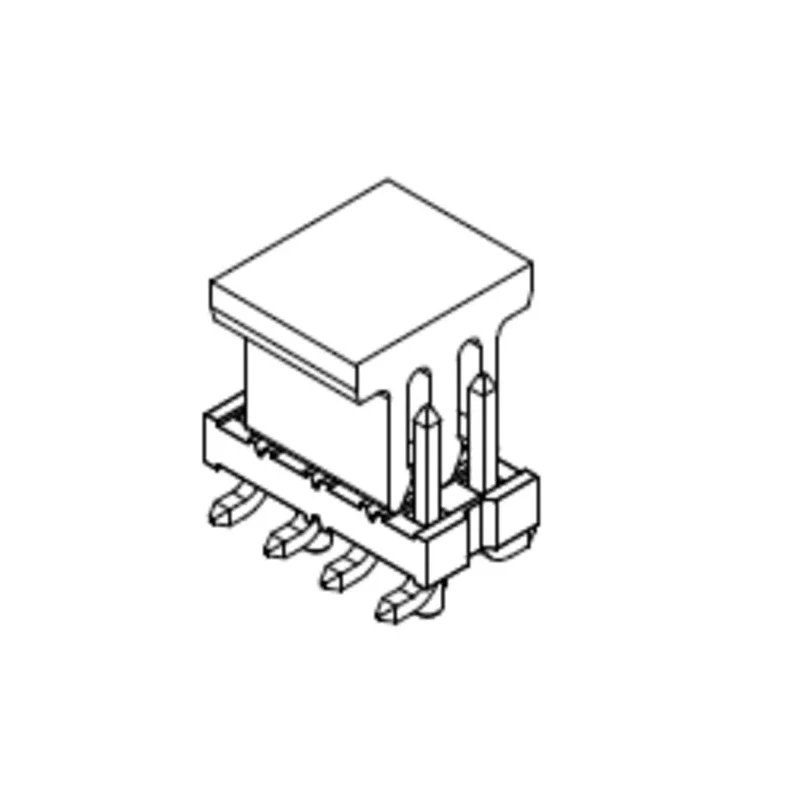

Molex Milli-Grid Series Straight Surface PCB Header 12 Contact, 2 mm Pitch, 2 Row, Shrouded 87759-1274

Molex 87759-1274 Milli-Grid Series Straight Surface PCB Header is a high-quality electronic connector designed to provide reliable board-to-board connections in compact electronic applications. Featuring a dual-row configuration with 12 contacts spaced at a 2 mm pitch, this header is optimized for space-saving design in portable and handheld devices.

Manufactured with a nylon housing, the PCB header ensures mechanical strength and insulation. Its shrouded design enhances mating reliability and protects contacts during connection cycles. Each contact is constructed from phosphor bronze and plated with gold, delivering high conductivity and resistance to corrosion, essential for maintaining signal integrity in industrial and consumer electronics.

The header supports a voltage rating of 125V and a current capacity of 2A, making it suitable for low power applications requiring stable connectivity. With a wide operating temperature range from -55°C to 105°C, it can endure tough environmental conditions commonly encountered in industrial and electronic manufacturing processes.

The product terminates via soldering and is designed for surface mount application, facilitating automated PCB assembly and ensuring robust solder joints. Its male contact gender and straight orientation are tailored for efficient plug-in connections in standard board layouts.

This Molex PCB header is UL listed, meeting quality and safety standards for electronic components. Originating from Indonesia, it supports diverse applications across industrial, laboratory, consumer electronics, and manufacturing sectors.

The header has a shrouded male contact design for enhanced connection security. Nylon housing provides durability and insulation in compact spaces. Gold plating on phosphor bronze contacts ensures low resistance and corrosion protection.

Designed for surface mount solder termination for reliable PCB connections. Dual-row layout with 12 contacts at a 2 mm pitch optimizes space efficiency. Voltage rating of 125V and current rating of 2A for low-power electronic devices.

Operating temperature range from -55°C to 105°C for diverse environments. Ideal for portable, handheld, and industrial electronic applications. UL listed for safety and quality compliance. Manufactured in Indonesia with high standards.
