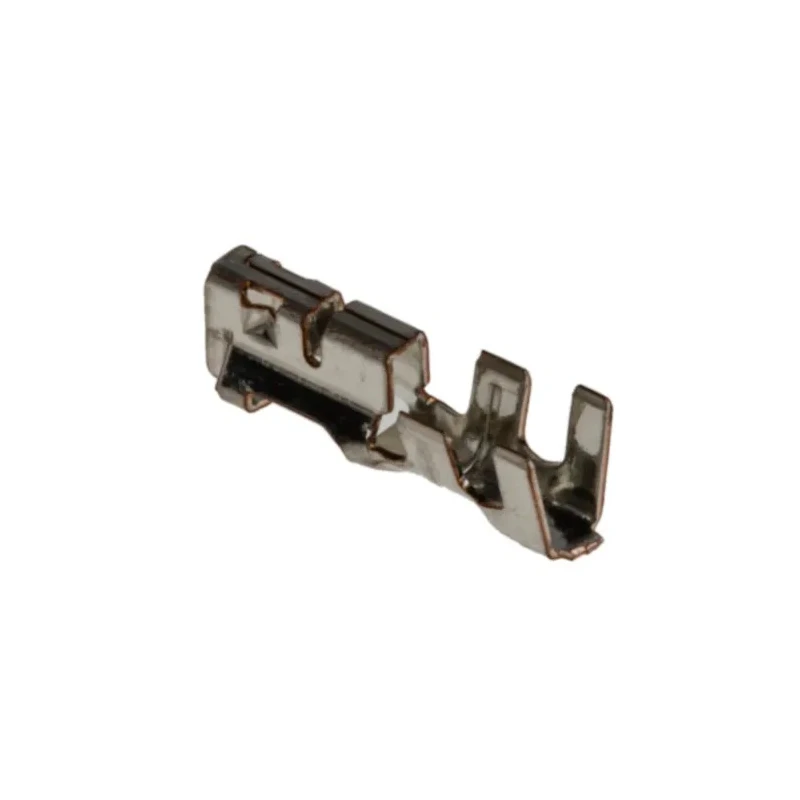

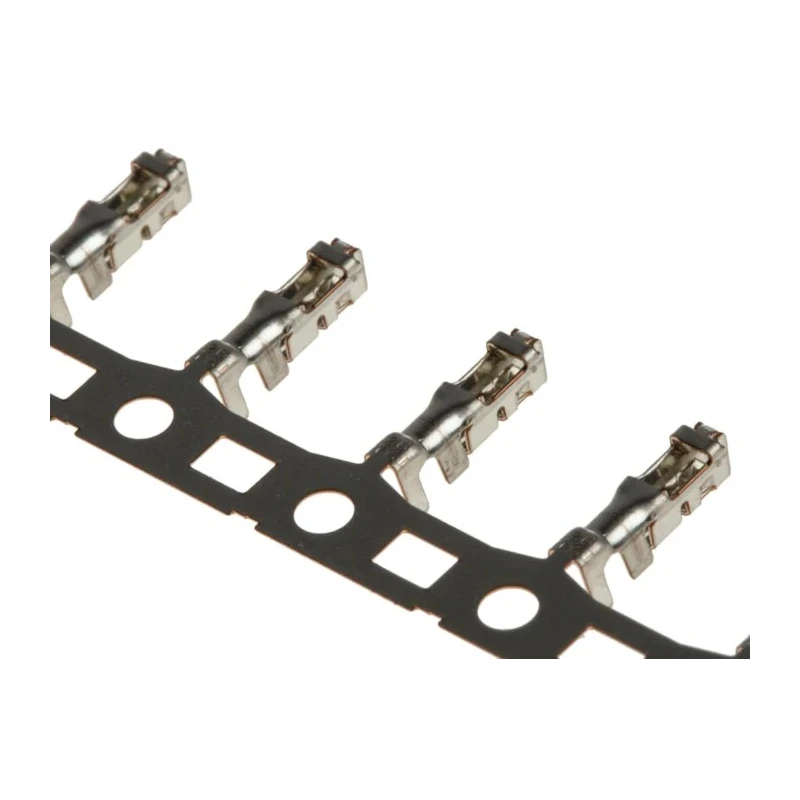

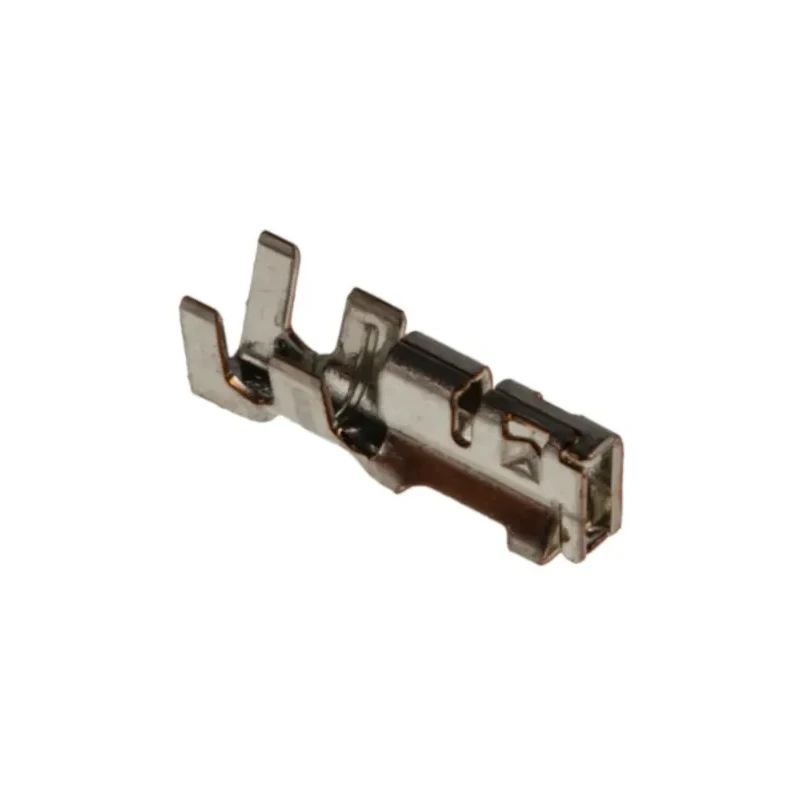

Molex 505153 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max, Tin Plated Copper Alloy, 3A Current 505153-8000
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 505153 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 505151 DuraClik TPA Wire-to-Board Receptacle Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.33mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from copper alloy for excellent conductivity and durability.
- Contact plating with tin ensures resistance to corrosion and wear.
- Crimp termination offers secure attachment without soldering.
- Operates reliably across a temperature range from -40°C to 105°C.
- Compatible with 505151 DuraClik TPA Wire-to-Board Receptacle Housing connectors.
- Supports a continuous current rating of 3 amperes.
- Meets multiple industry standards including UL 498, MIL-STD-202, and JIS certifications.
- Low halogen content reduces toxic fume emission in case of fire.
Product Description
Molex 505153-8000 Female Crimp Terminal is engineered for secure, high-quality wire-to-board connections in demanding industrial and electronic applications. Featuring a copper alloy contact material with tin plating, it delivers excellent conductivity and corrosion resistance, ensuring durability and signal integrity.
This crimp terminal is compatible with 24 to 22 AWG wires, providing maximum versatility for various wiring requirements. The crimp termination method allows for fast, reliable installation without the need for soldering, reducing assembly time and potential heat damage.
Operating reliably within a temperature range of -40°C to 105°C, this terminal withstands harsh environmental conditions and vibration, making it suitable for security systems, telecommunications, medical device manufacturing, and automotive applications.
Designed to mate securely with 505151 DuraClik TPA Wire-to-Board Receptacle Housing connectors, it provides a firm connection that prevents moisture ingress and contamination, maintaining optimal electrical performance.
Constructed from copper alloy for durable and efficient conductivity. Tin plating protects against corrosion and wear. Crimp termination secures wire attachment without soldering. Wide operating temperature range from -40°C to 105°C.
Compatible with Molex 505151 Wire-to-Board Receptacle Housing. 3A current rating suitable for various industrial applications. Conforms to standards UL 498, MIL-STD-202, and JIS for reliability and safety. Low halogen content reduces toxic emissions in fire scenarios.
This product is manufactured in Japan, ensuring high quality and compliance with rigorous production standards. The Molex 505153-8000 Female Crimp Terminal is ideal for use in electronic assemblies, industrial automation, telecommunications infrastructure, and automotive wiring harnesses.
Explore more Molex connectors and crimp terminals in our Electronics Components category to find suitable complementary products for your projects.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a continuous current rating of 3 amperes.
This model operates reliably within a temperature range from -40°C to 105°C.
It is compatible with 24 AWG minimum and 22 AWG maximum wire sizes.
The contact material is copper alloy, which provides excellent conductivity.
It features a crimp termination method, allowing for secure attachment without soldering.
It meets several industry standards including UL 498, MIL-STD-202, and JIS certifications.
The maximum contact resistance is 10 milliohms.
It is manufactured in Japan, ensuring compliance with rigorous production standards.
The contacts are plated with tin, which provides resistance to corrosion and wear.
It is suitable for use in electronic assemblies, industrial automation, telecommunications infrastructure, and automotive wiring harnesses.
The minimum wire size is 0.2 mm², while the maximum is 0.33 mm².
