Microchip High Side Current Limit Load Power Switch IC 6-Pin SOT-23 MIC2039AYM6-TR

Free Delivery in India | Lowest Global Shipping Charges

Microchip High Side Current Limit Load Power Switch IC 6-Pin SOT-23 MIC2039AYM6-TR

Name: Microchip High Side Current Limit Load Power Switch IC 6-Pin SOT-23 MIC2039AYM6-TR
Brand: Microchip
SKU: 153367
Price: 0.97 USD
Availability: InStock



Category Power Switch IC Brand Microchip Condition New

Specifications

Country of Origin	United States
Brand	Microchip
Length	3mm
Model	MIC2039AYM6-TR
Width	3mm
Mount Type	Surface
Number of inputs	1
Series	MIC2039
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Operating Current	300μA
Number of outputs	5
Pin Count	6
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	-0.3V
Switch On Resistance RdsOn	75mΩ
Low Quiescent Current	100μA typical (switch ON)

Key Features

Provides ±5% current limit accuracy for reliable protection.
Operates within input voltage range from 2.5V to 5.5V.
Features low quiescent current of 100 μA typical when switch is ON.
Typical switch ON resistance of 75 mΩ at 5.0V ensures efficient power delivery.
Includes built-in thermal shutdown to safeguard device and system.
Soft-start functionality minimizes inrush current during startup.
Kickstart feature offers momentary secondary current limit threshold for 120 ms.
Fast 10 μs short-circuit response time in non-Kickstart options.

Product Description

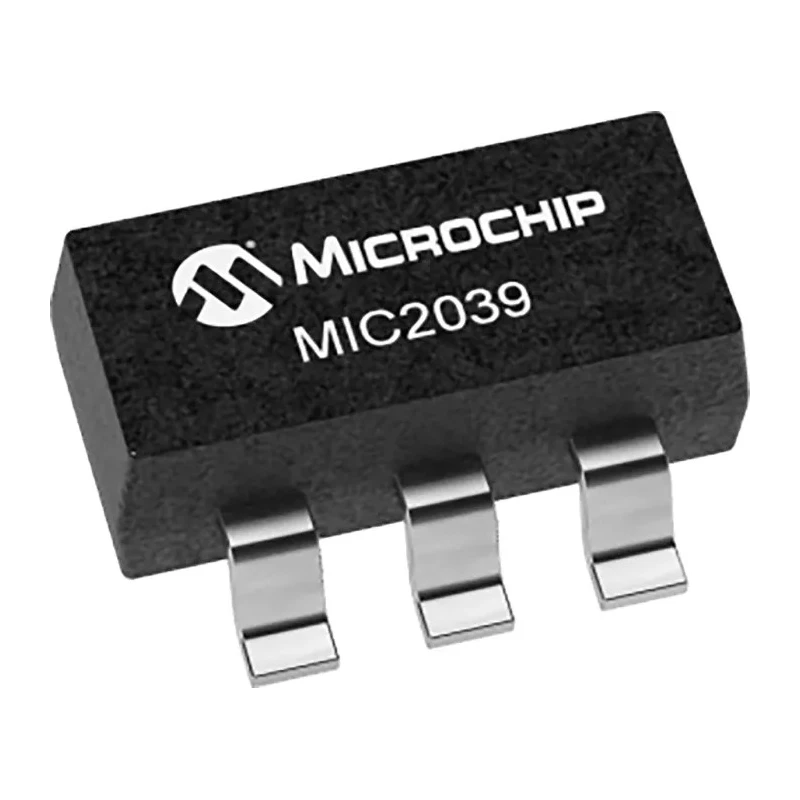

Microchip MIC2039AYM6-TR is a high-side MOSFET power distribution switch designed to improve system reliability through precise current limit control and thermal protection. It is packaged in a compact 6-pin SOT-23 surface mount package measuring 3mm by 3mm, making it ideal for space-constrained electronic applications requiring efficient power switching.

This device operates from an input supply voltage range between 2.5V and 5.5V with an operating current typically around 300 μA. It incorporates a typical switch on resistance (RdsOn) of 75 milliohms at 5V, which reduces power loss and improves efficiency.

The MIC2039AYM6-TR provides ±5% current limit accuracy and includes protective features such as thermal shutdown and undervoltage lockout, ensuring operational safety during faults and preventing damage. A soft-start capability is included to control inrush current at device startup, complemented by a kickstart mode that permits a momentary higher current limit for 120 milliseconds.

The device offers a fast short-circuit response time of 10 microseconds for enhanced fault detection and supports logic-controlled enable signals, compatible with active-high or active-low logic levels. Its temperature operation spans from -40°C to +125°C, suitable for industrial and consumer electronics.

±5% current limit accuracy guarantees consistent performance. Wide input voltage range enables flexible power sources. Low quiescent current supports energy-efficient designs. Thermal shutdown protects against overheating scenarios.

Compact surface mount design simplifies PCB layouts. Soft-start and kickstart features provide controlled power delivery. Fast short-circuit response enhances system safety. Logic controlled enable pin supports versatile control options.

Operating temperature range suitable for harsh environments. Pin compatible with MIC2009 and MIC2019 for design flexibility.

Applications for the MIC2039AYM6-TR include power management in consumer electronics, industrial automation systems, communication equipment, and automotive electronic modules. Its robust design and integrated protections make it a dependable component in power distribution circuits.
