Schaffner Chassis Mount EMC Filter 16A 440V AC 60Hz 3 Phase Terminal Block FN351

Free Delivery in India | Lowest Global Shipping Charges

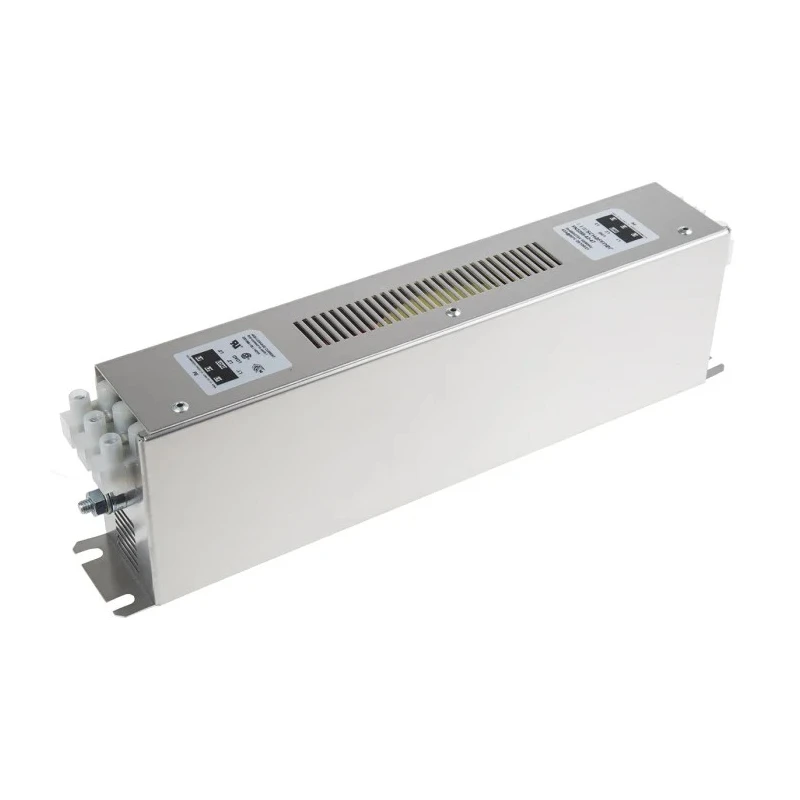

Schaffner Chassis Mount EMC Filter 16A 440V AC 60Hz 3 Phase Terminal Block FN351

Name: Schaffner Chassis Mount EMC Filter 16A 440V AC 60Hz 3 Phase Terminal Block FN351
Brand: Schaffner
SKU: 153229



Category Power Line Filters Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	65mm
Length	150mm
Model	FN351
Depth	234mm
Mount Type	Chassis Mount
Operating Frequency	60Hz
Series	FN351
Maximum Operating Temperature	85°C
Number Of Stages	1
Capacitance	2.2nF
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	3
Leakage Current	1.9mA
Maximum Voltage	440V ac
Termination Style	Terminal Block
Power Loss	8W

Key Features

Designed as a chassis mount EMC filter with terminal block termination.
Offers a maximum current rating of 16 amperes.
Supports maximum voltage of 440 volts AC with 60Hz operating frequency.
Compact dimensions of 150mm length, 234mm depth, and 65mm height.
Capacitance value of 2.2 nanofarads ensures effective noise suppression.
Wide operating temperature range from -25°C to 85°C for industrial applications.
Low leakage current rating of 1.9 milliamps for safety compliance.
Power loss rated at 8 watts to maintain energy efficiency.

Product Description

Schaffner FN351 chassis mount EMC filter is designed for reliable electromagnetic compatibility filtering in industrial and automation equipment. Rated for a maximum current of 16A and maximum voltage of 440V AC, it operates at 60Hz frequency, suitable for three-phase power line filtering.

This single-stage EMC filter features terminal block termination style and chassis mounting, ensuring secure and stable installation in equipment requiring EMI suppression.

The filter's capacitance of 2.2nF and low leakage current of 1.9mA help reduce electromagnetic interference effectively while maintaining safety and compliance with IEC 60950 standards.

Operating temperature ranges from -25°C to 85°C allow the filter to perform reliably in harsh industrial environments.

With a compact form factor (150mm length, 234mm depth, 65mm height) and power loss of only 8 watts, the FN351 filter is suitable for use with motor drives, industrial inverters, inverters and converters, UPS systems, and SMPS applications.

This EMC filter series offers broadband common mode and differential mode attenuation, ensuring optimal filtering even under high interference levels. Designed for chassis mount installation with terminal block connections.

Rated for 16A maximum current and 440V AC maximum voltage. Single-stage design supports 3-phase power lines at 60Hz frequency. Compact size enables easy integration into industrial equipment. Wide operating temperature range from -25°C to 85°C.

Low power loss of 8W enhances energy efficiency. Leakage current limited to 1.9mA to conform to safety standards. IEC 60950 compliant for industrial and commercial use.

Typical industrial applications include automation equipment, 3-phase motor drives, inverters, converters, uninterruptible power supplies, and switched-mode power supplies. The filter's robustness and safety features protect sensitive electronic equipment from EMI, enhancing operational reliability.
