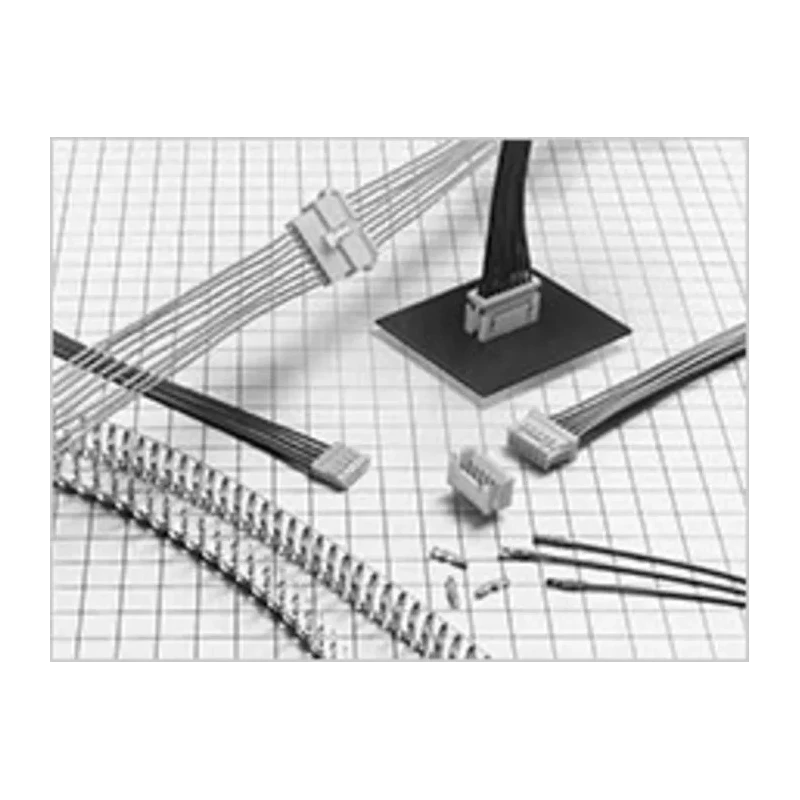

Hirose Male Crimp Terminal DF1B Series, 22 AWG Min Crimp, 20 AWG Max, Tin Plating, Phosphor Copper Contact DF1B

Hirose DF1B Male Crimp Terminal DF1B is a high-quality electrical component designed for use with the DF1B Series Connector. It supports wire gauge sizes from a minimum of 22 AWG to a maximum of 20 AWG, accommodating wire cross sections up to 0.5mm². The contact is made of phosphor copper, providing excellent electrical conductivity, and is plated with tin to enhance durability and resistance to corrosion.

This male Crimp Terminal supports a maximum current rating of 5 amperes, suitable for a range of electronic and electrical applications. It features a crimp termination type which ensures a secure and reliable electrical connection, optimizing performance under operating conditions ranging from -35°C minimum to 85°C maximum.

The design includes innovative insulation displacement and crimping methods that allow for combining different current capacity cables within a single housing. The contacts can be replaced after connection, increasing maintainability without compromising reliability. The insulation displacement area is protected by the casing, which enhances operational stability and longevity.

Manufactured in Japan, this terminal meets high-quality standards, although it does not carry additional certifications as per available data. It is ideal for applications in industrial electronics, manufacturing equipment, and power connectors for various types of electrical assemblies.

Constructed from phosphor copper with tin plating for corrosion resistance. Supports wire sizes from 22 AWG to 20 AWG and cross-sectional area up to 0.5 mm². Maximum current capacity of 5 amperes. Operating temperature from -35°C to 85°C for versatile use.

Terminated using reliable crimp technique for strong electrical continuity. Designed for easy maintenance and high reliability in industrial and electronic applications. Browse EnvMart's extensive collection of precision connectors and terminals to find compatible components and crimp tools to enhance your electronic assembly workflows.
