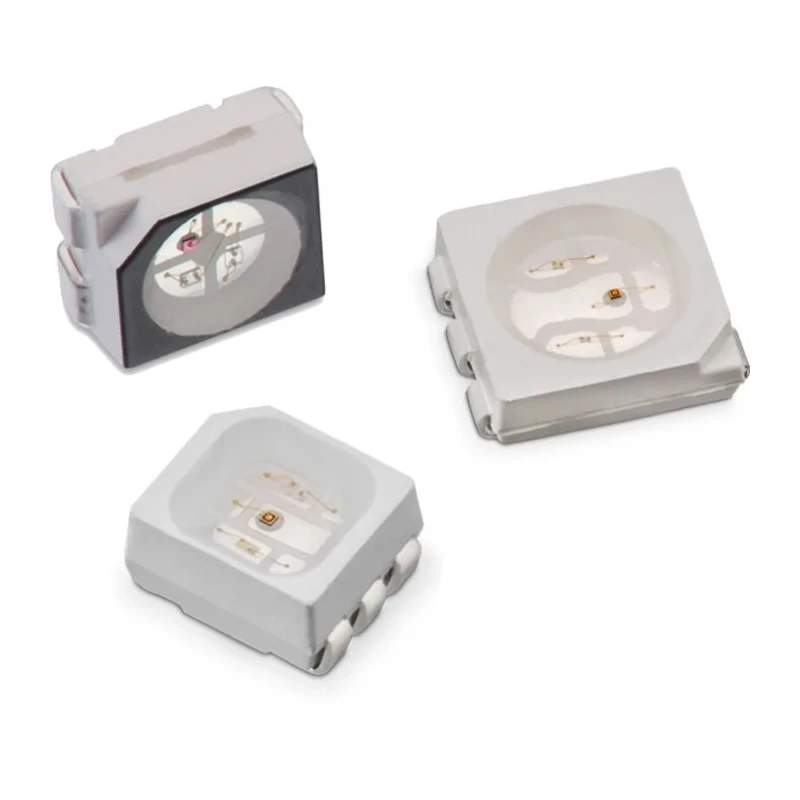

Wurth Elektronik 24 V RGB LED 5050 Surface WL-SFTW 150505M173300
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Model | 150505M173300 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SFTW |
| Number Of Leds | 3 |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | 5050 |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 176-6248Brand: Wurth ElektronikManufacturers Part No.: 150505M173300Distrelec Article No.: 304-38-896 |
| LED Colour | RGB |
| Dominant Wavelength | 470, 520, 625nm |
| Forward Voltage | 2.4V |
| Number of Pins | 6 |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 5 x 5 x 1.6 mm |
| Lens Shape | Round |
| PLCC 4 | Size 3528 |
| PLCC 6 | Size 5050 |
| Wurth Elektronik 2.4 V RGB LED 5050 Surface WL-SFTW 150505M173300RS Stock No. | 176-6248Brand: Wurth ElektronikManufacturers Part No.: 150505M173300Distrelec Article No.: 304-38-896 |
Key Features
- Compact 5050 package with surface mount technology.
- Operates at a forward voltage of 2.4 V with maximum forward current of 30 mA.
- High reliability and fast switching with no UV or IR radiation.
- Features a clear round lens with dimensions of 5 x 5 x 1.6 mm and 120° viewing angle.
- RGB individual color control with dominant wavelengths of 470 nm, 520 nm, and 625 nm.
- Compliant with RoHS standards, ensuring environmental safety.
- Suitable for applications including electronic signage, backlighting, accent lighting, and consumer appliances.
- Package includes 3 LEDs with 6 pins on a tape and reel packaging for easy assembly.
Product Description
Wurth Elektronik 150505M173300 is a high-quality 24 V RGB LED in a 5050 surface mount package designed for precise and reliable LED lighting applications. This LED module features a compact 5 x 5 x 1.6 mm round clear lens that provides a wide 120° viewing angle, ideal for uniform illumination.
Engineered for low power consumption at 30 mA forward current and 2.4 V forward voltage, this RGB LED ensures high brightness with minimal energy use and fast switching capabilities. It emits vivid red, green, and blue colors with dominant wavelengths at 625 nm, 520 nm, and 470 nm respectively, allowing individual color control for dynamic lighting effects.
The device is RoHS compliant to meet environmental regulations and is free from UV and IR radiation, enhancing its safety and reliability for various applications.
Typical applications include electronic signage, LCD backlighting for PDAs, TVs, and other consumer electronics, accent and decorative lighting, optical indicators, video displays, and industrial appliances such as ovens and microwaves.
The LED comes packaged in tape & reel format containing 3 LEDs per package with 6 pins for surface mounting, facilitating automated PCB assembly and efficient installation in industrial manufacturing environments.
Compact 5050 surface mount device with clear round lens. Low energy consumption and high reliability for industrial use. Individual RGB control with dominant wavelengths 470, 520, and 625 nm. Wide 120° viewing angle for uniform light distribution.
RoHS compliance ensures environmental and health safety. Suitable for lighting, signage, backlighting, and accent applications. Tape & reel packaging streamlines manufacturing processes.
This Wurth Elektronik 150505M173300 RGB LED is an optimal solution for electronic, industrial, and consumer lighting needs, offering durability, efficiency, and versatility. Explore the full range of LED components at EnvMart for comprehensive lighting solutions.
Explore more products in our LEDs - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this RGB LED is 2.4 V.
The maximum forward current for this model is 30 mA.
The dominant wavelengths are 625 nm for red, 520 nm for green, and 470 nm for blue.
The viewing angle of this RGB LED is 120°.
The lens dimensions of this LED are 5 x 5 x 1.6 mm.
The package includes 3 LEDs.
This LED comes in tape and reel packaging.
The maximum power dissipation for this model is 48 mW.
Yes, this RGB LED is compliant with RoHS standards, ensuring environmental safety.
This RGB LED is suitable for applications including electronic signage, backlighting, accent lighting, and consumer appliances.
This LED uses surface mount technology.
The model number of this RGB LED is 150505M173300.
