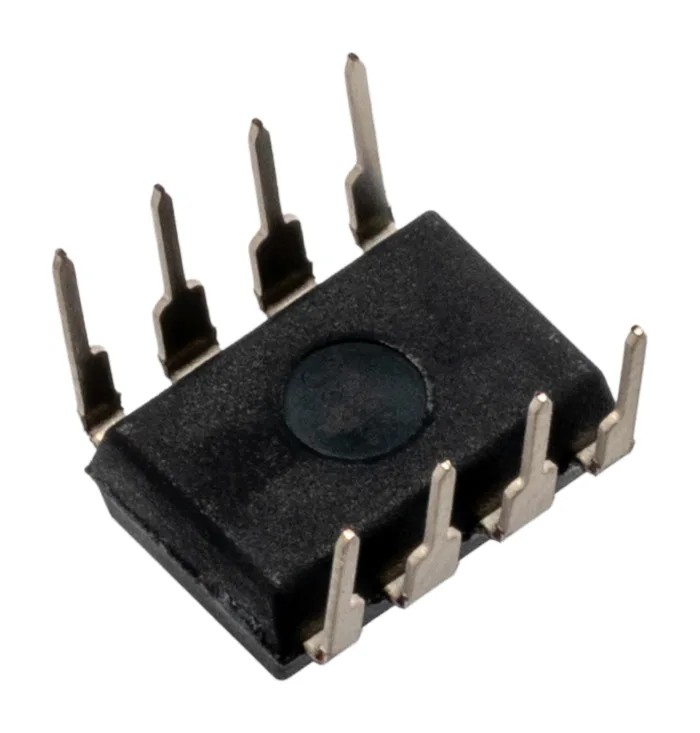

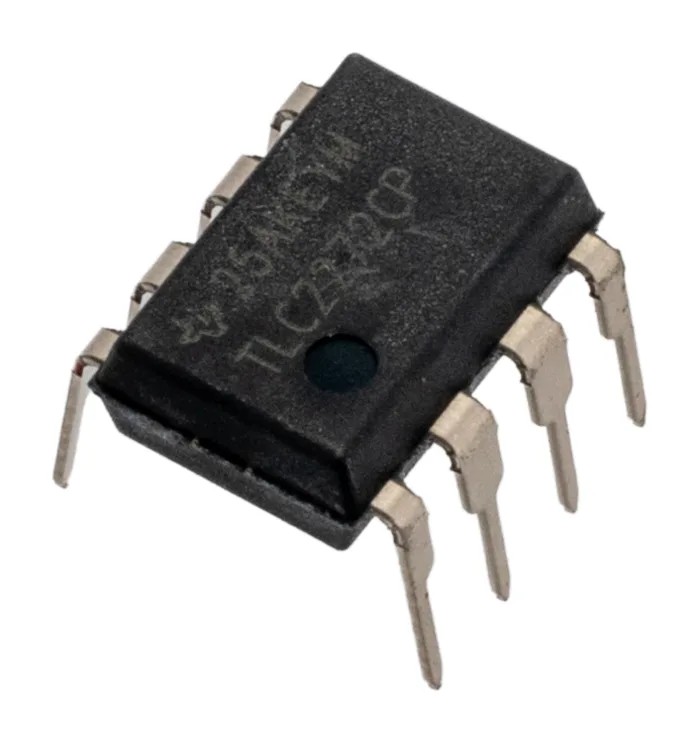

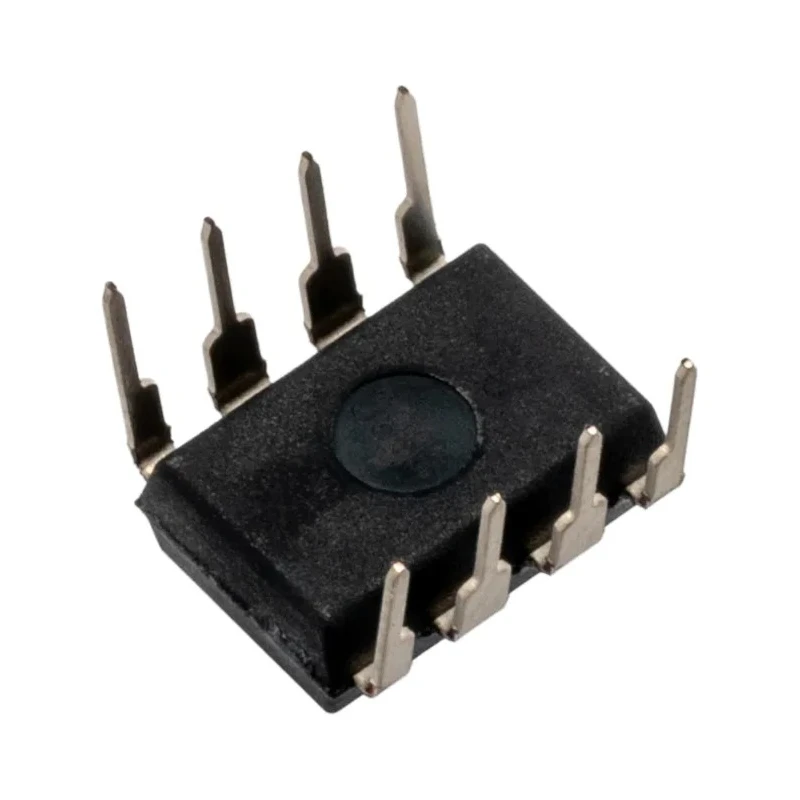

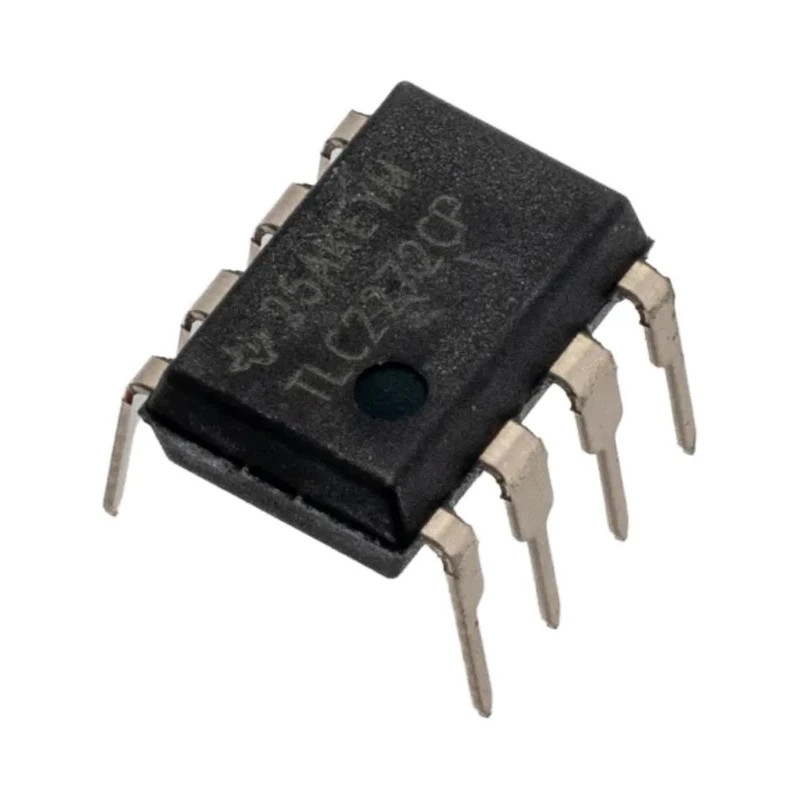

Texas Instruments Operational Amplifier 2.2 MHz 8-Pin PDIP 2 Channel 5-8V TLC2272CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TLC2272CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLC2272 |
| Output Current | 50mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 8V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 2.2MHz |
| Input Bias Current | 800 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 3.6V/μs |
Key Features
- Dual-channel CMOS operational amplifier designed for precision analog signal processing.
- Operates with supply voltage range from 5 V to 8 V.
- Offers a slew rate of 3.6 V/μs allowing fast response in signal amplification.
- RoHS compliant ensuring adherence to environmental standards.
- Compact dimensions of 9.81 mm length, 6.35 mm width, and 4.57 mm height for space-efficient applications.
- Input offset voltage of 3 mV and input bias current of 800 pA for accurate signal handling.
- Temperature operating range from 0°C to 70°C suitable for a wide range of industrial environments.
- Capable of outputting current up to 50 mA fitting various load requirements.
Product Description
Texas Instruments TLC2272CP operational amplifier is a high-performance dual-channel analog device designed for precision and reliability in signal processing applications. Featuring a 2.2 MHz gain bandwidth product, it supports fast signal amplification and is packaged in an 8-pin PDIP for easy through-hole mounting on printed circuit boards.
This device operates across a supply voltage range of 5 to 8 volts, making it suitable for various power conditions in industrial and automotive electronics. Its input offset voltage of 3 mV along with an input bias current of 800 pA ensures minimal signal distortion and high accuracy.
The TLC2272CP exhibits a slew rate of 3.6 V/μs, allowing for rapid output changes which is essential in dynamic signal environments. The output current capability of up to 50 mA enables it to drive moderate loads directly without additional buffering.
Designed with a compact footprint - measuring 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height - this amplifier blends well into tight circuit layouts while maintaining easy handling during PCB assembly. Operating temperature range from 0°C to 70°C ensures stable performance in challenging environments.
Manufactured with RoHS compliance, the TLC2272CP supports environmentally responsible electronics designs. Additionally, it meets the AEC-Q100 automotive standard, highlighting its robustness and reliability for use in automotive control systems.
Typical applications include instrumentation amplifiers, signal conditioning circuits, and general-purpose analog computing, offering excellent electrical characteristics and consistent performance.
Dual-channel CMOS operational amplifier with high gain bandwidth. Wide operating voltage range for flexible integration. Fast slew rate supports dynamic signal response. RoHS compliant ensuring environmental safety. Small form factor suitable for dense PCB layouts.
Low input offset voltage and bias current for precision. Wide temperature range for industrial applications. High output current for driving loads effectively. Meets automotive quality and reliability standards. Applicable in industrial, automotive, and instrumentation uses.
Explore more Texas Instruments products and Operational Amplifiers at EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLC2272CP has a gain bandwidth product of 2.2 MHz, allowing for effective signal amplification in various applications.
This model operates with a supply voltage range from 5 V to 8 V, making it versatile for different power conditions.
It can output a current of up to 50 mA, suitable for driving moderate loads directly without additional buffering.
The dimensions of this operational amplifier are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input offset voltage of the TLC2272CP is 3 mV, which helps ensure accurate signal handling.
This model operates within a temperature range of 0°C to 70°C, making it suitable for various industrial environments.
The slew rate of this operational amplifier is 3.6 V/μs, allowing for rapid output changes in dynamic signal environments.
It is designed for through-hole mounting, which facilitates easy installation on printed circuit boards.
This operational amplifier meets the AEC-Q100 automotive standard, indicating its reliability for automotive applications.
Yes, the TLC2272CP is RoHS compliant, ensuring it adheres to environmental safety standards.
The input bias current of the TLC2272CP is 800 pA, which contributes to its precision in signal processing.
This operational amplifier features 2 channels, allowing for dual-channel signal processing.
