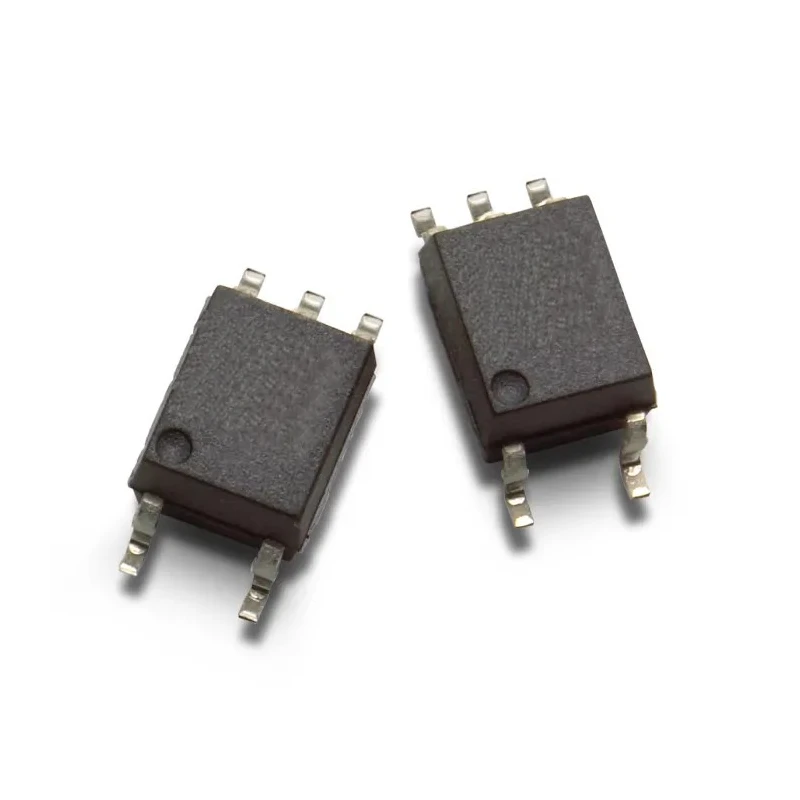

Broadcom AC/DC Input Transistor Output Optocoupler Surface Mount 5-Pin SO HCPL-M611-500E

Broadcom HCPL-M611-500E is a high-performance AC/DC input optocoupler featuring a transistor type output in a compact surface mount 5-pin SO package. This single channel device utilizes a GaAsP light emitting diode combined with an integrated high gain photon detector, producing an open-collector Schottky-clamped transistor output. It offers exceptional common mode transient immunity of 10000 V/ms, making it suitable for industrial, laboratory, and electronic equipment requiring reliable electrical isolation and signal transmission.

The device is presented in a very small, low profile JEDEC registered package, compatible with modern manufacturing techniques such as infrared vapour phase reflow and wave soldering, facilitating easy mounting on printed circuit boards in high-density applications.

With typical rise and fall times of 24ns and 10ns respectively, the HCPL-M611-500E supports high speed data transmission up to 10 MBd. It operates reliably across a wide temperature range from -40°C to 85°C, making it ideal for demanding environments in automotive, industrial control, and communication equipment.

Low input current capability at 5 mA and a maximum input current of 15 mA make it energy efficient for AC/DC input applications. The device conforms to rigorous industry standards including CSA, IEC, UL, and EN, ensuring compliance and safety in electronic assemblies.

This optocoupler is designed to provide electrical isolation and signal transmission in various applications such as power supply systems, signal isolation in industrial control, electronic instrumentation, and communication interfaces.

Single channel optocoupler integrating GaAsP LED and photon detector with transistor output. Surface mount 5-pin SO package with low profile and JEDEC registration. Guaranteed common mode transient immunity of 10000 V/ms guarantees high noise immunity.

High speed switching with typical rise time of 24ns and fall time of 10ns. Low input current requirements and AC/DC input current compatibility. Wide operational temperature range from -40°C to 85°C for harsh environments.

Compliance with CSA, IEC, UL, and EN standards for safety and quality. Compatible with infrared vapour phase reflow and wave soldering manufacturing processes. Ideal for industrial, laboratory, communication, and power supply applications.

Manufactured in the Philippines. Explore the Optocouplers category on EnvMart for a range of reliable and high-quality optical isolation solutions from Broadcom and other manufacturers.
