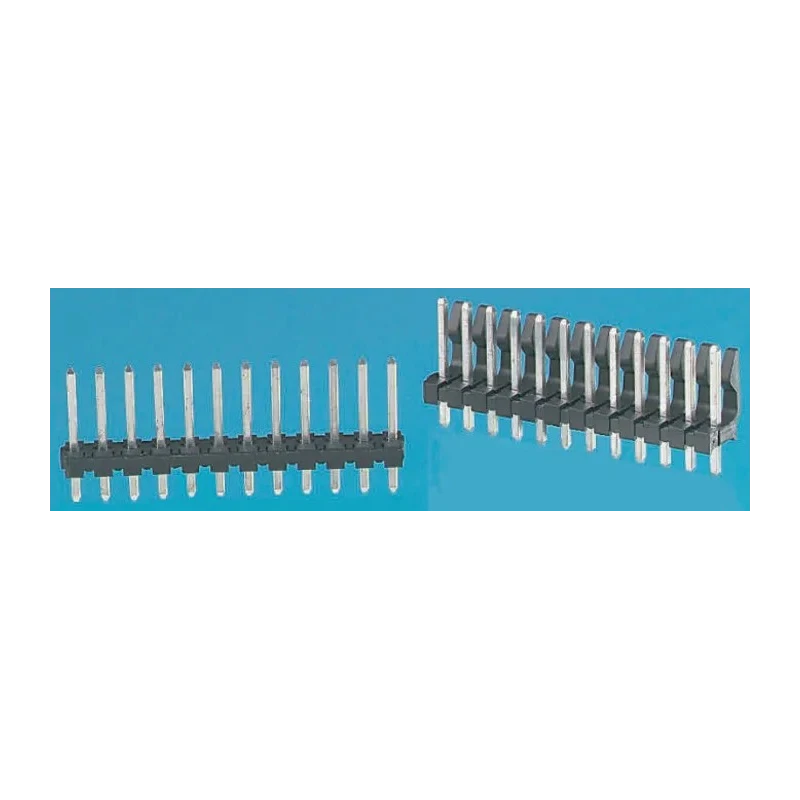

Molex KK 396 Series Straight Through Hole Pin Header, 24 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded, 250V, 7A 26-48-1241
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 4.37mm |
| Mating Pin Length | 11.43mm |
Key Features
- Constructed with polyester housing for durability.
- Brass contacts plated with tin ensure good conductivity and corrosion resistance.
- Designed for through-hole mounting for secure soldering.
- Operates at voltages up to 250V and current rating of 7A.
- Unshrouded design enables easy mating with connectors.
- Wide operating temperature range from -40°C to 105°C for diverse environments.

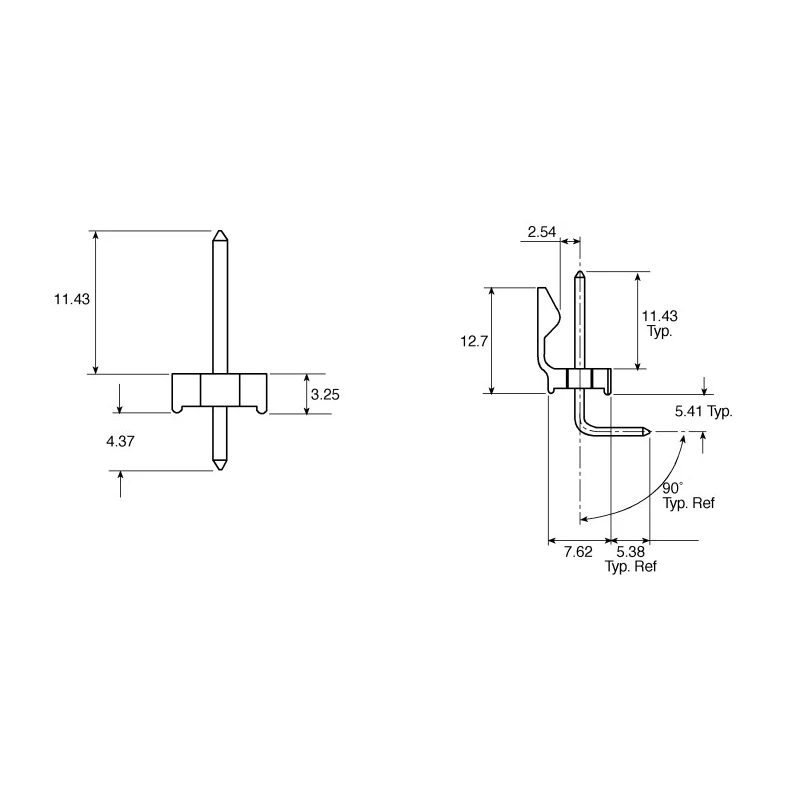

- Tail pins are 4.37 mm long with mating pin length of 11.43 mm.
- Suitable for industrial and electronic assembly applications.
Product Description
Molex 26-48-1241 KK 396 Series Straight Through Hole Pin Header is a reliable electronic component designed for industrial, manufacturing, and electronic assembly applications. Featuring 24 male contacts arranged in a single row with a 3.96 mm pitch, this unshrouded header enhances board-to-board and wire-to-board connections with its robust construction.
The pin header housing is made of durable polyester material that meets UL94V-2 standards, ensuring heat resistance and electrical safety. The brass contacts with tin plating provide excellent conductivity and long-lasting corrosion protection. This through-hole mount header facilitates secure solder connections on printed circuit boards.
Rated for a maximum voltage of 250 volts and a current of 7 amps, it operates reliably across a wide temperature spectrum from -40°C to 105°C, making it suitable for harsh industrial and commercial settings. The tail pin length of 4.37 mm and mating pin length of 11.43 mm makes it compatible with various connector systems.
Polyester housing material compliant with UL94V-2 flammability standard. Brass contacts with tin plating for durability and conductivity. Unshrouded single row, 24-contact design with 3.96 mm pitch. Through-hole mounting for secure solder tail connection.
Electrical rating of 250V and 7A current capacity for industrial usage. Operating temperature from -40°C to 105°C, suitable for diverse environments.
The product supports board-to-board and wire-to-board connector systems, enhancing assembly efficiency in electronic devices. It is ideal for use in electronics manufacturing, equipment repair, and prototype development. This Molex KK 396 Series pin header is a premium choice for engineers and technicians seeking dependable connector hardware.
Explore more high-quality PCB Headers and connectors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a maximum voltage of 250V and a current capacity of 7A.
The pitch of this pin header is 3.96 mm.
It features 24 male contacts arranged in a single row.
The housing is made of polyester, while the contacts are brass plated with tin for conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
This model is designed for through-hole mounting, allowing for secure solder connections.
The tail pin length is 4.37 mm.
The mating pin length is 11.43 mm.
It supports board-to-board and wire-to-board connector systems, enhancing assembly efficiency.
This pin header is unshrouded, which facilitates easy mating with connectors.
The country of origin for this pin header is India.
The polyester housing material complies with UL94V-2 flammability standards.
