Molex KK 254 Series Right Angle Through Hole Pin Header 3 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 22-05-7038

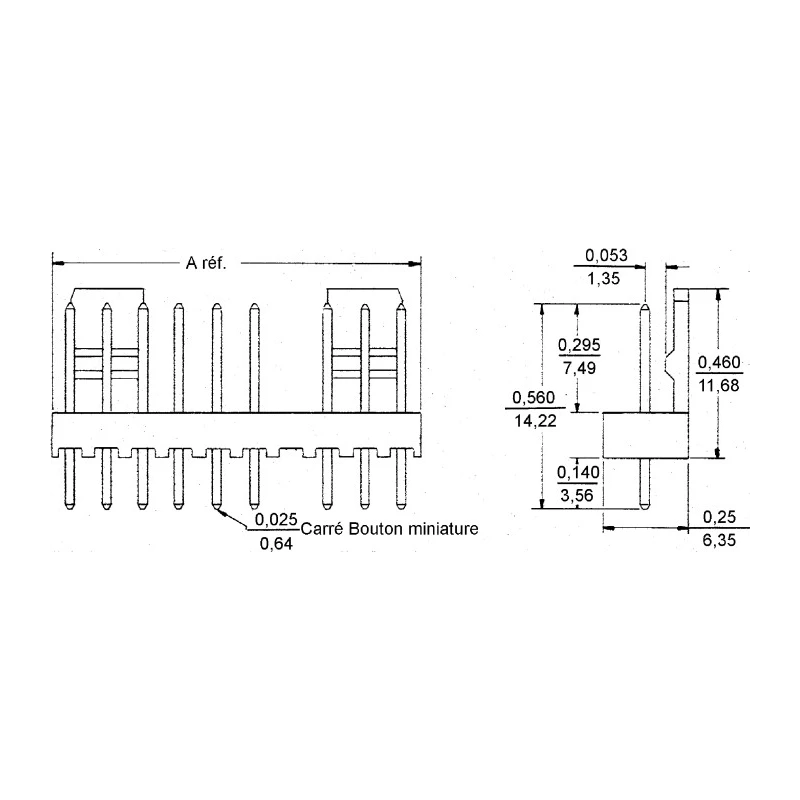

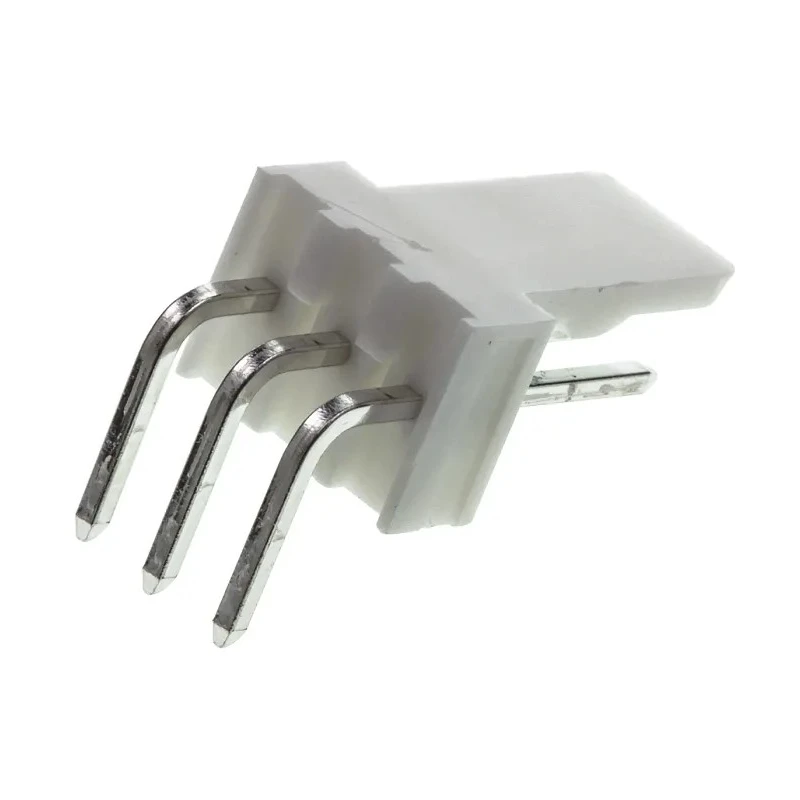

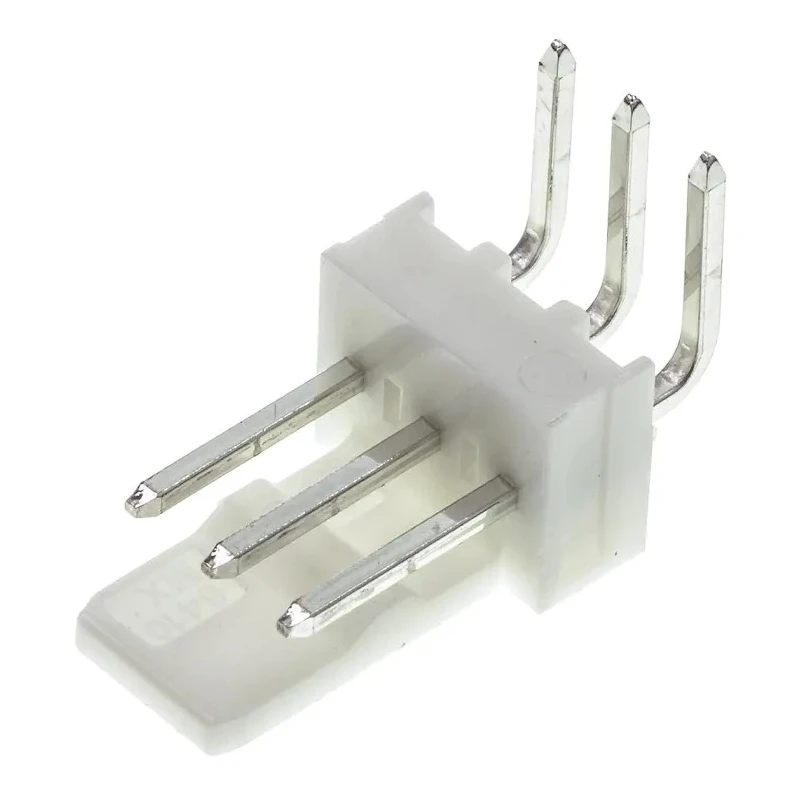

Molex 22-05-7038 KK 254 Series Right Angle Through Hole Pin Header is a high-quality PCB connector designed to facilitate robust wire-to-board connections using a 3-contact, single-row configuration with 2.54 mm pitch. The right-angle orientation aids in easier connector attachment while saving space on populated circuit boards.

The housing is made from flame-retardant, abrasion-resistant nylon (UL 94V-0 rated), providing durability under demanding environmental conditions. Each contact pin is fabricated from brass and tin-plated to ensure excellent electrical conductivity and reliable solder termination via the through-hole mount type.

This pin header supports a current capacity of 4 amperes and voltage rating of 250 volts, operating over a wide temperature range from -40°C to 105°C. The pins have a tail length of 3.8 mm and mating length of 2.54 mm, suited perfectly for secure and lasting PCB installations. The unshrouded style optimizes packing density on the PCB, facilitating maximum electrical connections using minimal space.

The friction lock feature incorporated in the KK 254 series ensures secure engagement under vibration conditions, making this pin header ideal for automotive, medical, pharmaceutical, and computer mainframe industries. Its polarised design prevents incorrect mating, enhancing system reliability.

Designed for industrial, laboratory, and commercial electronics assembly, the Molex KK 254 series pin header provides dependable performance in demanding electrical and mechanical environments.

The connector features a right-angle orientation for easy attachment and optimal PCB space usage. Constructed with a nylon housing rated UL 94V-0 for flame retardance and abrasion resistance. Contacts are male brass pins plated with tin, ensuring strong conductivity and reliable soldering.

Supports a current rating of 4A and voltage rating of 250V with a temperature range of -40°C to 105°C. Tail pin length is 3.8 mm with mating pin length of 2.54 mm, optimized for through-hole PCB mounting. Unshrouded design allows efficient signal connections with a friction lock feature that secures mating under vibration.

Suitable for automotive, medical, pharmaceutical, and computer mainframe applications. Explore a wide range of PCB headers and connectors at EnvMart for your electronics manufacturing and prototyping needs.
