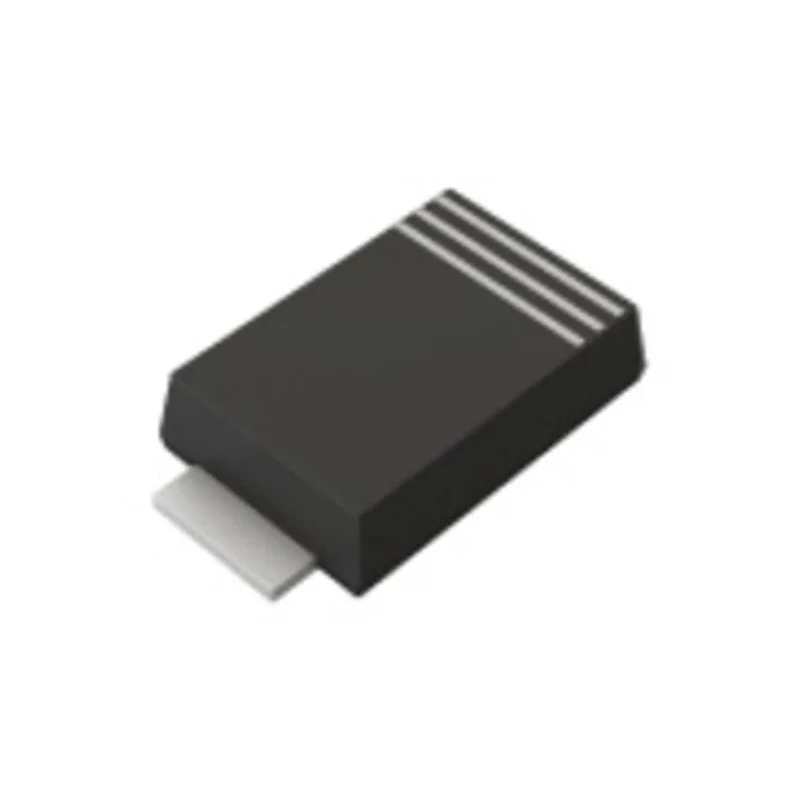

ROHM 40 V 3 A Schottky Barrier Diode 2-Pin Surface Mount SOD-128 RB050LAM-40TR
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | ROHM |
| Height | 1.05mm |
| Length | 3.9mm |
| Model | RB050LAM-40TR |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | RB050LAM |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 550mV |
Key Features
- Low forward voltage ensures energy-efficient rectification.
- Compact 2-pin SOD-128 package suitable for surface mount applications.
- High peak non-repetitive forward surge current of 80A for transient tolerance.
- Wide operating temperature range from -55°C to 150°C for reliable performance.
- Peak reverse current of 100μA minimizes leakage for better circuit stability.
- Schottky diode configuration ideal for fast switching and low loss power conversion.
- Manufactured in Japan ensuring quality and reliability.
Product Description
ROHM RB050LAM-40TR is a high-reliability Schottky barrier diode designed for efficient rectification in electronic components and power applications. Featuring a maximum continuous forward current of 3A and a peak reverse repetitive voltage of 40V, this device is housed in a compact 2-pin surface mount SOD-128 package.
Its ultra-low forward voltage reduces power dissipation and increases system efficiency, making it suitable for power supply circuits, switching power supplies, and voltage clamping applications. The diode supports a high peak non-repetitive forward surge current of 80A, allowing it to withstand transient events without damage.
Operating temperature ranges from -55°C to 150°C enable reliable functionality under harsh environmental conditions. The device's low peak reverse current of 100μA contributes to improved energy performance and minimal leakage currents.
With precise mechanical dimensions of length 3.9mm, width 2.7mm, and height 1.05mm, the RB050LAM-40TR fits compact PCB layouts and supports surface mounting techniques, facilitating modern electronics manufacturing.
Low forward voltage for energy-efficient rectification. Compact 2-pin SOD-128 surface mount package. High non-repetitive surge current tolerance (80A). Wide operating temperature range (-55°C to 150°C). Minimal peak reverse current (100μA) for circuit stability.
Precise small form factor dimensions (3.9 x 2.7 x 1.05 mm). Schottky barrier diode configuration for fast switching speed. Produced in Japan, ensuring high quality standards.
This diode is widely applicable in industrial, laboratory, telecommunications, and consumer electronics for rectification, voltage clamping, and power conversion tasks. It is an essential component in the design and repair of advanced electronic circuits where low forward voltage and fast switching are critical.
Explore more in our Electronics & Electricals section specializing in Semiconductor Schottky Diodes & Rectifiers for reliable component sourcing and engineering solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the RB050LAM-40TR is 3A.
This model has a peak reverse repetitive voltage rating of 40V.
The diode is housed in a compact 2-pin surface mount SOD-128 package.
It operates within a temperature range of -55°C to 150°C.
The peak non-repetitive forward surge current is rated at 80A.
The peak reverse current is 100μA, which minimizes leakage for better circuit stability.
The dimensions are 3.9mm in length, 2.7mm in width, and 1.05mm in height.
It is a Schottky rectifier, which is ideal for fast switching and low loss power conversion.
This diode is suitable for power supply circuits, switching power supplies, and voltage clamping applications.
The RB050LAM-40TR is manufactured in Japan, ensuring quality and reliability.
The maximum forward voltage is 550mV, contributing to energy-efficient rectification.
This diode has a pin count of 2, suitable for surface mount applications.
