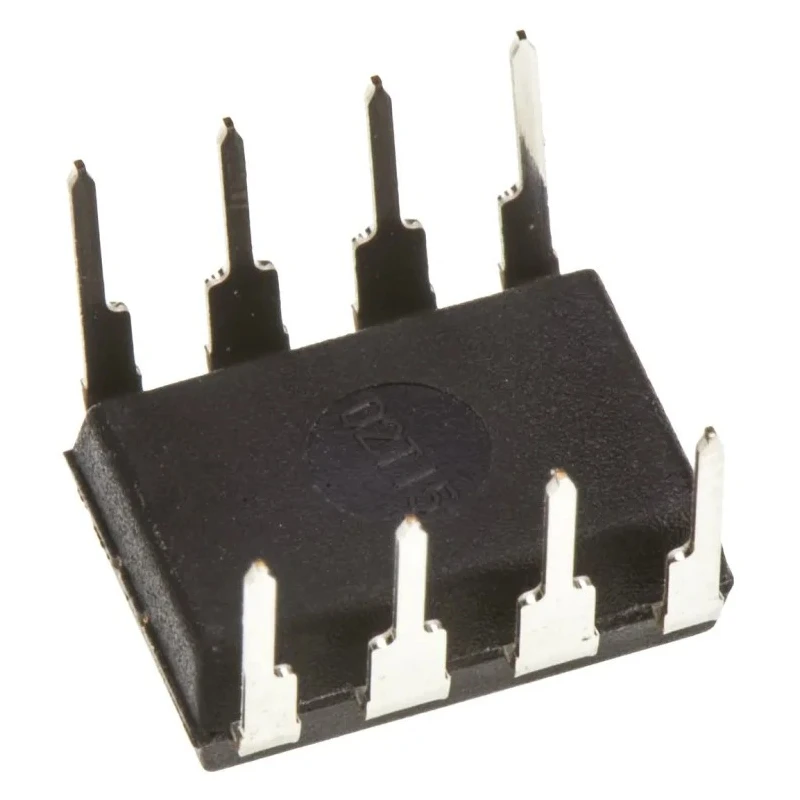

Texas Instruments Operational Amplifier 1.7 MHz Gain Bandwidth Product, 8-Pin PDIP Package TLC252CP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TLC252CP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLC252 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.7MHz |
| Input Bias Current | 600 pA |
| Vos - Input Offset Voltage | 12 mV |
| Slew Rate | 3.6V/μs |
| Input Offset Current | 300 pA |
Key Features
- Features a low power LinCMOS design for efficient operation.
- Gain bandwidth product of 1.7 MHz suitable for high-frequency analog signal processing.
- Operates with a supply voltage range from 3 V to 16 V.
- Input offset voltage of 12 mV and input bias current of 600 pA ensure precise performance.
- Slew rate of 3.6 V/μs allows rapid output signal changes.
- Operating temperature range from 0°C to 70°C supports various environmental conditions.
- Comes in a through-hole 8-pin PDIP package for easy PCB integration.
- Package dimensions approximately 9.81mm length, 6.35mm width, and 4.57mm height.
Product Description
Texas Instruments TLC252CP is a dual channel operational amplifier featuring a 1.7 MHz gain bandwidth product and housed in an 8-pin PDIP package. Designed for low power LinCMOS technology, this amplifier offers efficient performance, making it suitable for diverse applications in electronics circuitry that require high-frequency and precise analog signal processing.
The device supports a supply voltage range from 3 V to 16 V, allowing for flexible power configurations. Its input offset voltage of 12 mV and input bias current of 600 pA provide accurate signal amplification with minimal error. Additionally, the slew rate of 3.6 V/μs enables quick response times to changes in input signals.
Operating reliably within a temperature range of 0°C to 70°C, the TLC252CP is ideal for standard industrial and consumer electronics environments. The device is mounted through-hole in a PDIP package measuring approximately 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, facilitating straightforward PCB assembly.
This operational amplifier finds application in instrumentation, signal conditioning, filtering, and other analog circuits requiring medium bandwidth and low power consumption. Its dual channel configuration supports compact designs and efficient use of PCB real estate.
Low power LinCMOS operational amplifier design for efficiency. 1.7 MHz gain bandwidth product suitable for high-frequency signals. Wide supply voltage range between 3 V and 16 V. Input offset voltage of 12 mV and bias current of 600 pA for accuracy.
Slew rate of 3.6 V/μs ensures fast signal response. Reliable operation within 0°C to 70°C temperature range. Through-hole 8-pin PDIP package for easy mounting. Compact package dimensions ensure PCB space optimization. Explore the Texas Instruments line of Operational Amplifiers on EnvMart for your industrial, laboratory, and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.7 MHz, making it suitable for high-frequency analog signal processing.
It operates within a supply voltage range of 3 V to 16 V, allowing for flexible power configurations.
The input offset voltage for this operational amplifier is 12 mV, which helps ensure accurate signal amplification.
The slew rate of the TLC252CP is 3.6 V/μs, allowing for rapid output signal changes in response to input variations.
This model operates reliably within a temperature range of 0°C to 70°C, suitable for various environmental conditions.
The package dimensions are approximately 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
This operational amplifier features a dual channel configuration, supporting compact designs and efficient use of PCB space.
The input bias current is 600 pA, contributing to its precise performance in signal amplification.
It utilizes a through-hole mounting type, which facilitates easy integration into PCB designs.
This operational amplifier is suitable for applications in instrumentation, signal conditioning, filtering, and other analog circuits requiring medium bandwidth.
The input offset current is 300 pA, which is relevant for maintaining accuracy in signal processing.
The country of origin for this operational amplifier is India.
