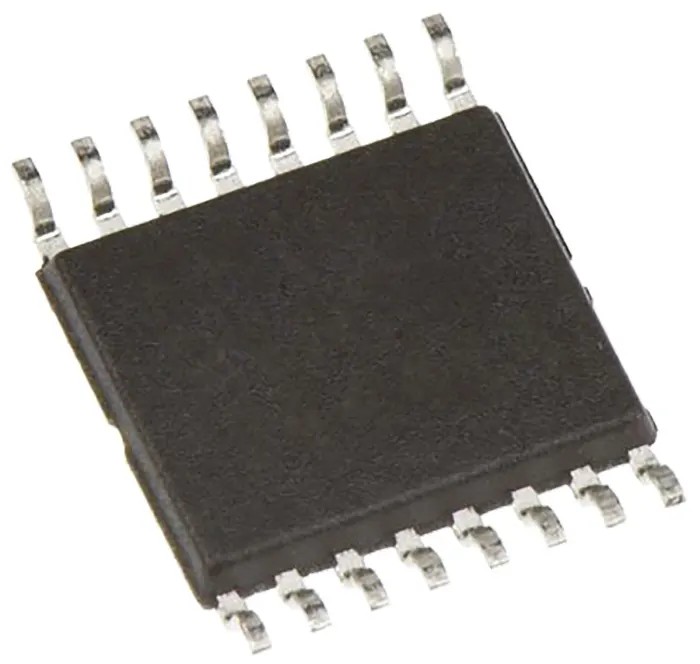

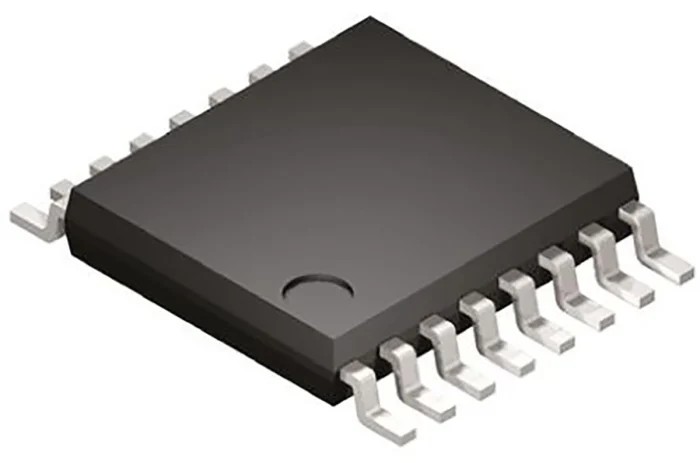

Texas Instruments 2-Channel Line Transceiver Non-Inverting 3-5.5V 16-Pin TSSOP SN65C3232EPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | SN65C3232EPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | SNx5C3232E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Dual Channel Transceiver |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | SN65 |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- This dual channel transceiver features single-ended input and non-inverting polarity for reliable signal conversion.
- It is designed for RS-232 communications, complying with TIA/EIA-232-F and ITU v.28 standards.
- The device incorporates ESD protection up to ±15 kV Human Body Model and ±8 kV contact discharge.
- Each transceiver includes two line drivers and two line receivers, supporting data rates up to 1 Mbps.
- Operating temperature range spans from -40°C to 85°C, making it suitable for various environments.
- The compact 16-pin TSSOP package measures 5.1 mm length, 4.5 mm width, and 1.2 mm height.
- Power consumption is low with a typical supply current of 1 mA.
- This component is ideal for industrial and communication applications requiring reliable line interface ICs.
Product Description
Texas Instruments SN65C3232EPW is a 2-channel line transceiver designed for RS-232 communications, featuring non-inverting logic and surface mount in a 16-pin TSSOP package. Operating with a supply voltage range of 3V to 5.5V, it meets or exceeds TIA/EIA-232-F and ITU v.28 standards.
The transceiver supports dual channels, each with two line drivers and two line receivers, capable of data rates up to 1 Mbps. It incorporates robust electrostatic discharge (ESD) protection with withstand ratings of up to ±15 kV on the Human Body Model and ±8 kV for contact discharge, enhancing device reliability in harsh electrical environments.
Its compact footprint, measuring 5.1 mm length by 4.5 mm width and 1.2 mm height, enables high-density PCB designs in industrial, telecommunications, and embedded system applications. The device's low supply current of 1 mA reduces power consumption for energy-efficient designs.
The operating temperature range from -40°C to 85°C ensures performance consistency in diverse environmental conditions. Its input type is single-ended, and the polarity is non-inverting, making it suitable for standard line-driving needs in communications interfaces.
This device provides a reliable RS-232 line interface for industrial and commercial electronic systems. Dual channel design supports simultaneous bidirectional data transmission. Wide operating voltage and temperature ranges fit demanding application requirements.
Compact TSSOP package supports surface-mount assembly and space-saving layouts. Robust ESD protection safeguards against electrical surges and transients. Low supply current optimizes power efficiency in system designs. Complies with international RS-232 standards for interoperability.
Ideal for communications, industrial control, and embedded applications. Explore more electronic components and Line Interface ICs to suit your industrial and laboratory electronic interface needs at EnvMart.
