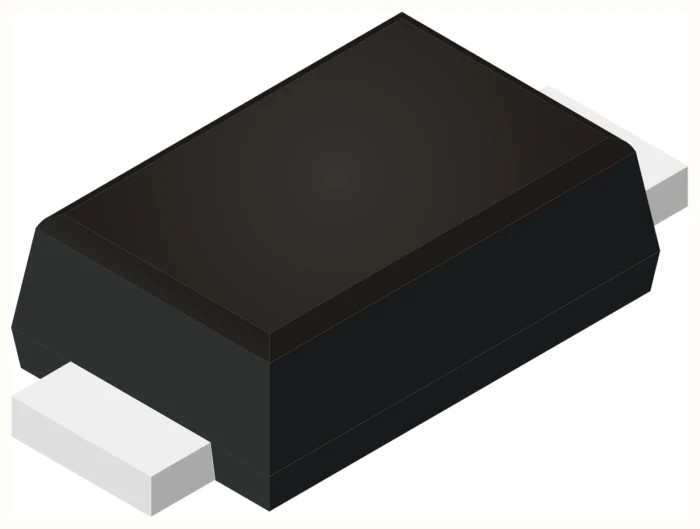

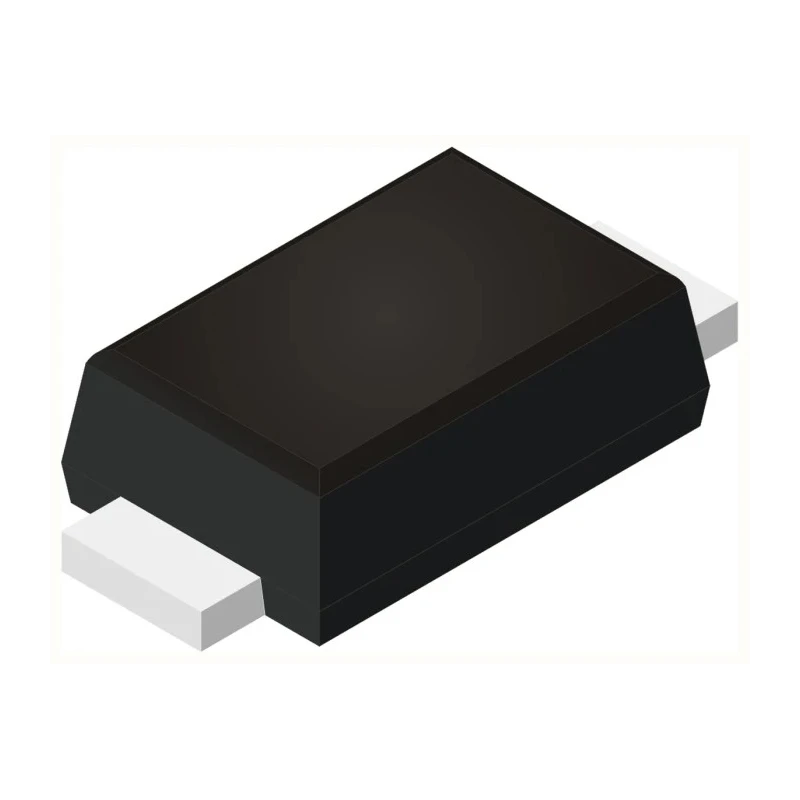

ROHM 60 V 3 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-123FL RBR3MM60ATR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 60 V 3 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-123FL RBR3MM60ATR

Name: ROHM 60 V 3 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-123FL RBR3MM60ATR
Brand: ROHM
SKU: 214473
Price: 0.21 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.9mm
Length	2.7mm
Model	RBR3MM60ATR
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-123FL
Pin Count	2
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	60V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	0.66V

Key Features

This diode features low forward voltage of 0.66 V for efficient power conversion.
It supports a peak non-repetitive forward surge current of up to 30 A.
The device is designed to operate up to a maximum temperature of 150° C ensuring high reliability.
Its dimensions are 2.7 mm length, 1.7 mm width, and 0.9 mm height, suitable for compact PCB layouts.
It has a 2-pin configuration making it compatible with surface mounting technology.
The diode exhibits low leakage current with a peak reverse current of 100 μA.
Ideal for power management and rectification applications in electronic circuits.

Product Description

ROHM RBR3MM60ATR is a high-reliability Schottky diode designed for efficient rectification in electronic and power management applications. This small power mold type (PMDU) device is surface-mounted in a compact SOD-123FL package, allowing space-saving circuit designs.

The diode supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 60 V, suitable for a variety of industrial and commercial applications. It is designed to withstand a peak non-repetitive forward surge current of 30 A, making it robust against current spikes.

With a maximum forward voltage of 0.66 V and peak reverse current of only 100 μA, this diode ensures low power loss and high efficiency during operation. The device reliably functions at temperatures up to 150° C, enhancing durability in demanding environments.

The precise dimensions of 2.7 mm in length, 1.7 mm in width, and 0.9 mm in height support compact PCB assembly and surface mount technology. This makes the RBR3MM60ATR suitable for applications in power supplies, voltage clamping, and switching circuits.

Low forward voltage enhances energy efficiency. Small footprint ideal for space-constrained PCB layouts. High surge current capacity provides robustness against transient conditions. Reliable operation at elevated temperatures.

Low leakage current ensures stable performance. Surface mount design suits automated assembly processes. Suitable for industrial, laboratory, and commercial electronic applications.

ROHM semiconductors are trusted components for manufacturers requiring quality and performance. Explore the Electronics & Electricals category on EnvMart for similar semiconductor devices and components.
