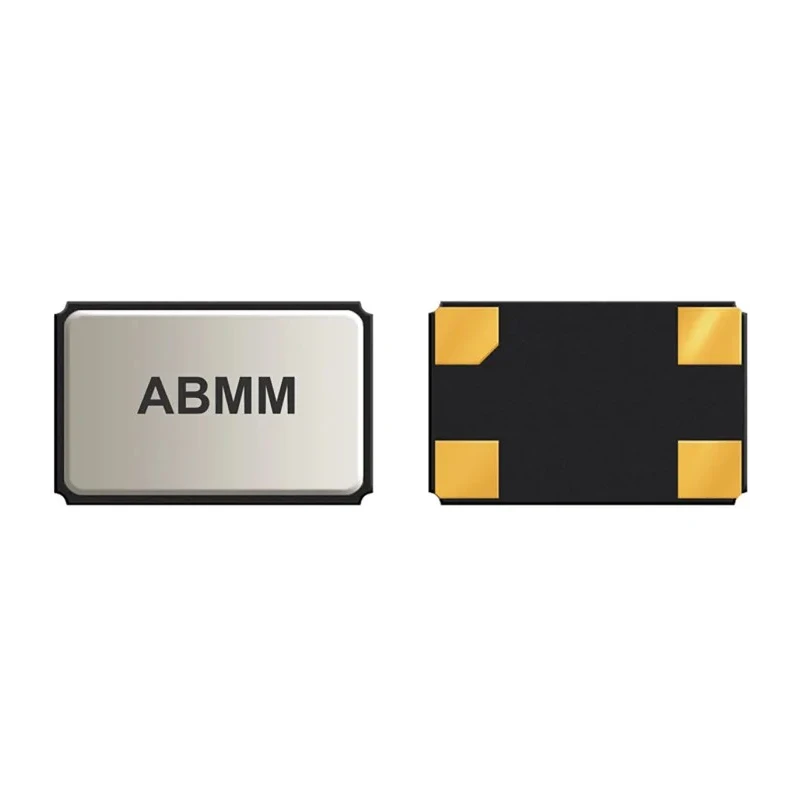

Abracon 12 MHz Crystal Unit Surface Mount 4-Pin 7.2mm x 5.2mm x 1.3mm ±20 ppm Frequency Tolerance ABMM-12.000MHZ-B2-T

Abracon ABMM-12.000MHZ-B2-T is a precision 12 MHz crystal unit designed for surface mount applications with a 4-pin configuration. Measuring 7.2 mm by 5.2 mm and 1.3 mm high, this component offers a frequency tolerance of ±20 ppm and frequency stability up to ±50 ppm, ideal for high-performance oscillators.

This crystal unit features a load capacitance of 18 pF and a series resistance of 50 Ω, ensuring stable and accurate oscillation. It is rated for operation in temperature ranges from -20°C to 70°C, suitable for use in telecommunications, computing, and industrial devices.

The surface mount package type and tape and reel packaging facilitate automated PCB assembly, improving production efficiency. Compliance with RoHS and REACH directives ensures the product meets environmental safety standards.

Common applications include computers, modems, microprocessors, communication equipment, and testing instruments requiring precise and stable frequency references. This crystal unit features a standard frequency of 12 MHz for stable oscillation.

The frequency tolerance is tightly controlled at ±20 ppm ensuring accurate performance. Its surface mount design with 4 pins facilitates easy PCB integration. Physical dimensions measure 7.2 mm in length, 5.2 mm in width, and 1.3 mm in height.

Load capacitance is specified at 18 pF to meet circuit requirements. Series resistance is 50 ohms for optimal signal quality. Rated for operation from -20°C to 70°C, suitable for diverse environments. Complies with RoHS and REACH standards confirming environmental safety.

Provided in tape and reel packaging format for manufacturing convenience.

As a reliable crystal solution from Abracon, this unit supports diverse industrial and commercial electronics. Explore more Crystal Units and electronic components at EnvMart for all your design and manufacturing needs.
