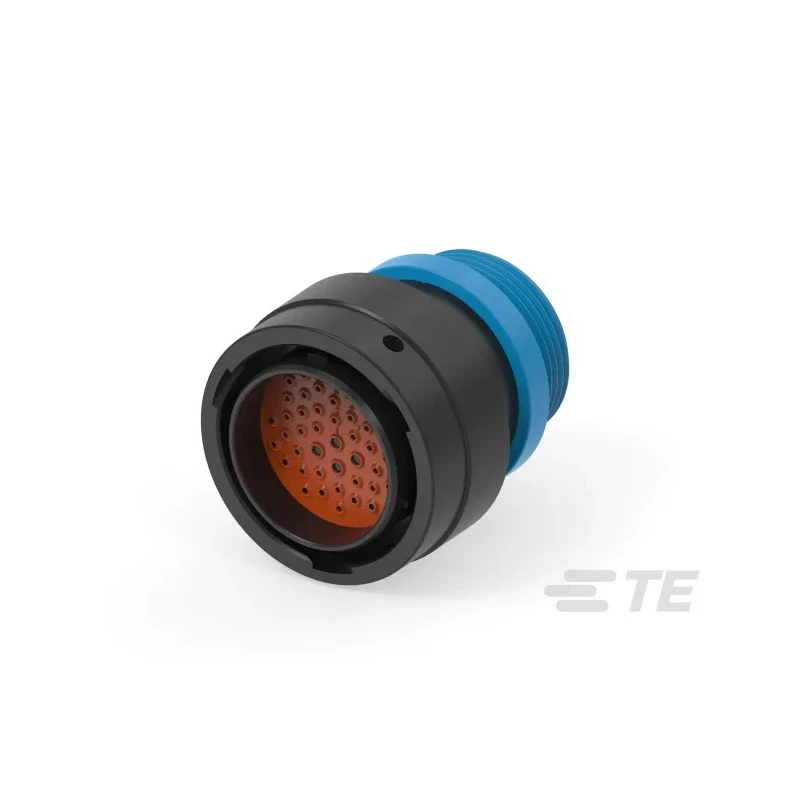

Deutsch Circular Connector 47 Contacts Bulkhead Mount Plug Male IP67 Thermoplastic Housing 250V HDP26-24-47PE-L015

Deutsch HDP26-24-47PE-L015 is a high-quality industrial circular connector designed to provide rugged and reliable multipole connections with 47 contacts. This plug features a bulkhead mount design suitable for panel installation with robust thermoplastic housing that withstands harsh industrial environments.

Its contacts are made of copper with nickel plating delivering excellent conductivity and enhanced corrosion resistance. The connector supports a voltage rating of 250V and current ratings of 13A and 7.5A depending on contact size, making it suitable for power and signal applications within industrial machinery, manufacturing, and automation systems.

Termination is performed via crimping, and the connector uses a bayonet mating type to ensure fast and secure locking. Its shell size is 24, and it has a straight orientation with male contacts in a 47-pole format. The connector operates reliably between -55°C to 125°C, ideal for extreme temperature conditions.

This Deutsch HDP20 series connector is sealed to IEC IP67 standards, protecting against dust ingress and water immersion. It also provides excellent durability with a minimum of 100 mating cycles and vibration resistance up to 20g at 10-2000Hz. Additionally, it meets corrosion resistance criteria with 48 hours of salt spray testing per MIL STD 1344 requirements.

Common applications include industrial control panels, heavy machinery, automotive equipment, and electrical power distribution systems requiring secure and robust circular multipin connections. For compatible contacts and crimp tools, see Deutsch's range of size 12, size 16, and size 20 solid contacts.

Constructed with durable thermoplastic housing for robust industrial use. Features nickel-plated copper contacts ensuring reliable electrical performance. Rated for 250V voltage and currents of 13A and 7.5A depending on contact size.

Designed for crimp termination and bayonet mating type for secure connections. Operates reliably between -55°C and 125°C temperature range. Shell size 24 with straight orientation for standard plug applications. Male contact gender with a total of 47 poles for multipole connectivity.

Sealed to IP67 for dust and water ingress protection suitable for harsh environments. Exceeds corrosion resistance standards with 48 hours salt spray to MIL STD 1344. Vibration proof up to 20g at 10-2000Hz and rated for a minimum of 100 mating cycles.

Explore Deutsch's wide range of Industrial Circular Connectors and accessories at EnvMart for reliable, performance-driven components suited for challenging industrial applications.
