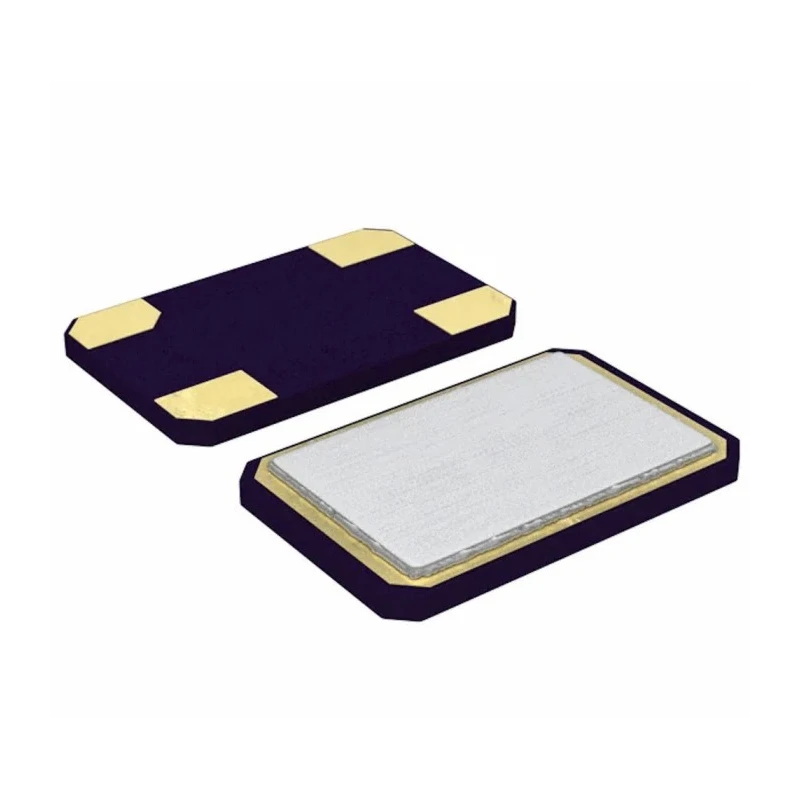

Abracon 16 MHz Crystal ±10 ppm Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B-16.000MHZ-10-1-U-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 16 MHz Crystal ±10 ppm Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B-16.000MHZ-10-1-U-T

Name: Abracon 16 MHz Crystal ±10 ppm Surface Mount 5 mm x 3.2 mm x 1.1 mm ABM3B-16.000MHZ-10-1-U-T
Brand: Abracon
SKU: 150739
Price: 0.69 USD
Availability: InStock



Category Crystal Units Brand Abracon Condition New

Specifications

Country of Origin	China
Brand	Abracon
Height	1.1mm
Length	5mm
Model	ABM3B-16.000MHZ-10-1-U-T
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	ABM3B
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	REACH, RoHS
Standard Frequency	16MHz
Load Capacitance	10pF
Series Resistance	70Ω

Key Features

High precision 16 MHz fundamental frequency crystal for stable oscillation.
Surface mount package with ceramic case and metal lid for durability.
Load capacitance of 10 pF suitable for various wireless and communication applications.
Operating temperature range from -10°C to 60°C ensures wide usability.
Series resistance of 70 Ω compatible with high-density electronics.
Packaged in tape and reel for efficient automated PCB assembly.
Ideal for cellular telephones, pagers, PCMCIA, and test equipment.

Product Description

Abracon ABM3B-16.000MHZ-10-1-U-T is a high-precision 16 MHz crystal unit designed for surface mount applications. Its compact ceramic case (5 mm length x 3.2 mm width x 1.1 mm height) with a metal lid ensures robustness and reliability in industrial and commercial uses requiring stable frequency sources.

This crystal provides ±10 ppm frequency tolerance and frequency stability, making it suitable for demanding electronic circuits where timing accuracy is critical. The 10 pF load capacitance is optimized for standard oscillator circuits.

With a series resistance rated at 70 Ω and an operational temperature range from -10°C to 60°C, this crystal is well suited for high-density applications in cellular telephones, wireless devices, pagers, PCMCIA modules, and communication test equipment.

Its tape and reel packaging enables efficient pick-and-place assembly for manufacturing processes. Manufactured in China, the ABM3B series crystals comply with REACH and RoHS standards, ensuring environmental and health safety compliance.

High precision 16 MHz fundamental frequency crystal for stable oscillation. Surface mount package with ceramic case and metal lid for durability. Frequency tolerance and stability of ±10 ppm for reliable performance. Load capacitance of 10 pF suitable for various wireless and communication applications.

Operating temperature range from -10°C to 60°C ensures wide usability. Series resistance of 70 Ω compatible with high-density electronics. Packaged in tape and reel for efficient automated PCB assembly. Ideal for cellular telephones, pagers, PCMCIA, and test equipment.

This product is essential for precision frequency control in industrial electronics, telecommunications, and wireless communication manufacturing processes. Its compact size and surface mount design facilitate integration in modern surface mount technology (SMT) assemblies.
