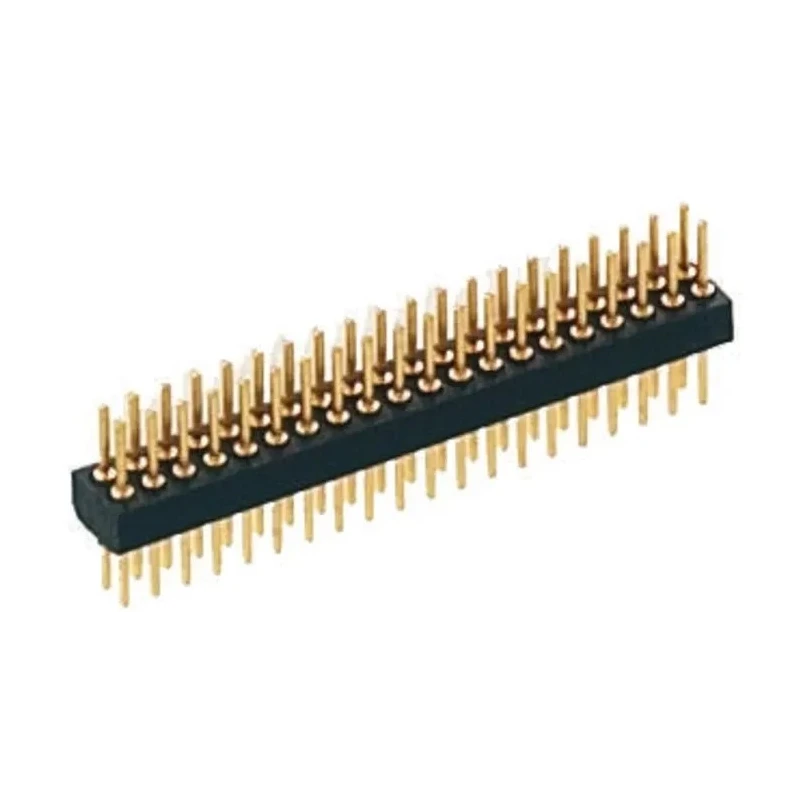

Preci-Dip 852 Series Straight Through Hole Pin Header, 24 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 852-80-024-10-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 852 Series Straight Through Hole Pin Header, 24 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 852-80-024-10-001101

Name: Preci-Dip 852 Series Straight Through Hole Pin Header, 24 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 852-80-024-10-001101
Brand: Preci-Dip
SKU: 215355
Price: 6.74 USD
Availability: InStock



Category Electronics Components Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	852
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Tin
Number of Contacts	24
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

The pin header is designed for through-hole mounting on PCBs.
Contacts are made of brass with tin plating for reliable conductivity.
Housing material is fibreglass reinforced polyethylene terephthalate for durability.
Operating temperature ranges from -55°C to 125°C, suitable for various environments.
The component supports voltages up to 150V and continuous current rating of 1A.
The header has a straight orientation and uses solder termination type.
The body height is approximately 2.1 - 2.2 mm, with pin diameters of 0.41 mm.
Unshrouded design allows easy access to pins for flexible circuit connections.

Product Description

Preci-Dip presents the 852 Series Straight Through Hole Pin Header model 852-80-024-10-001101, a high-quality electronic connector designed for PCB applications. This pin header features 24 male contacts arranged in 2 rows with a 1.27 mm pitch, enabling precise and compact circuit board connection.

The header is built with a fibreglass reinforced polyethylene terephthalate housing that ensures durability and resistance to mechanical stress. Its brass contacts are tin plated to provide excellent electrical conductivity and corrosion resistance. The unshrouded straight design allows versatile connectivity and easy soldering for through-hole PCBs.

Rated for 150 volts and 1 ampere current, this component works reliably under a wide range of operating temperatures from -55°C to 125°C, making it suitable for industrial, commercial, and laboratory electronics applications. The solder termination provides a secure mechanical and electrical joint on PCBs.

This connector is manufactured in Switzerland, reflecting superior craftsmanship and compliance with quality standards. It is ideal for use in electronic assemblies requiring robust and dependable PCB connections.

24 male contacts in a 2-row configuration with 1.27 mm pitch. Fibreglass reinforced PET housing for mechanical stability. Brass tin-plated contacts for enhanced conductivity and corrosion resistance. Through-hole solder mount suitable for various PCB designs.

Operating temperature range from -55°C to 125°C. Voltage rating up to 150V and current rating of 1A. Unshrouded straight orientation for easy access and flexible usage. Swiss manufactured quality ensuring reliability.

The Preci-Dip 852 series connectors are widely used in electronics manufacturing, prototyping, and repair. Their precision and durability support high reliability in electronics, automation, instrumentation, and communication industry sectors.
