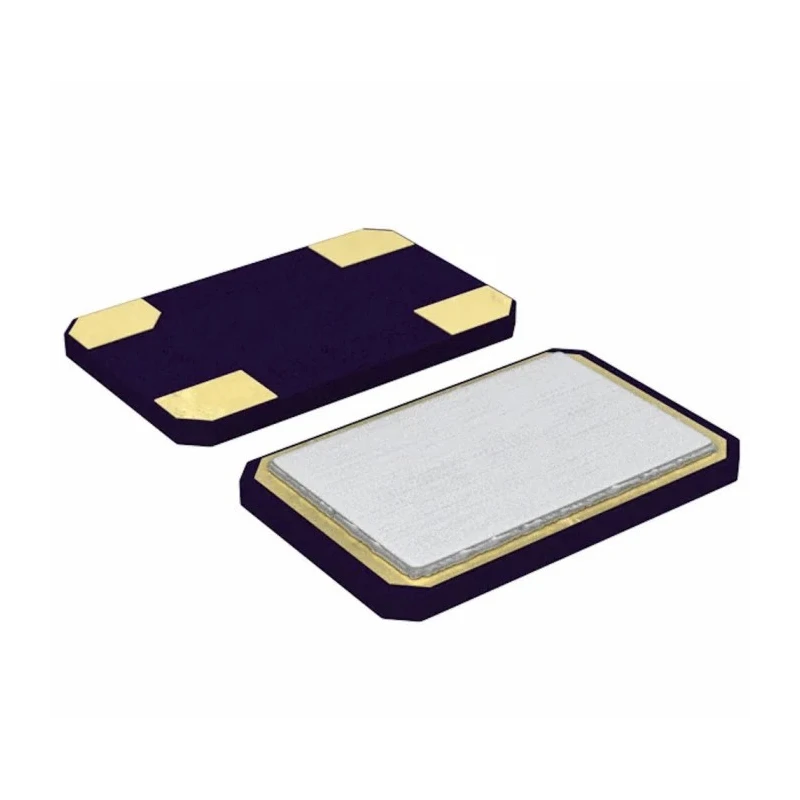

Abracon 16 MHz Crystal ±10 ppm Surface Mount Ceramic Package 5 mm x 3.2 mm x 1.1 mm ABM3B

Abracon ABM3B series 16 MHz crystal units are precision surface mount devices offering ±10 ppm frequency tolerance with fundamental mode operation. The ceramic package with metal lid construction ensures mechanical strength and stable oscillation characteristics. Typical physical dimensions are 5 mm by 3.2 mm with a height of 1.1 mm, suitable for compact PCB designs requiring high-frequency control.

These crystals have a load capacitance of 18 pF and a series resistance of 70 Ω. They maintain frequency stability of ±50 ppm over a temperature operating range from -20°C to 70°C, making them well suited for high density applications such as cellular telephones, PCMCIA cards, pagers, and wireless communication devices. Optimized for reflow soldering and seam sealing, the units are supplied on tape and reel packaging, facilitating automated surface mount assembly.

The ABM3B 16 MHz crystals meet REACH and RoHS standards, supporting environmentally responsible manufacturing. They are an essential component for communication and test equipment requiring precise frequency reference signals in industrial, telecommunications, and consumer electronics.

The ceramic SMD package ensures durability during handling and soldering. Frequency tolerance and stability minimize signal drift in critical applications. Compact physical size enables use in miniaturized electronic circuits.

Compliance with international environmental standards ensures regulatory compatibility. Tape and reel packaging supports high-volume, automated manufacturing lines.

This product is classified under Electronics Components > Crystals, Oscillators & Resonators at EnvMart, providing reliable oscillator solutions for industrial, telecommunications, and consumer electronic systems.
