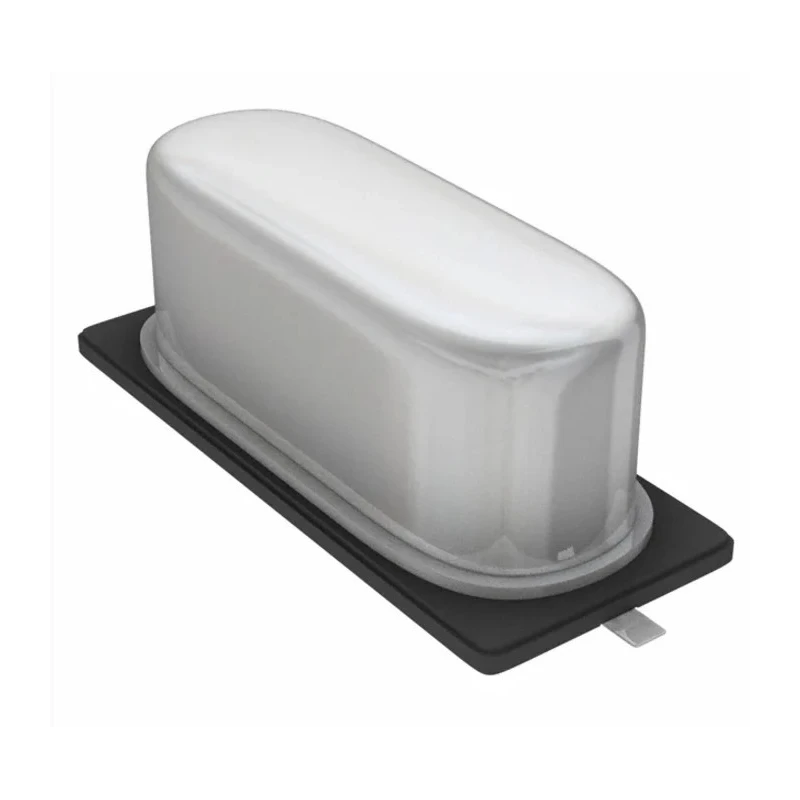

Abracon 24 MHz Surface Mount Crystal 18 pF Load Capacitance HC-49 11.4mm x 4.7mm x 3.3mm ABLS2-24.000MHZ-D4YF-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 3.3mm |
| Length | 11.4mm |
| Model | ABLS2-24.000MHZ-D4YF-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Surface |
| Series | ABLS2 |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Standard Frequency | 24MHz |
| Load Capacitance | 18pF |
| Series Resistance | 100Ω |
Key Features
- Standard operating temperature range from -40°C to 85°C ensures reliability.
- Compact dimensions of 11.4 mm length, 4.7 mm width, and 3.3 mm height for space-constrained designs.
- Series resistance of 100 Ω maintains stable signal integrity.
- RoHS and REACH compliant meeting environmental standards.
- Suitable for applications in computers, modems, microprocessors, and wireless devices.
- Package supplied in tape and reel for efficient automated assembly.
- HC-49 low-profile surface mount package reduces height for thin equipment.
Product Description
The Abracon ABLS2-24.000MHZ-D4YF-T is a high-stability 24 MHz crystal unit designed for surface mount applications. Housed in a compact HC-49 package measuring 11.4 mm x 4.7 mm x 3.3 mm, it features a low profile ideal for space-sensitive electronics.
This crystal provides a load capacitance of 18 pF and tight frequency tolerance of ±30 ppm, ensuring precise oscillation required in communication and computing equipment. The series resistance of 100 Ω supports signal stability across a wide temperature range from -40°C to 85°C.
Compliance with RoHS and REACH directives guarantees the product meets environmental and safety regulations. The ABLS2 series crystals are widely used in microprocessor clock timing, modems, wireless communication devices, and various embedded system applications.
Packaged in tape and reel format, the crystal supports efficient pick-and-place assembly for mass production environments. Its low height minimizes profile impact on compact PCB layouts.
Standard operating temperature range from -40°C to 85°C ensures reliability. Compact dimensions of 11.4 mm length, 4.7 mm width, and 3.3 mm height for space-constrained designs. Series resistance of 100 Ω maintains stable signal integrity.
RoHS and REACH compliant meeting environmental standards. Suitable for applications in computers, modems, microprocessors, and wireless devices. Package supplied in tape and reel for efficient automated assembly. HC-49 low-profile surface mount package reduces height for thin equipment.
Frequency stability of ±30 ppm for accurate timing and frequency control.
This crystal unit is ideal for use in industrial, computing, wireless communication, and electronic manufacturing environments. EnvMart provides a comprehensive selection of electronic components including precision crystals like the Abracon ABLS2 series for reliable and accurate frequency generation needs.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 24 MHz, providing precise oscillation for various applications.
This crystal unit has compact dimensions of 11.4 mm in length, 4.7 mm in width, and 3.3 mm in height, making it suitable for space-constrained designs.
The load capacitance of this model is 18 pF, which is essential for its operation in electronic circuits.
It features a series resistance of 100 Ω, which helps maintain stable signal integrity during operation.
The standard operating temperature range for this unit is from -40°C to 85°C, ensuring reliability in various environments.
It is supplied in a tape and reel format, which facilitates efficient automated assembly in production environments.
This model utilizes a surface mount type, specifically in an HC-49 package, which is designed for low-profile applications.
The crystal unit is compliant with RoHS and REACH standards, ensuring it meets environmental and safety regulations.
It is suitable for applications in computers, modems, microprocessors, and wireless devices, among others.
The frequency stability of this model is ±30 ppm, which is critical for accurate timing and frequency control.
The country of origin for this crystal unit is China, as specified in the product details.
This crystal unit is part of the ABLS2 series, known for high stability in frequency generation applications.
