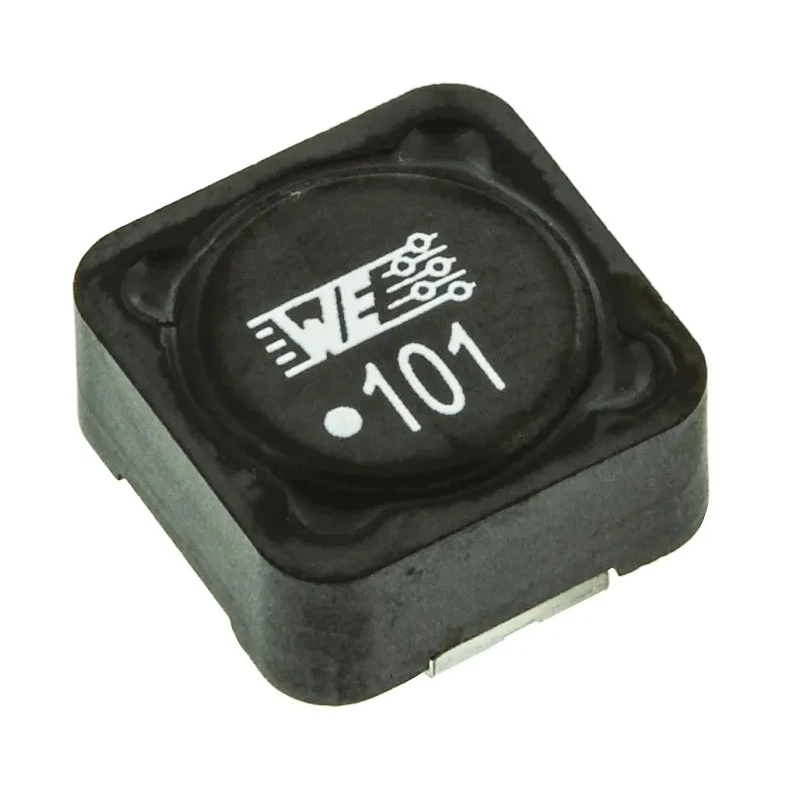

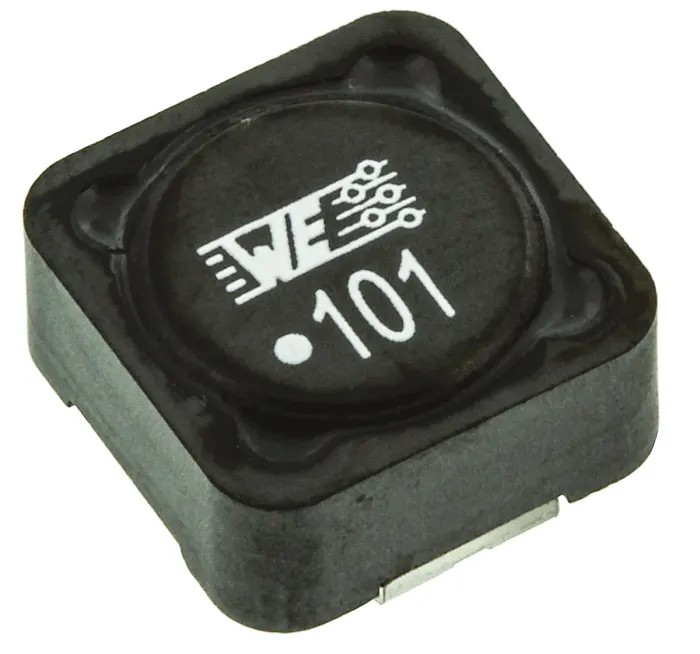

Wurth Elektronik WE-PD 1260 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100μH ±20 % 1.53A Idc 74477120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8mm |
| Brand | Wurth Elektronik |
| Height | 6mm |
| Length | 12mm |
| Model | 74477120 |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 62024-2-2020 |
| Package/Case | 1260 |
| Maximum DC Current | 1.53A |
| Maximum DC Resistance | 160mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4.9MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Recommended solder profile | Reflow |
Key Features
- Shielded construction reduces electromagnetic interference and leakage fields.
- Rated for operating temperatures from -40°C to 125°C ensuring durability.
- Meets automotive standard AEC-Q200 for reliable automotive applications.
- Features a ferrite core for high storage capacity and low self-losses.
- Surface mount termination style suited for automated PCB assembly.
- Maximum DC resistance of 160mΩ minimizes power losses.
- Recommended solder profile is reflow compatible for manufacturing efficiency.
- Ideal for switching regulators, integrated DC/DC converters, and high efficiency graphics cards.
Product Description
Wurth Elektronik 74477120 WE-PD 1260 shielded wirewound surface mount inductor with a ferrite core features 100μH inductance with ±20 % tolerance and supports a maximum continuous DC current of 1.53A. Designed for reliable performance in electronic circuits, this inductor uses a magnetically shielded metal base (1260 - 1210) construction for minimal electromagnetic interference and leakage fields.
The inductor maintains performance across a wide operating temperature range from -40°C to 125°C, conforming to automotive standard AEC-Q200, making it suitable for automotive and industrial applications. It has a maximum DC resistance of 160mΩ, ensuring efficient power management with low losses.
This component's compact size includes dimensions of 12mm length, 6mm height, and 8mm diameter with surface mount termination style, facilitating automated assembly and high-density PCB layouts. The recommended solder profile is reflow, which aligns with modern manufacturing processes.
Wurth Elektronik WE-PD series inductors provide outstanding magnetic shielding and low self-losses, supporting switching regulators with low operating voltages, integrated DC/DC converters, and applications requiring extremely high efficiency performance, such as graphics cards.
Shielded construction reduces electromagnetic interference and leakage fields. High storage capacity with ferrite core material for optimal magnetic performance. Wide operating temperature range from -40°C to +125°C for versatile use.
Compliant with RoHS, REACH, JEDEC JS709B, and IEC 62024-2-2020 standards. Compact dimensions of 12 x 6 x 8 mm suit high-density surface mount technology. Maximum self-resonant frequency of 4.9 MHz enhances frequency response.
Tape and reel packaging supports efficient production. Recommended for use in switching regulators, DC/DC converters, and graphic card electronics requiring high current handling.
This surface mount inductor addresses demands in industrial electronics, automotive systems, power supply modules, and high-frequency switching applications. For related products, you can explore the Surface Mount Inductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100μH with a tolerance of ±20%.
The maximum continuous DC current supported by this inductor is 1.53A.
It has dimensions of 12mm in length, 6mm in height, and 8mm in diameter.
The maximum operating temperature for this unit is 125°C.
The recommended solder profile is reflow, which is compatible with modern manufacturing processes.
It complies with RoHS, REACH, JEDEC JS709B, and IEC 62024-2-2020 standards.
This inductor features a ferrite core, which provides high storage capacity and low self-losses.
The maximum DC resistance is 160mΩ, which helps minimize power losses.
It is suitable for use in switching regulators, integrated DC/DC converters, and high efficiency graphics cards.
The maximum self-resonant frequency is 4.9 MHz, enhancing its frequency response.
It uses a surface mount termination style, making it suitable for automated PCB assembly.
The country of origin for this inductor is India.
