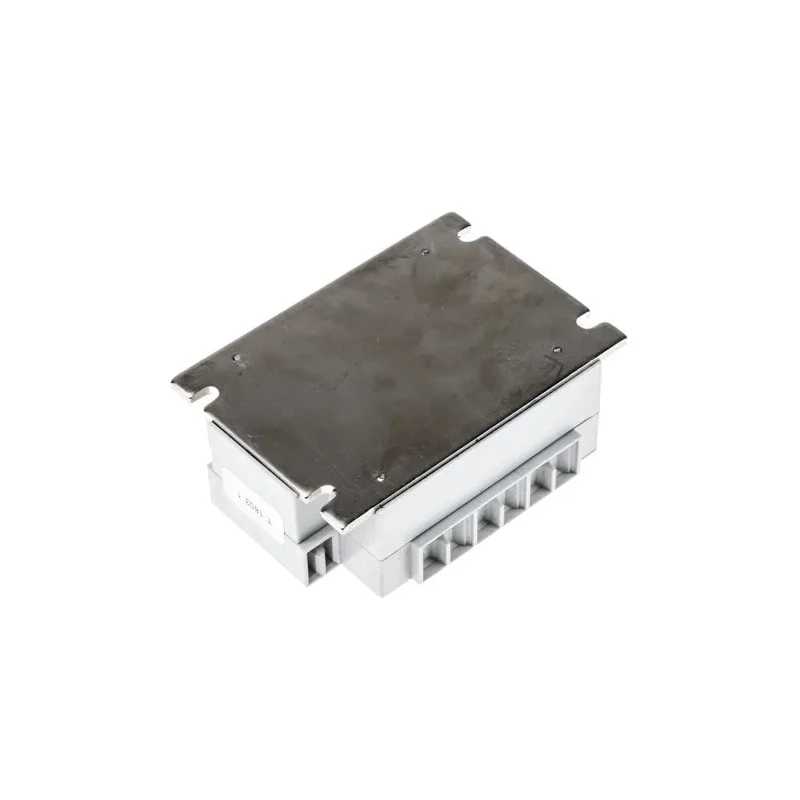

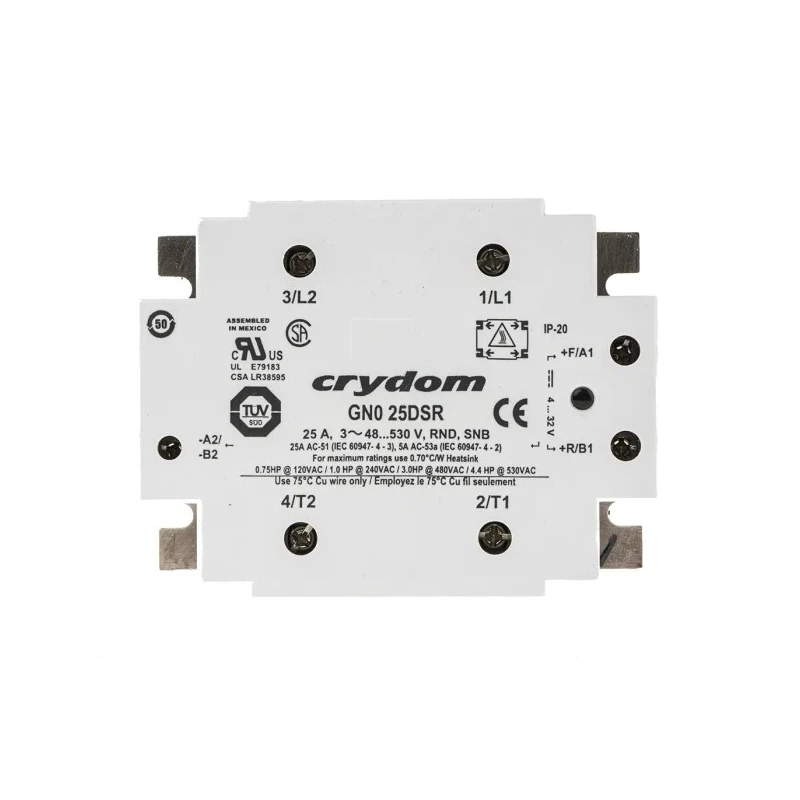

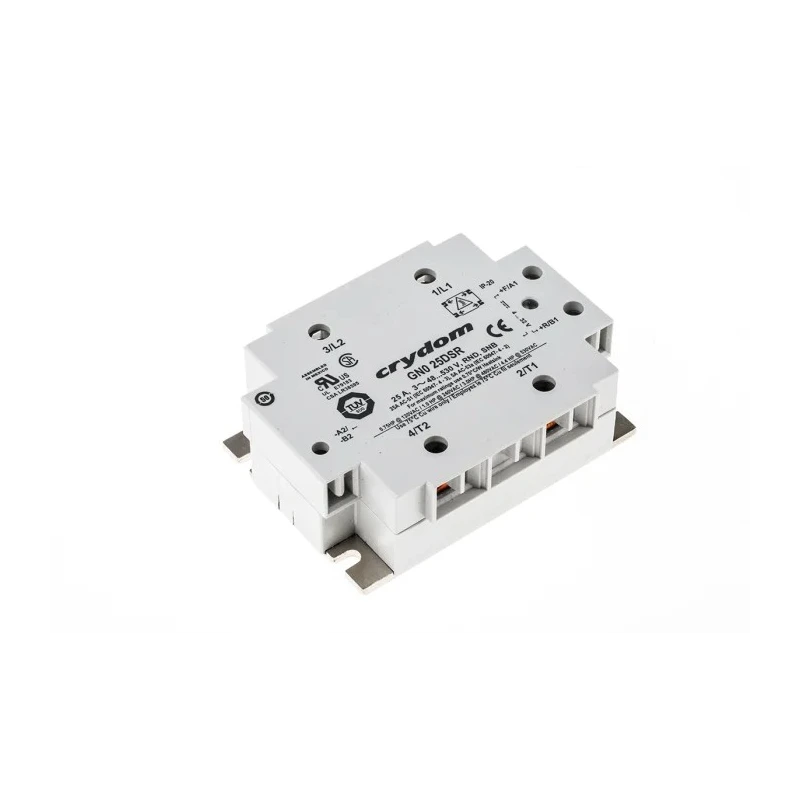

Crydom GN0 Series Solid State Relay Panel Mount 24 A Load 530 Vrms Load 32V dc Control GN025DSR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 79.7mm |
| Length | 101.3mm |
| Model | GN025DSR |
| Mount Type | Panel |
| Output type | SCR |
| Series | GN0 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn-On Switching |
| Maximum Load Current | 24A |
| Standards/Approvals | CE, RoHS |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 6mArms |
| Crouzet Solid State Relay, 25 A Load, 530 V rms Load, 32 V ControlBrand | Crouzet |
Key Features
- Panel mount solid state relay suitable for industrial applications.
- Maximum load current capacity of 24 Amps at 530 Vrms.
- Control voltage range from 4 V dc minimum to 32 V dc maximum.
- Zero voltage turn-on switching function for reduced electrical noise.
- Screw terminal type ensures reliable electrical connections.
- Operating temperature range from -40°C to 80°C for diverse environments.
- Output type is SCR for heavy industrial load switching.
- Complies with CE and RoHS standards ensuring safety and quality.
Product Description
Crydom GN025DSR solid state relay from the GN0 Series is a robust panel mount relay engineered for high-efficiency switching of AC loads. It supports a maximum load current of 24 Amps and can operate at load voltages up to 530 Vrms, controlled by DC voltages ranging from 4 V dc to 32 V dc. Ideal for industrial and commercial electrical systems, this relay features a zero voltage turn-on switching function which helps minimize electrical noise during switching operations.
With a length of 101.3 mm and a height of 79.7 mm, it offers a compact design suited for panel applications where space optimization is critical. The relay uses screw terminals for secure and stable wiring connections, ensuring durability and safety in installations.
It is designed to operate reliably in harsh environments with an operating temperature range of -40°C to 80°C. The SCR output type makes it ideal for heavy industrial loads, making this relay a valuable component in motor controls, heating controls, and other demanding applications.
This solid state relay complies with CE and RoHS standards, highlighting its adherence to important safety, environmental, and quality regulations. Its low off-state leakage current of only 6 mArms helps maintain system efficiency and reduces power loss during standby.
High current capacity supports loads up to 24 A at 530 Vrms. DC control voltage range from 4V to 32V. Zero voltage turn-on function for quiet switching operation. Panel mounting and screw terminal connection for easy installation.
Wide operating temperature range from -40°C to 80°C. SCR output suitable for heavy industrial load switching. Compliant with CE and RoHS standards for safety and environmental adherence. Low off-state leakage current minimizes energy loss.
Typical industrial applications include motor reversing, heating regulation, HVAC systems, and automation processes in manufacturing and electrical control panels. The Crydom GN025DSR solid state relay ensures high reliability and efficient performance in demanding environments.
Explore more industrial electrical components and Solid State Relays from Crydom and other top brands on EnvMart for trustworthy and high-quality automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current capacity is 24 Amps at 530 Vrms.
The control voltage range for this model is from 4 V dc to 32 V dc.
It uses an SCR output type, suitable for heavy industrial load switching.
The operating temperature range is from -40°C to 80°C.
The dimensions are 101.3 mm in length and 79.7 mm in height.
The zero voltage turn-on switching function helps minimize electrical noise during switching operations.
This solid state relay features screw terminal connections for secure wiring.
It complies with CE and RoHS standards, ensuring safety and environmental adherence.
The off-state leakage current is only 6 mArms, which helps maintain system efficiency.
Typical applications include motor reversing, heating regulation, HVAC systems, and automation processes in manufacturing.
The mounting type for this model is panel mount, suitable for various industrial applications.
The country of origin for this solid state relay is India.
