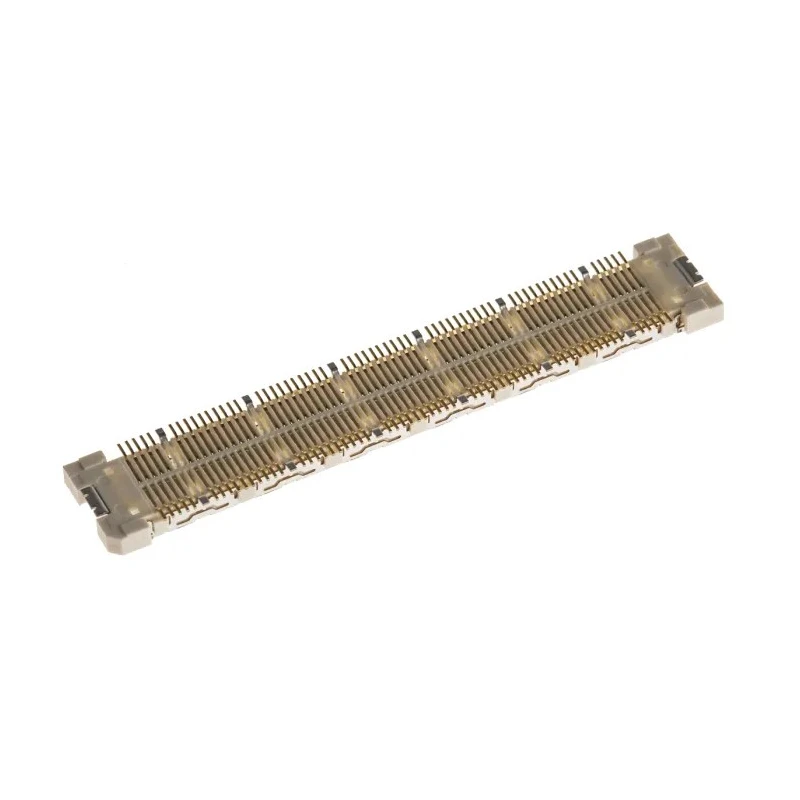

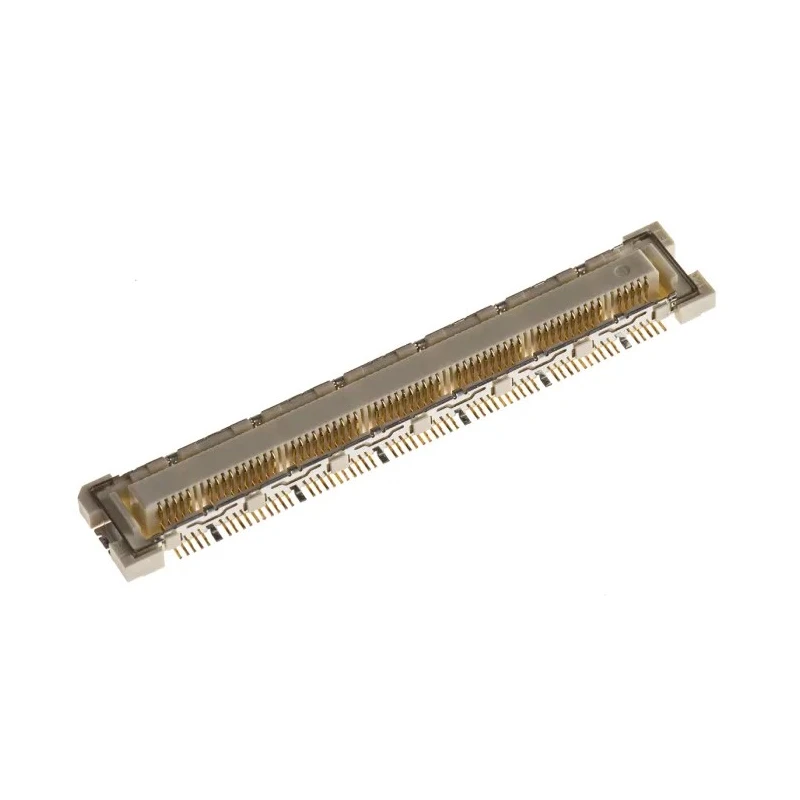

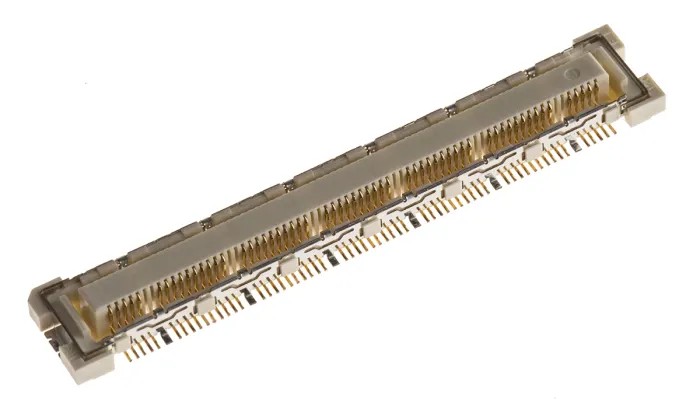

Hirose FunctionMAX FX10 Series Straight Surface PCB Socket, 2 Row, 0.5 mm Pitch, Solder Termination

Hirose FX10B-120S/12-SV(71) FunctionMAX FX10 Series Straight Surface PCB Socket is a precise, high-density connector featuring 2 rows with a 0.5 mm pitch and solder termination, designed to deliver excellent electrical performance for industrial, commercial, and laboratory PCB applications.

Its Liquid Crystal Polymer housing offers durability and resistance to thermal and mechanical stress, while the bronze contacts plated with gold provide superior electrical conductivity and corrosion resistance. The socket supports 300 mA current at a maximum of 50 V, withstanding operating temperatures from -55°C to 85°C, ensuring reliable performance under harsh environmental conditions.

The connector’s 4 mm stacking height facilitates compact multi-board configurations, ideal for use in high-speed, high-density electronic devices. The 10:1 signal to ground ratio further enhances grounding stability and reduces crosstalk, making it suitable for applications such as medical devices, industrial controllers, industrial motors, servers, measurement equipment, smart meters, base station transceivers, and programmable logic controllers (PLCs).

This FunctionMAX FX10 socket incorporates grounding plates and metal fittings that improve transmission and mechanical retention on the PCB, contributing to overall robustness and signal integrity. The straight orientation ensures a compact footprint and easy installation on surface mount PCBs.

Features a solder termination type for reliable electrical connection. Liquid Crystal Polymer housing material provides robust mechanical and thermal properties. Supports currents up to 300 mA and voltage rating of 50 V.

Contact material is bronze with gold plating for excellent conductivity and durability. Operating temperature range from -55°C to 85°C ensures suitability for a range of environments. Stacking height of 4 mm suits multi-board high-density arrangements.

Grounding plates on both sides and metal fittings improve signal integrity and PCB retention. 10:1 signal to ground ratio reduces crosstalk and stabilizes grounding. Applications include medical, industrial controls, servers, and telecommunication equipment.

The FunctionMAX FX10 series connectors are designed to meet demanding industrial market requirements, providing high-speed transmission capabilities exceeding 15 Gbit/s and maximum functionality in compact PCB stacking scenarios.

Explore more high-performance PCB connectors and sockets available at EnvMart for your industrial and laboratory electronics needs.
