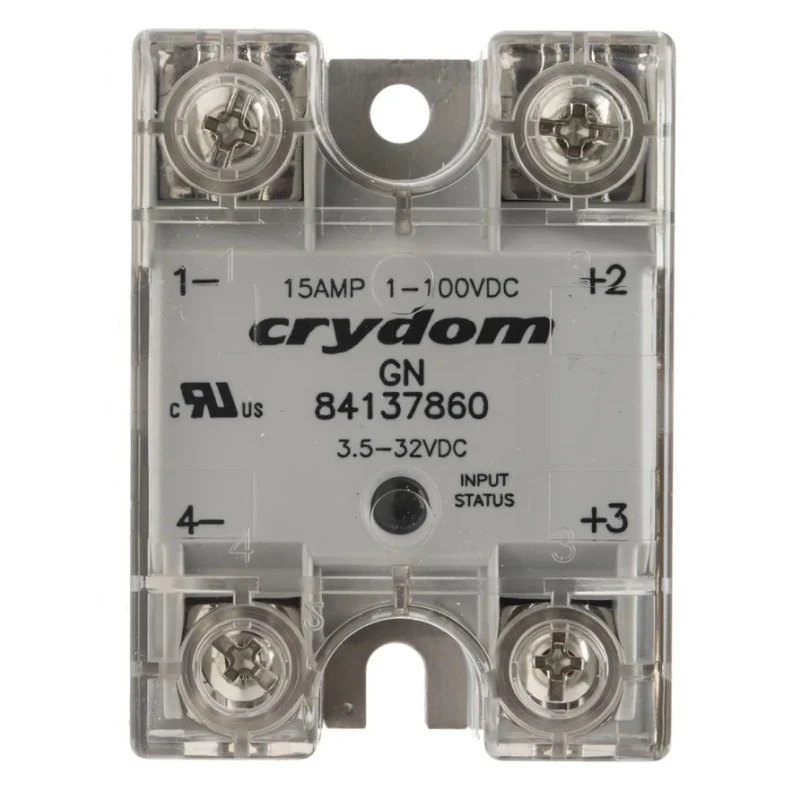

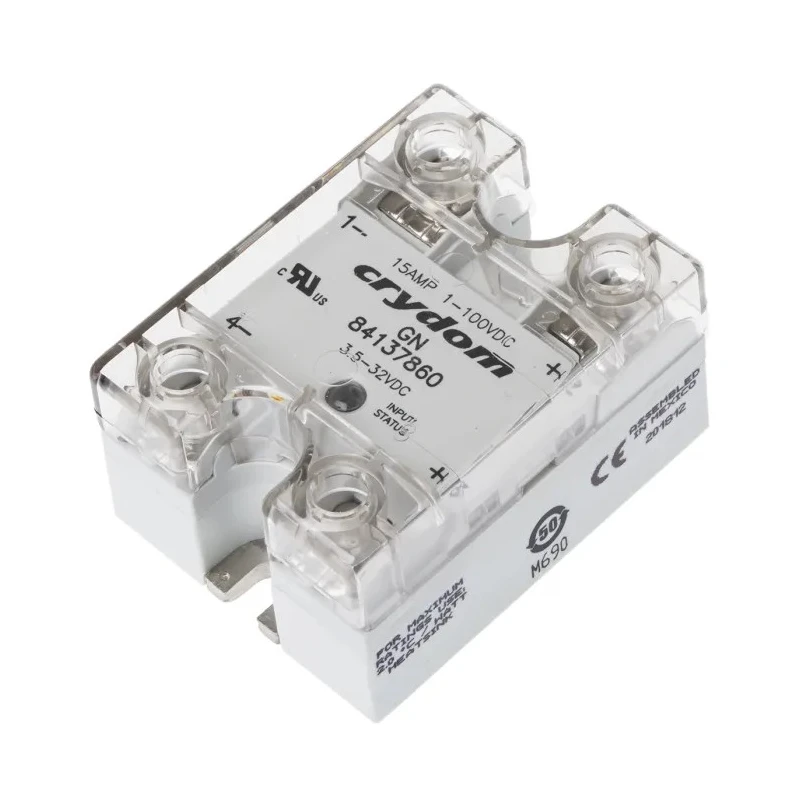

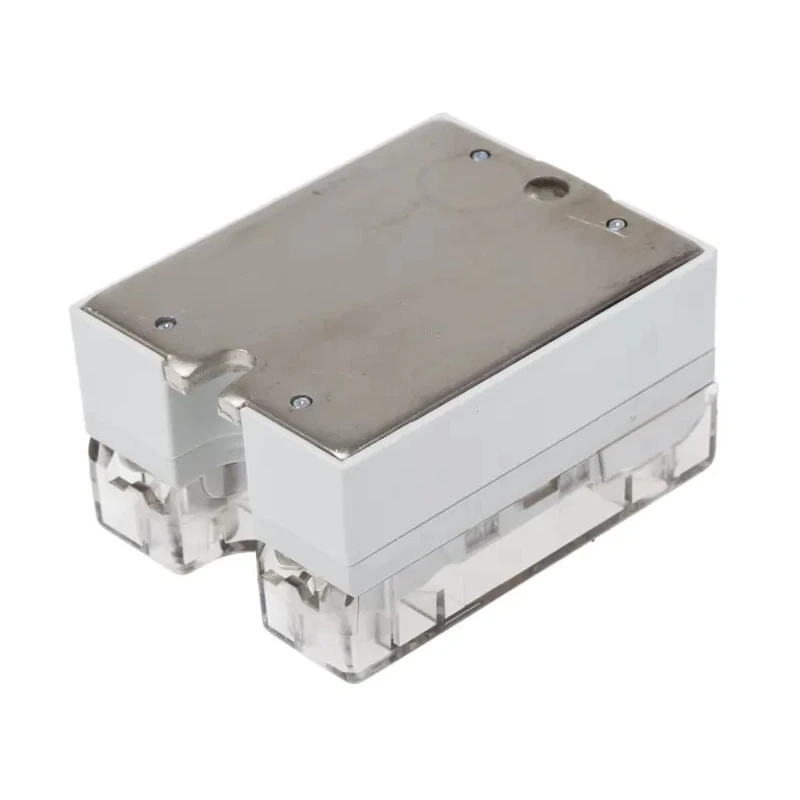

Crydom GN Series Solid State Relay 15 A Load Panel Mount 100V DC Load 32V DC Control 84137860
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 57.3mm |
| Length | 44.5mm |
| Model | 84137860 |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | GN |
| Maximum Operating Temperature | 100°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn-On Switching |
| Maximum Load Current | 15A |
| Standards/Approvals | CE, RoHS |
| Maximum Load Voltage | 100V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 5V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mArms |
| Crouzet Solid State Relay, 15 A Load, Panel Mount, 100 V Load, 32 V ControlBrand | Crouzet |
Key Features
- Maximum load current of 15 amperes ensures efficient power handling.
- Designed for panel mounting with a screw terminal type for secure connections.
- Operates at a maximum load voltage of 100 V DC for DC load applications.
- Control voltage range from 5 V DC minimum up to 32 V DC maximum.
- Employs zero voltage turn-on switching function for reduced electrical noise.
- Robust operating temperature range from -40°C to 100°C enhances durability.
- Compact dimensions measuring 44.5 mm length and 57.3 mm height for space-saving installation.
- Low off state leakage current of 0.1 mArms to reduce power loss.
Product Description
Crydom 84137860 is a GN Series solid state relay designed for panel mounting with a maximum load current rating of 15 amperes and capable of handling up to 100 V DC load voltage. It features a 32 V DC control voltage, making it suitable for industrial control, automation, HVAC, and manufacturing applications that require efficient, reliable, and silent switching of DC loads.
This relay employs zero voltage turn-on switching function which minimizes electrical noise and enhances the longevity of connected equipment. The relay includes advanced MOSFET output type technology, delivering quick response and durable switching capability.
Engineered for harsh environments, it operates reliably across a broad temperature range from -40°C to 100°C. Its compact form factor with a length of 44.5 mm and height of 57.3 mm provides space-efficient panel mounting installations. The screw terminal type connection ensures secure wiring and simple replacement or maintenance.
The product meets CE and RoHS standards, affirming compliance with European safety and environmental directives. The low off state leakage current of 0.1 mArms minimizes energy loss when the relay is switched off.
Maximum load current of 15 amperes. Panel mount type with screw terminals for easy installation. Wide control voltage range from 5 V DC minimum to 32 V DC maximum. Zero voltage turn-on switching function reduces noise. Operating temperature range from -40°C to 100°C for reliable performance.
Compact size with 44.5 mm length and 57.3 mm height. MOSFET output type for enhanced switching. Low leakage current of 0.1 mArms. CE and RoHS certified.
This solid state relay is ideal for applications in electrical panels, industrial automation, process control, and other environments requiring high reliability and stable load switching performance. It is an essential component for reducing mechanical wear and achieving silent, efficient switching in DC load circuits.
Explore more Solid State Relays and related relay solutions on EnvMart for a wide variety of industrial automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 15 amperes.
It operates with a control voltage range from 5 V DC to 32 V DC.
This relay can handle a maximum load voltage of 100 V DC.
It employs a zero voltage turn-on switching function, which reduces electrical noise.
The dimensions are 44.5 mm in length and 57.3 mm in height.
The operating temperature range is from -40°C to 100°C.
It uses screw terminals for secure connections.
This model utilizes MOSFET output type technology.
The off state leakage current is 0.1 mArms, which helps minimize power loss.
It meets CE and RoHS standards, ensuring compliance with European safety and environmental directives.
It is suitable for industrial control, automation, HVAC, and manufacturing applications that require efficient switching of DC loads.
The country of origin for this model is India.
