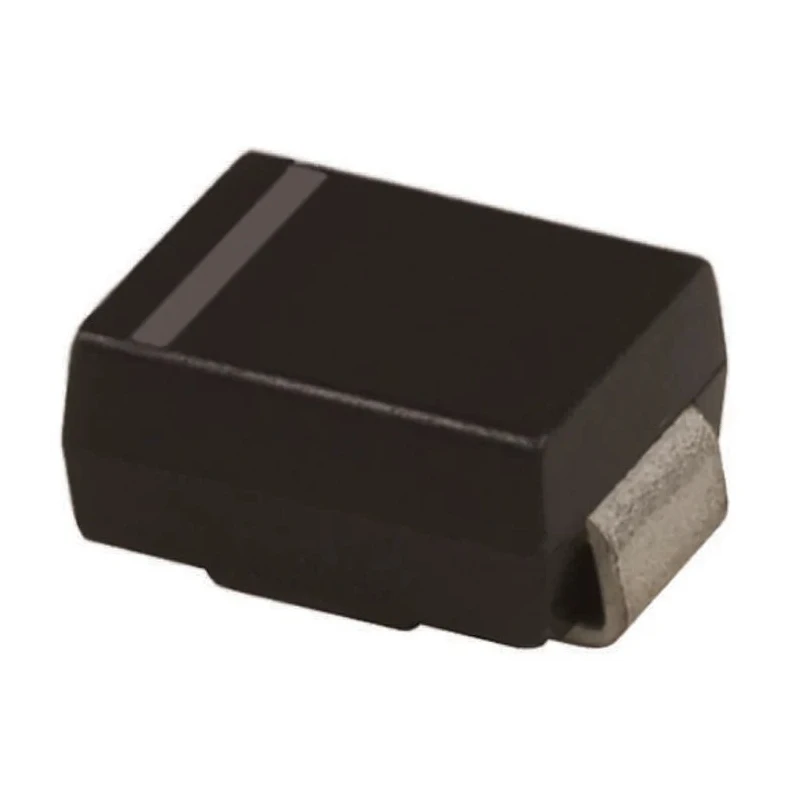

STMicroelectronics 200 V 4 A Surface Mount Switching Diode DO-214AA STTH4R02U

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 200 V 4 A Surface Mount Switching Diode DO-214AA STTH4R02U

Name: STMicroelectronics 200 V 4 A Surface Mount Switching Diode DO-214AA STTH4R02U
Brand: STMicroelectronics
SKU: 150116
Price: 0.23 USD
Availability: InStock



Category Switching Diodes Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STTH4R02U
Width	3.95mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	4A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	3μA
Peak Non-Repetitive Forward Surge Current Ifsm	70A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	30ns

Key Features

Designed for surface mount applications with a compact 2-pin configuration.
Maximum continuous forward current of 4 amperes ensures reliable conduction.
Peak reverse repetitive voltage rated at 200 volts for robust reverse voltage handling.
Ultra-fast switching capability with peak reverse recovery time of 30 nanoseconds.
Single diode configuration suitable for rectifier and switching uses.
Wide operating temperature range from −65°C to 175°C.
Low forward voltage drop of 1.25 volts enhances efficiency.
High surge current tolerance of 70 amperes for transient conditions.

Product Description

STMicroelectronics STTH4R02U is a high-performance switching diode featuring a peak reverse repetitive voltage of 200 V and a continuous forward current rating of 4 A. Packaged in the space-efficient DO-214AA surface mount format with 2 pins, this diode is designed for robust power management and switching applications.

The diode offers ultra-fast switching capabilities with a peak reverse recovery time of only 30 nanoseconds, making it ideal for high-frequency circuits. Its single diode configuration supports a variety of rectification and switching tasks in industrial electronic systems.

Operating across a wide temperature spectrum from -65°C up to 175°C, the STTH4R02U is reliable in demanding environments. It operates with a low forward voltage drop of 1.25 V, helping to reduce power losses and improve efficiency. The diode can withstand surge currents up to 70 A, ensuring robustness during transient surges.

Its compact size with dimensions approximately 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height allows effective PCB space utilization. Although it does not conform to automotive standards, it is well suited for industrial, consumer electronics, and power supply designs requiring efficient diode switching components.

Designed for surface mount applications with a compact 2-pin configuration. Maximum continuous forward current of 4 amperes ensures reliable conduction. Peak reverse repetitive voltage rated at 200 volts for robust reverse voltage handling.

Ultra-fast switching capability with peak reverse recovery time of 30 nanoseconds. Single diode configuration suitable for rectifier and switching uses. Wide operating temperature range from −65°C to 175°C. Low forward voltage drop of 1.25 volts enhances efficiency.

High surge current tolerance of 70 amperes for transient conditions. Compact dimensions contribute to space-saving PCB layouts. Non-automotive standard without additional certifications.

This switching diode is commonly used in industrial power electronics, telecommunications, consumer electronics, and other applications requiring reliable switching diodes. For additional technical resources, datasheets and design files are available from STMicroelectronics official channels.

Explore more semiconductor components and Switching Diodes in the Electronics & Electricals category at EnvMart for comprehensive solutions.
