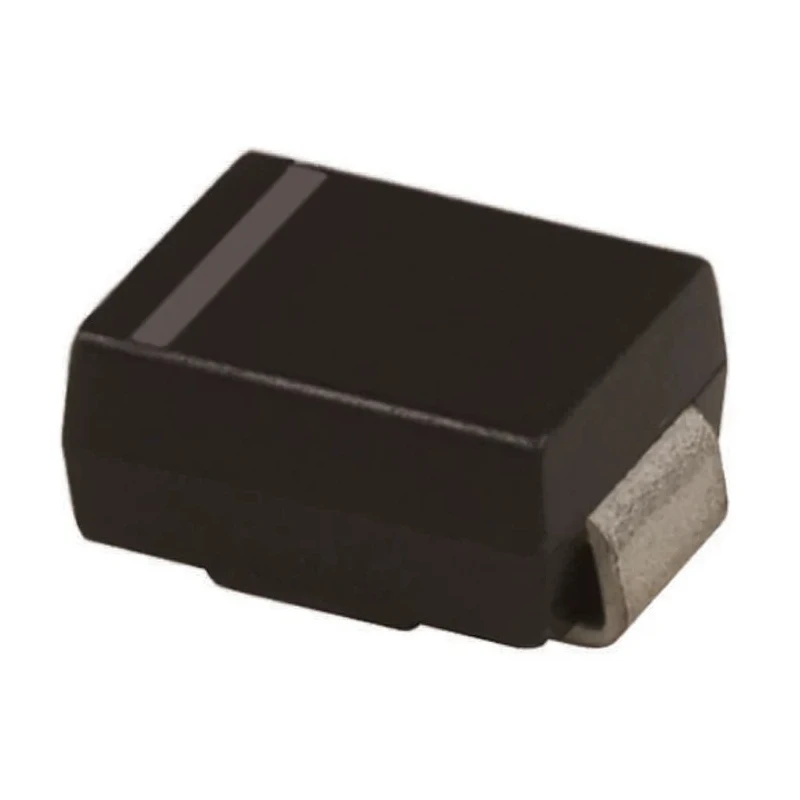

STMicroelectronics 600 V 3 A Surface Mount Switching Diode DO-214AA STTH3R06U

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 600 V 3 A Surface Mount Switching Diode DO-214AA STTH3R06U

Name: STMicroelectronics 600 V 3 A Surface Mount Switching Diode DO-214AA STTH3R06U
Brand: STMicroelectronics
SKU: 150099
Price: 0.3 USD
Availability: InStock



Category Switching Diodes Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STTH3R06U
Width	3.95mm
Mount Type	Surface
Series	STTH3R06
Maximum Operating Temperature	175°C
Package Type	DO-214AA
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	3μA
Peak Non-Repetitive Forward Surge Current Ifsm	45A
Maximum Forward Voltage Vf	1.7V
Peak Reverse Recovery Time trr	30ns

Key Features

The diode has a maximum continuous forward current of 3 amperes.
It supports peak reverse repetitive voltage up to 600 volts.
Featuring a fast peak reverse recovery time of 30 nanoseconds.
Operates reliably between temperatures of -65°C to 175°C.
It is RoHS compliant, ensuring environmental safety.
The diode has a height of 2.45 mm and length of 4.6 mm for compact PCB footprint.
Designed as a single diode configuration for switching applications.
The maximum forward voltage is 1.7 volts under rated conditions.

Product Description

STMicroelectronics STTH3R06U is a high-performance, surface mount switching diode housed in a compact DO-214AA package suitable for modern electronic designs. This diode offers robust electrical characteristics, supporting a maximum continuous forward current of 3 A and a peak reverse voltage of 600 V. Its fast switching capability is highlighted by a peak reverse recovery time of just 30 nanoseconds, making it ideal for power switching, rectification, and protection circuits.

Designed to withstand wide temperature ranges from -65°C to 175°C, the STTH3R06U ensures reliability in harsh industrial and commercial environments. The device's small physical dimensions - 2.45 mm height, 4.6 mm length, and 3.95 mm width - facilitate space-saving surface mount layouts on printed circuit boards (PCB).

The diode configuration is single, with two pins, tailored for standard switching applications requiring fast and efficient rectification or signal protection. It complies with RoHS standards, assuring environmental compliance for manufacturing and reuse operations.

The diode is suited for use in power management, industrial automation, and electronic equipment manufacturing. Its peak non-repetitive forward surge current of 45 A provides robustness against transient electrical stresses.

Applications include power supplies, inverters, and switching regulators across electronics, industrial machinery, and automotive sectors. Overall, STMicroelectronics STTH3R06U offers a reliable, compact, and efficient solution for switching diode requirements in various electronic and industrial applications.

Explore more semiconductor devices and Switching Diodes in the EnvMart catalog for your precise power management needs.
