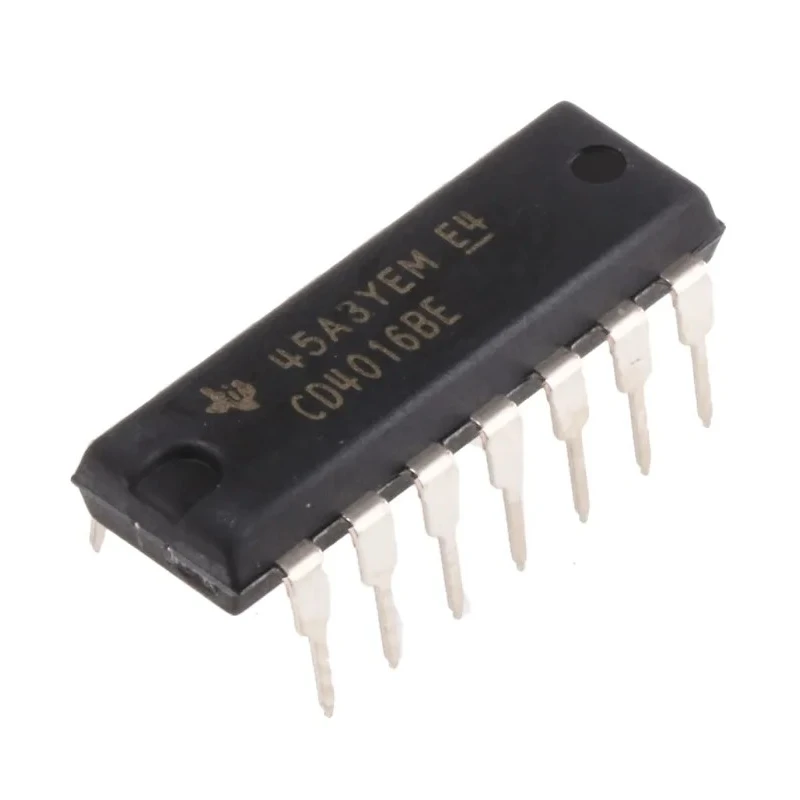

Texas Instruments Analogue Switch 4 CMOS Quad SPST 14-Pin PDIP CD4016BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4016BE |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | CD4016B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 18V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Wide operating voltage range | 3 to 18V |
Key Features
- The device operates with a minimum supply voltage of 5V and a maximum of 18V.
- It features a Quad SPST configuration with 4 elements per chip.
- The 14-pin PDIP package ensures easy through-hole mounting on printed circuit boards.
- Its wide operating temperature range of -55°C to 125°C enables reliability in harsh environments.
- This CMOS-based switch supports standard 4000 Series logic family compatibility.
Product Description
Texas Instruments CD4016BE Analogue Switch is a 4 CMOS Quad SPST device housed in a 14-Pin PDIP package designed for reliable analog signal switching applications. Operating across a wide voltage range of 3V to 18V and a supply voltage range from 5V minimum to 18V maximum, this chip ensures versatility in diverse circuits.
The CD4016BE belongs to the 4000 Series CMOS Logic Family, renowned for low power consumption and high noise immunity. Its Quad SPST configuration allows four single-pole, single-throw switches integrated within a single package, ideal for multiplexing and demultiplexing signals in electronic systems.
The component supports through-hole mounting with its 14-pin PDIP housing, measuring 19.3mm in length, 6.35mm in width, and 4.57mm in height, making it compatible with standard PCB layouts.
Designed to operate in ambient temperatures ranging from -55°C to 125°C, the CD4016BE is suitable for industrial, laboratory, and commercial electronics applications requiring robust performance in variable environmental conditions.
This device complies with RoHS standards and is not designed with automotive-specific standards, making it tailored for general-purpose electronic uses. The device operates with a minimum supply voltage of 5V and a maximum of 18V.
It features a Quad SPST configuration with 4 elements per chip, enabling multiple switching paths. The 14-pin PDIP package ensures compatibility with through-hole assembly on PCBs. Wide temperature tolerance from -55°C to 125°C enhances durability in diverse conditions.
Belongs to the widely used 4000 Series CMOS logic family from Texas Instruments.
This analogue switch IC is commonly utilized in laboratory instruments, industrial automation, signal multiplexing tasks, and a variety of electronics projects requiring precise and reliable analog switching.
Explore extensive electronic components and semiconductor ICs at EnvMart for your design and manufacturing needs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
