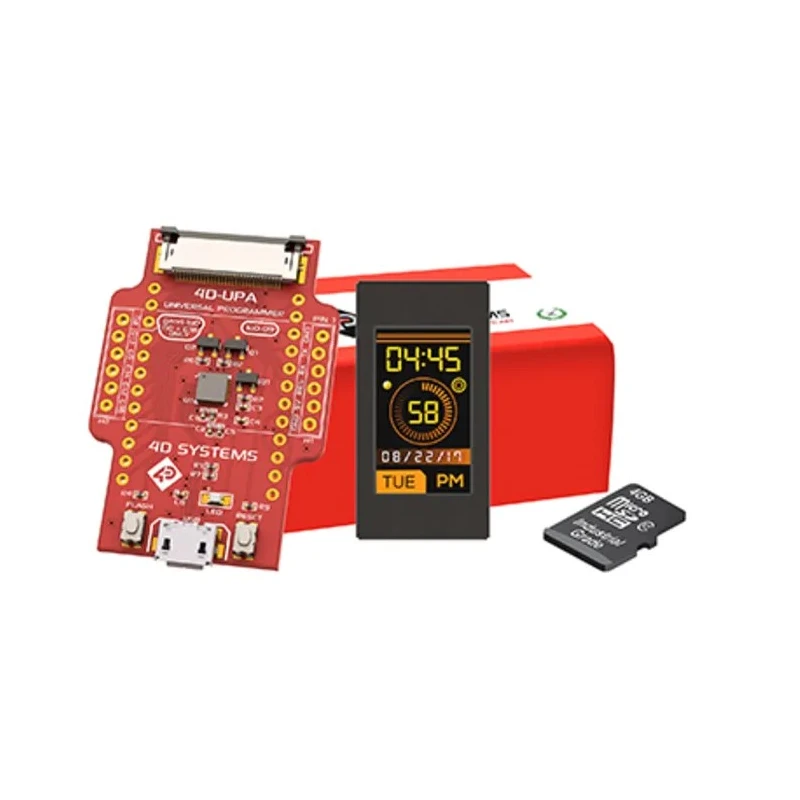

4D Systems IoD Series LCD Colour Display Starter Kit 22.86 mm, 80 x 160 Pixel SK-IoD-09TH

4D Systems SK-IoD-09TH LCD Colour Display Starter Kit is a miniature intelligent TFT LCD module with a 22.86 mm (0.9 inch) diagonal display size and 80 x 160 pixel resolution. It features a vibrant RGB 65K color TFT screen backed by an LED backlight, delivering clear and vivid image quality with a brightness of 180 cd/m² and a contrast ratio of 500:1. The 12-pin interface and onboard microSD card slot allow for expanded functionality and flexible storage options.

The module is powered by the Espressif ESP8266 SoC, enabling WiFi 802.11 b/g/n/e/i connectivity. This makes it highly suitable for IoT based and embedded applications requiring wireless communication integrated with graphical display capabilities. The device operates on a stable 5.5V DC supply and withstands operating temperatures from -20°C up to 70°C, making it robust for industrial and outdoor use.

With compact dimensions of 31.8 mm width, 16.4 mm height, and 11.52 mm depth, and a viewing area of 20 x 12 mm, it fits efficiently into space-constrained designs. The IoD-09 series is programmable using the 4D Systems Workshop4 IDE or Arduino IDE with ESP8266 core, facilitating rapid development cycles. The comprehensive 4D Systems GFX4dIoD09 library provides advanced graphical primitives, enhanced graphics support, and SD card interface functionality.

This starter kit is CE certified, adhering to European compliance standards. The combined hardware and software features enable designers and integrators to create sophisticated human-machine interfaces, instrumentation displays, and interactive graphical devices with ease.

Typical applications include industrial control panels, embedded system interfaces, IoT devices, portable instrumentation, and custom display solutions across commercial, laboratory, and manufacturing domains.

This starter kit includes a 0.9 inch full-color TFT LCD with RGB 65K true-to-life colors. Powered by the ESP8266 WiFi enabled SoC for integrated connectivity and programmability. It features a 12-pin interface and an onboard microSD memory card connector for additional storage.

The display brightness is 180 cd/m² with a contrast ratio of 500:1 ensuring clear visuals. Powered by a 5.5V DC supply, it operates reliably from -20°C up to 70°C. The compact module measures 31.8 mm width, 16.4 mm height, and 11.52 mm depth with a viewing area of 20 x 12 mm.

The backlight uses energy-efficient LED technology for consistent illumination. CE certified ensuring compliance with relevant standards. Ideal for embedded system design, IoT projects, and rapid graphical interface prototyping.
