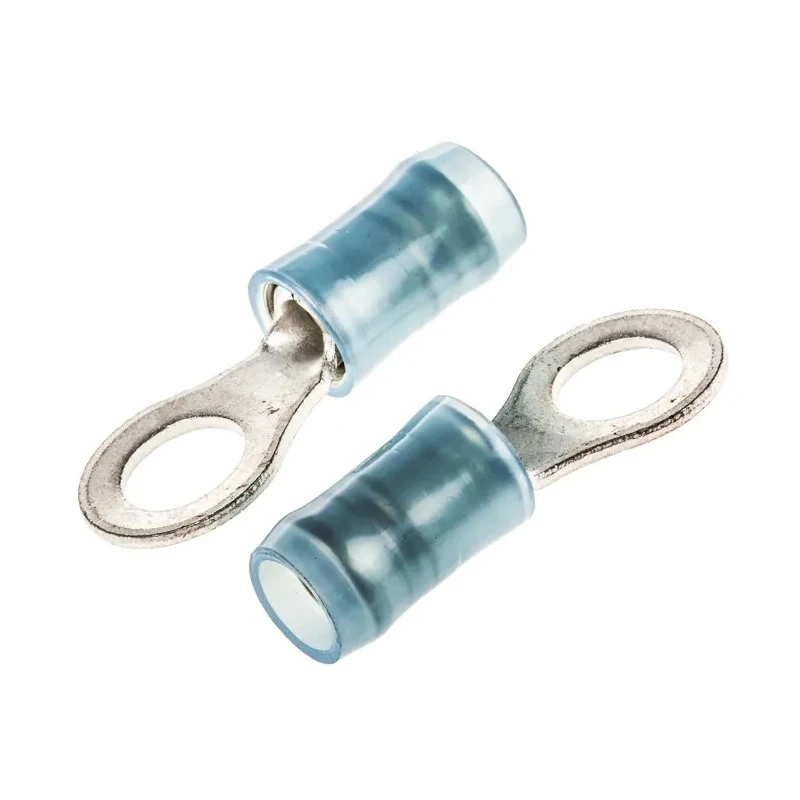

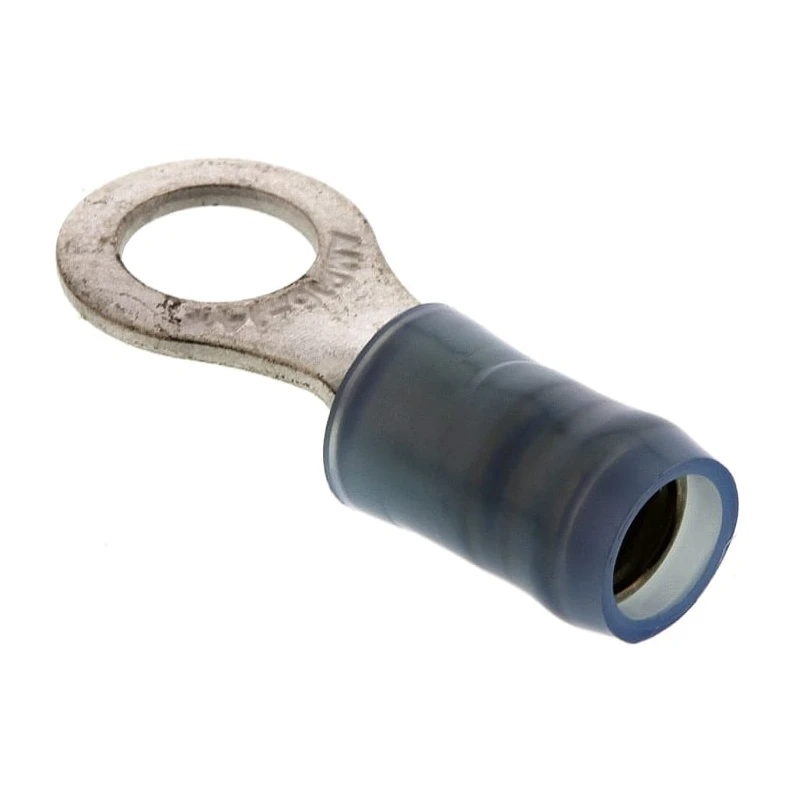

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Blue 130090
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 130090 |
| Insulation | Insulated |
| Overall Length | 21.6mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 150°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- The ring terminal features a high conductivity copper body for excellent electrical performance.
- Nylon insulation sleeve ensures wire insulation support and prevents fraying.
- Serrated wire barrel allows maximum contact and tensile strength after crimping.
- Blue color code facilitates quick wire size identification.
- Suitable for wire sizes from 16 AWG to 14 AWG with a stud size of M5.
- Overall length of the terminal is 21.6 mm for secure connections.
- Contact plating uses tin for corrosion resistance and improved conductivity.
- Designed to operate safely up to 150°C maximum temperature.
Product Description
TE Connectivity 130090 PIDG Insulated Ring Terminal combines precision engineering with high-quality materials for secure and reliable wire terminations. Featuring a high conductivity copper body with tin plating, this ring terminal ensures excellent conductivity and corrosion resistance in demanding environments.
The terminal is insulated with a durable nylon sleeve, color-coded blue to facilitate fast and accurate wire size identification. The barrel incorporates serrations for maximum contact and tensile strength during crimping, and a copper sleeve reinforces wire insulation and prevents strand fraying.
With an overall length of 21.6 mm, an outer ring diameter of 8.71 mm, and an inner ring diameter of 5 mm, this terminal supports wire sizes ranging from 16 AWG (minimum) to 14 AWG (maximum) with a stud size of M5. It maintains reliable operation up to 150°C, making it suitable for a variety of industrial and electronic applications.
These PIDG ring terminals are engineered to meet or exceed stringent standards like MIL-T-7928, Type II, Class 1 and 2. Typical uses include instrumentation, lighting systems, power supplies, control panels, automotive wiring, aerospace systems, and appliances.
The ring terminal features a high conductivity copper body for excellent electrical performance. Nylon insulation sleeve ensures wire insulation support and prevents fraying. Serrated wire barrel allows maximum contact and tensile strength after crimping.
Blue color code facilitates quick wire size identification. Suitable for wire sizes from 16 AWG to 14 AWG with a stud size of M5. Overall length of the terminal is 21.6 mm for secure connections. Contact plating uses tin for corrosion resistance and improved conductivity.
Designed to operate safely up to 150°C maximum temperature. Perfect for industrial, aerospace, automotive, control panels, and power supply applications.
Choose TE Connectivity 130090 PIDG Ring Terminal for consistent, high-quality wire connections to meet demanding electrical and industrial needs. Explore more components and solutions for your electronics projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ring terminal is 150°C.
This terminal is suitable for wire sizes ranging from 16 AWG (1 mm²) to 14 AWG (2.6 mm²).
The overall length of the terminal is 21.6 mm.
The terminal features a high conductivity copper body with tin plating and is insulated with a nylon sleeve.
The stud size for this ring terminal is M5.
The nylon insulation sleeve ensures wire insulation support and prevents fraying, enhancing connection reliability.
The outer ring diameter is 8.71 mm and the inner ring diameter is 5 mm.
This terminal is designed for use in instrumentation, lighting systems, power supplies, control panels, automotive wiring, aerospace systems, and appliances.
The serrated wire barrel allows maximum contact and tensile strength after crimping.
The country of origin for this terminal is Hungary.
This terminal is engineered to meet or exceed standards like MIL-T-7928, Type II, Class 1 and 2.
The terminal is color-coded blue to facilitate fast and accurate wire size identification.
