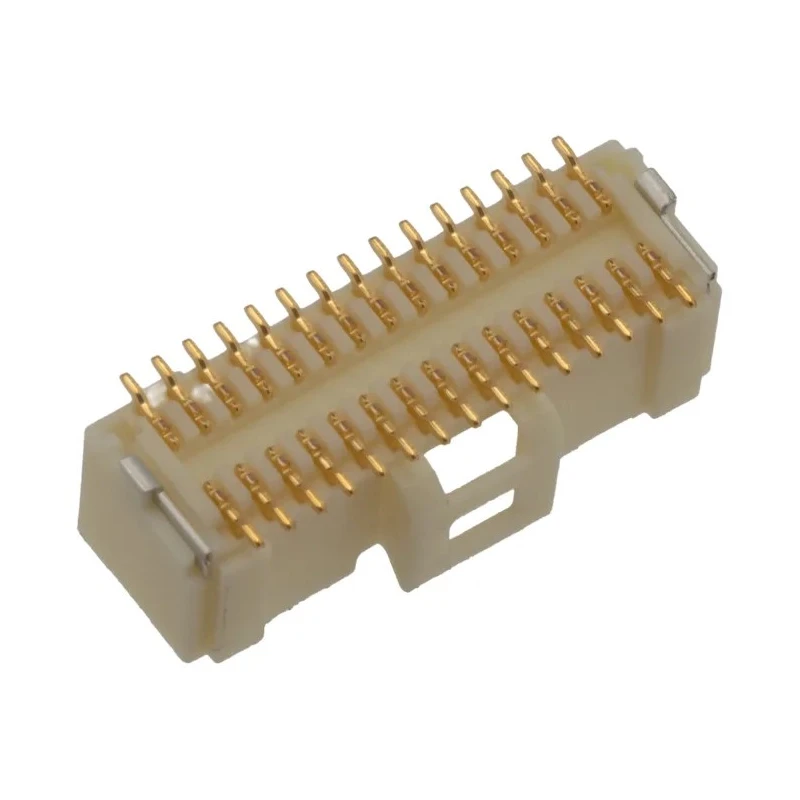

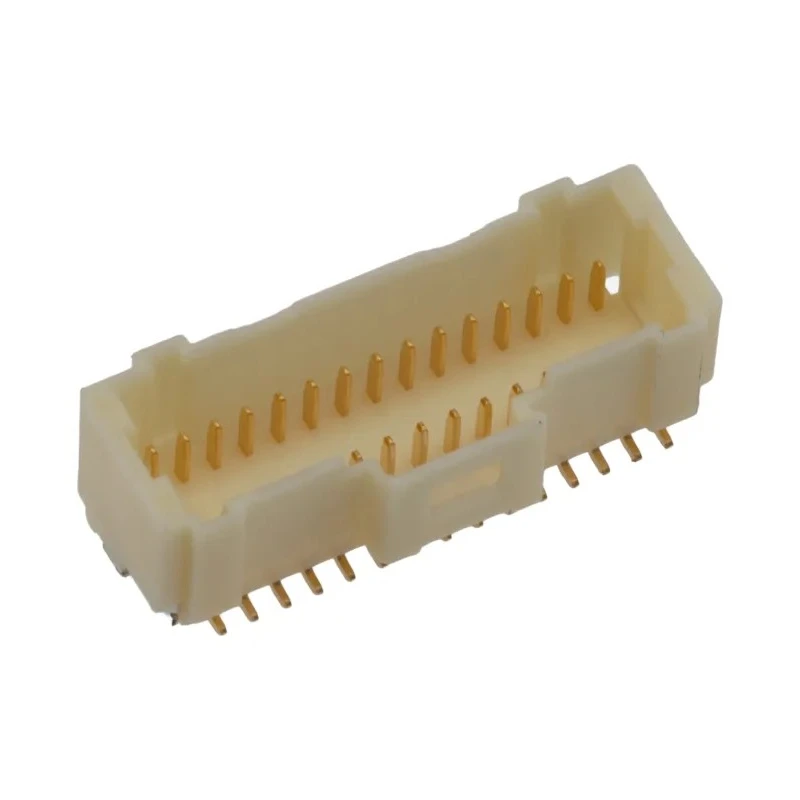

Molex Pico-Clasp Series Straight Surface PCB Header, 30 Contact, 1 mm Pitch, 2 Row, Shrouded 501190-3017

Molex 501190-3017 is a Pico-Clasp Series straight surface PCB header connector featuring 30 male contacts arranged in 2 rows with a 1 mm pitch. Its shrouded nylon housing is UL 94V-0 rated, ensuring flame retardant properties and mechanical resilience. The connector uses phosphor bronze contacts with gold plating, delivering excellent conductivity and corrosion resistance, suitable for high-reliability electronic applications.

Designed for wire-to-board mounting, it supports a current rating of 1A at 50V, facilitating power and signal transmission in compact electronic devices. Operating temperature ranges from -40°C to 105°C, allowing use in a variety of industrial and commercial environments.

The positive lock internal mechanism and molded guides ensure secure polarization and reliable engagement for mating connectors. This connector is ideal for applications such as flat panel displays, notebook PCs, and other compact devices requiring high-density connections.

The Pico-Clasp system is the smallest on the market with positive lock, supporting 2-15 circuit single row and 20, 30, and 40 circuit double row variants. This product is made in Japan, complying with standards including EU RoHS, Low-Halogen, REACH SVHC, and UL E29179.

Durable nylon housing rated UL 94V-0 with shrouded design for secure mating. Gold-plated phosphor bronze contacts provide high conductivity and corrosion resistance. Supports 1A current and 50V voltage rating for power and signal applications.

Operates reliably between -40°C and 105°C in demanding environments. Wire-to-board surface mount design simplifies PCB integration. Positive lock and keyed polarization prevent misconnection. Applications include flat panel displays and compact electronic devices.
