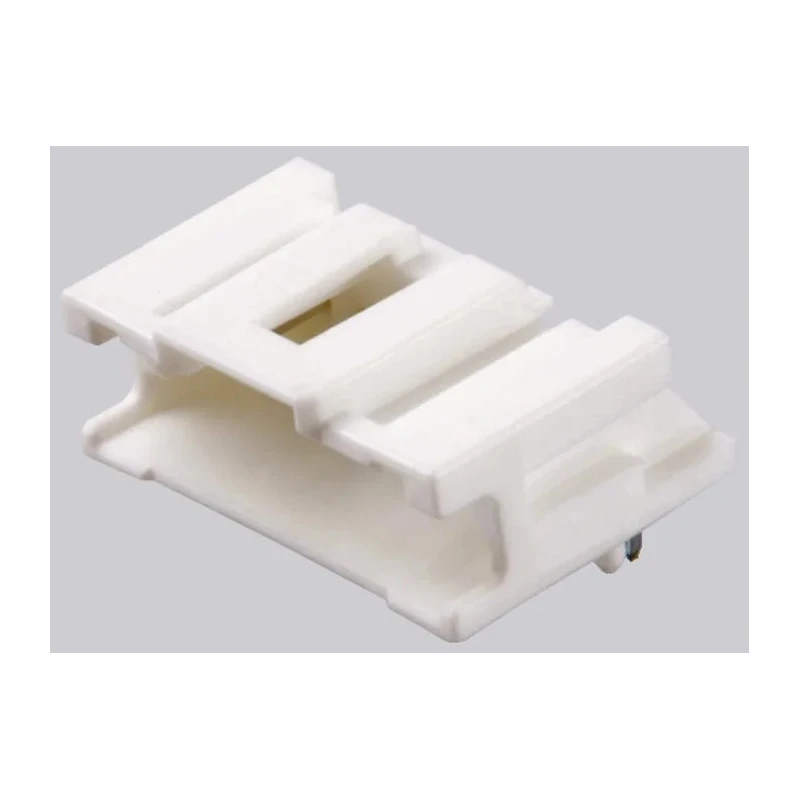

Molex MicroClasp Series Right Angle Through Hole PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded 55935-0610

Molex 55935-0610 MicroClasp Series Right Angle Through Hole PCB Header is a precision-engineered electronic connector designed for use in circuit boards requiring reliable and space-saving wire-to-board connections. This shrouded, single-row right angle header features 6 contacts with a 2 mm pitch, providing secure and efficient connectivity for electronic devices and industrial applications.

The MicroClasp™ range uniquely integrates a positive inner lock mechanism that provides latch protection, secure retention, and an audible mating click to confirm proper connection. Its terminal design allows for low insertion and withdrawal forces, facilitating assembly and maintenance operations.

The header supports a current carrying capacity of up to 3 Amperes, with tin-plated contact materials to ensure reliability and corrosion resistance. It is built with a durable polyester housing for enhanced mechanical stability and electrical insulation, able to operate within a temperature range from -40°C to 105°C.

Mounting is through hole type with a solder termination and tail pin length of 3.2 mm, suitable for standard PCB assembly processes. The compact 2.00 mm pitch wire-to-board system allows for significant PCB space savings while maintaining performance.

This Molex connector is manufactured in Japan, reflecting stringent quality controls typical of Molex products. It is ideal for industrial, laboratory, commercial, and manufacturing electronics projects requiring robust PCB headers with reliable mechanical and electrical specifications.

Single row, right angle through hole PCB header design with 6 contacts. MicroClasp™ inner positive lock for secure mating and retention. 3A current capacity with tin-plated male contacts. Polyester housing provides durability and mechanical stability.

Operating temperature range from -40°C to 105°C ensures wide application suitability. Termination with solder tail pins of 3.2 mm supports reliable PCB assembly. Compact 2.00 mm pitch wire-to-board connector system saves board space.

Manufactured in Japan adhering to high product quality standards. Explore Molex products and find more PCB Headers suited for your electronic applications on EnvMart.
