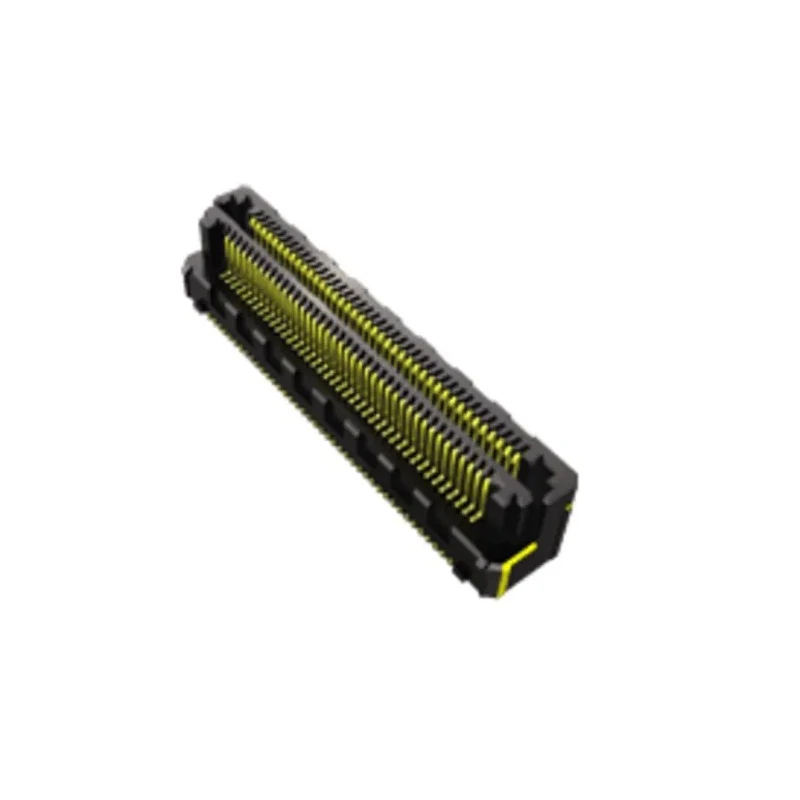

Samtec LSHM Series Straight Surface PCB Header 40 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-120-02.5-F-DV-A-S-K-TR

Samtec LSHM-120-02.5-F-DV-A-S-K-TR is a state-of-the-art PCB header designed for high-density electronic assemblies requiring precision and durability. Featuring 40 contacts with a 0.5 mm pitch, this straight surface mount connector is ideal for board-to-board connections in complex electronic devices.

The housing is crafted from liquid crystal polymer, ensuring high thermal stability and resistance to mechanical stress, suitable for industrial and commercial electronic applications. Contacts are made from phosphor bronze and plated with gold to deliver excellent electrical conductivity and corrosion resistance, ensuring long-term reliability.

This PCB header operates safely up to 160 volts and supports a current rating of 2 amperes, with an operating temperature range from -55°C to 125°C, making it suitable for demanding environmental conditions in industrial controls, telecommunications, and computing equipment.

The shrouded design provides additional protection against damage and ensures proper alignment during mating. The self-mating feature reduces inventory needs by allowing a single part to serve multiple functions, enhancing manufacturing efficiency.

Its robust mating and unmating forces, approximately 4 to 6 times stronger than typical micro-pitch connectors, guarantee a secure connection in vibration-prone environments. Compatible with parallel, perpendicular, and coplanar mounting systems, the LSHM series offers versatility for various PCB layouts.

This PCB header features a straight surface mount design for easy integration. It has 40 male contacts arranged in 2 rows for robust connectivity. The contact material is phosphor bronze with gold plating for durability and conductivity.

Housing is made of liquid crystal polymer, providing excellent thermal and mechanical stability. Rated for 2A current and 160V voltage, suitable for various electronic applications. Operating temperature ranges from -55°C to 125°C to handle demanding environments.

Shrouded construction ensures reliable connection and protection from damage. Mating and unmating forces are approximately 4-6 times greater than typical micro pitch connectors for secure fit. Compatible with parallel, perpendicular, and coplanar systems, enabling versatile PCB design options.

Self-mating system reduces inventory cost and simplifies assembly processes.

The LSHM series from Samtec is well-suited for use in industrial manufacturing, telecommunications, computing hardware, and high-reliability electronic equipment. Its performance and robustness meet the needs of demanding industrial and commercial applications.

Explore the full range of PCB Headers and connectors available on EnvMart to find compatible parts and accessories to complete your electronic assembly projects.
