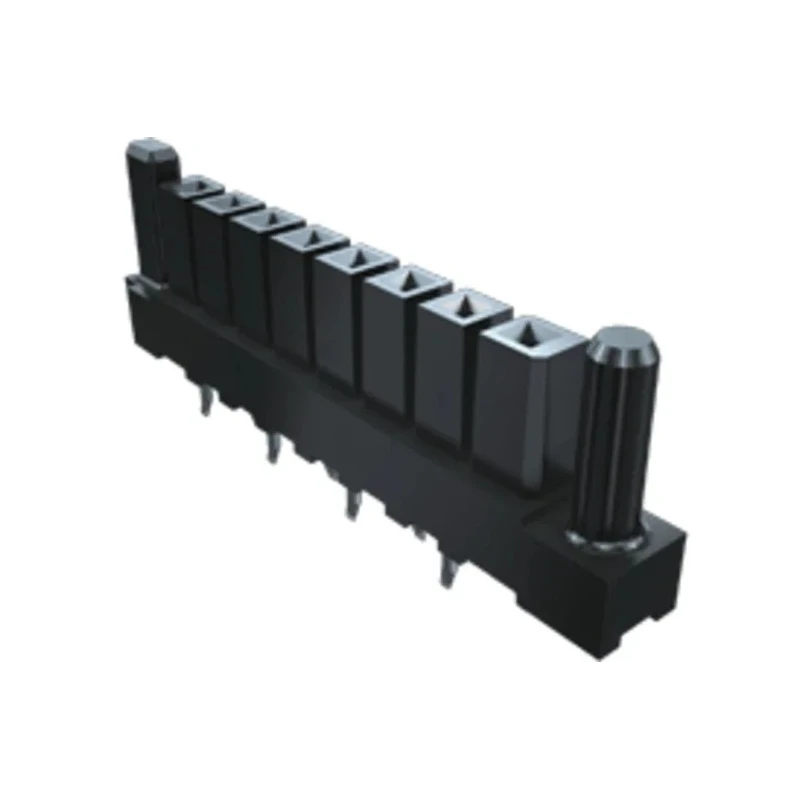

Samtec IPBS Series Straight Through Hole PCB Socket 20-Contact 2 Row 4.19 mm Pitch Solder IPBS-110-01-T-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 565V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.3A |
| Model | IPBS-110-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | IPBS |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.19mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features 20 contacts arranged in 2 rows for reliable electrical connections.
- Offers a pitch of 4.19 mm suitable for precise PCB layouts.
- Supports currents up to 5.3 A at 75°C ensuring robust power handling.
- Constructed with liquid crystal polymer housing for durable performance.
- Compatible with board-to-board connector systems with straight orientation.
- Contact material is bronze with tin plating for corrosion resistance.
- Designed for a voltage rating of 565 V, suitable for industrial applications.
- Operates efficiently between -55°C to 105°C for wide temperature ranges.
Product Description
Samtec IPBS-110-01-T-D is a high-quality PCB socket from the IPBS Series designed for straight through-hole mounting applications. This PCB socket features 20 female contacts arranged in 2 rows with a pitch of 4.19 mm, making it ideal for board-to-board connections in various industrial and electronic assemblies.
The connector supports a continuous current rating of 5.3 A at 75°C and a voltage rating up to 565 V, ensuring reliable electrical performance under demanding conditions. The housing is constructed from liquid crystal polymer, providing excellent mechanical strength and thermal stability across a broad temperature range from -55°C to 105°C. Bronze contact materials plated with tin enhance corrosion resistance and ensure long-lasting contact integrity.
The connector system is specifically designed for PCB sockets with a straight orientation and solder termination via through-hole technology, ensuring secure board mounting. The product meets RoHS compliance standards, reflecting its adherence to environmental and safety regulations. Manufactured in the United States, this component is suitable for various applications within electronics manufacturing, industrial equipment, and power distribution systems.
Features 20 contacts arranged in 2 rows for reliable electrical connections. Offers a pitch of 4.19 mm suitable for precise PCB layouts. Supports currents up to 5.3 A at 75°C ensuring robust power handling. Constructed with liquid crystal polymer housing for durable performance.
Compatible with board-to-board connector systems with straight orientation. Contact material is bronze with tin plating for corrosion resistance. Designed for a voltage rating of 565 V, suitable for industrial applications.
Operates efficiently between -55°C to 105°C for wide temperature ranges. Termination type is solder, providing secure mounting via through-hole technology. Compliant with RoHS standards ensuring environmental safety.
This PCB socket is widely used in electronics components manufacturing, power and connectors assembly, and industrial instrumentation. Samtec's IPBS Series guarantees quality solder mounting components for reliable board-to-board interconnections.
Explore more Samtec PCB Sockets and connectors at EnvMart for comprehensive electronics component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 5.3 A at 75°C, ensuring reliable power handling.
It is designed for a voltage rating of 565 V, making it suitable for industrial applications.
The contacts are arranged with a pitch of 4.19 mm, which is suitable for precise PCB layouts.
The housing is made from liquid crystal polymer, while the contacts are bronze with tin plating for corrosion resistance.
It operates efficiently between -55°C to 105°C, allowing for use in a wide range of environments.
This unit features 20 female contacts arranged in 2 rows.
The termination type is solder, providing secure mounting via through-hole technology.
Yes, it meets RoHS compliance standards, reflecting adherence to environmental and safety regulations.
The contacts are designed for a straight orientation, suitable for board-to-board connections.
This product is manufactured in the United States.
It is compatible with board-to-board connector systems, making it versatile for various applications.
This PCB socket is suitable for electronics manufacturing, industrial equipment, and power distribution systems.
