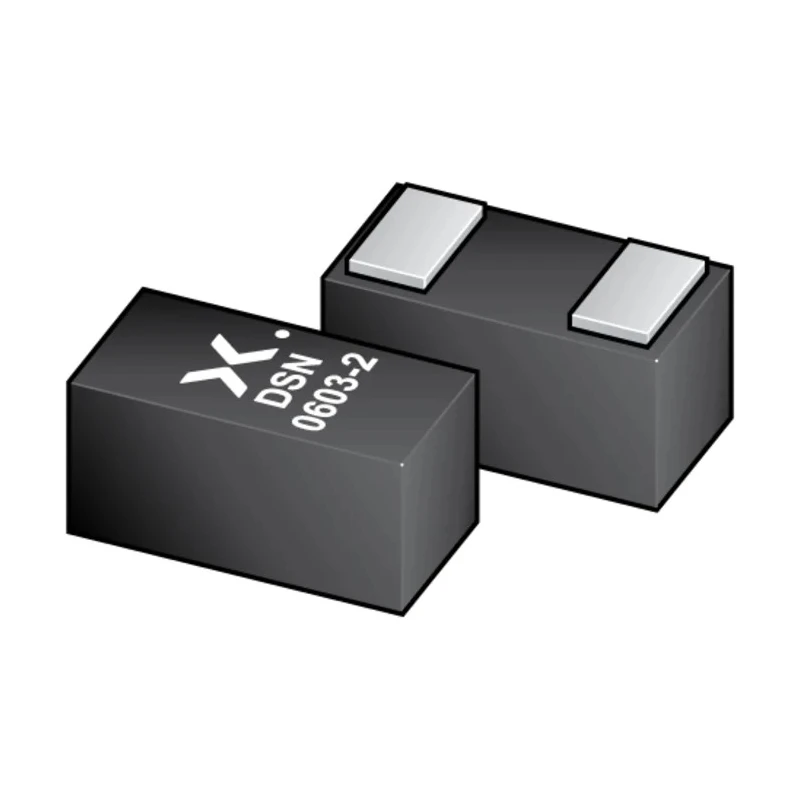

Nexperia Medium Power 30 V 500 mA Surface Mount Schottky Diode DSN-0603 PMEG3005AESFYL

Nexperia PMEG3005AESFYL is a medium power Schottky diode designed to deliver efficient low voltage rectification with a maximum continuous forward current rating of 500 mA and blocking voltage of up to 30 V. This device comes in a tiny DSN-0603 chip-scale package (CSP) measuring 0.6 mm length by 0.3 mm width and height, making it highly suitable for space-conscious designs.

With a low typical forward voltage of 470 mV, the diode minimizes power loss during conduction, improving overall energy efficiency in power conversion applications such as switch mode power supplies and DC/DC converters. Its ultra-fast peak reverse recovery time of 1.37 ns enables rapid switching capabilities, crucial for high-frequency circuits.

The diode is rated to operate within a wide temperature range of -55 °C to 150 °C, ensuring robust performance in various industrial and consumer electronic environments. It supports a peak surge current of 4 A for transient conditions, adding resilience against sudden current spikes.

Designed without automotive qualification, it is optimized for medium power applications requiring compact size and high efficiency such as LED backlighting in mobile devices and battery-powered circuits. The integrated guard ring provides protection against electrical stress and enhances reliability.

The device features two pins and is utilized in an assembly where surface mount technology is preferred for compact and automated PCB assembly processes. Maximum continuous forward current of 500 mA for moderate power handling.

Compact chip-scale DSN-0603 package dimensions (0.6x0.3x0.3 mm). Low forward voltage of 470 mV reducing conduction losses. Fast switching with a peak reverse recovery time of 1.37 ns. Wide operating temperature range from -55 °C to 150 °C.

Peak surge current of 4 A to withstand transient loads. Surface mount with 2-pin configuration for versatile PCB placement. Suitable for DC-DC converters, switch mode power supplies, and LED backlighting. Includes an integrated guard ring for enhanced electrical stress protection.

Not compliant with automotive industry standards.

This Schottky diode meets essential technical requirements for industrial, electronic component manufacturing, consumer electronics, and telecommunications applications. Its high efficiency and small form factor support modern designs demanding power savings and miniaturization.
